Step box 20dB + DC 5-2150 MHz Televes
KSh2,718.00

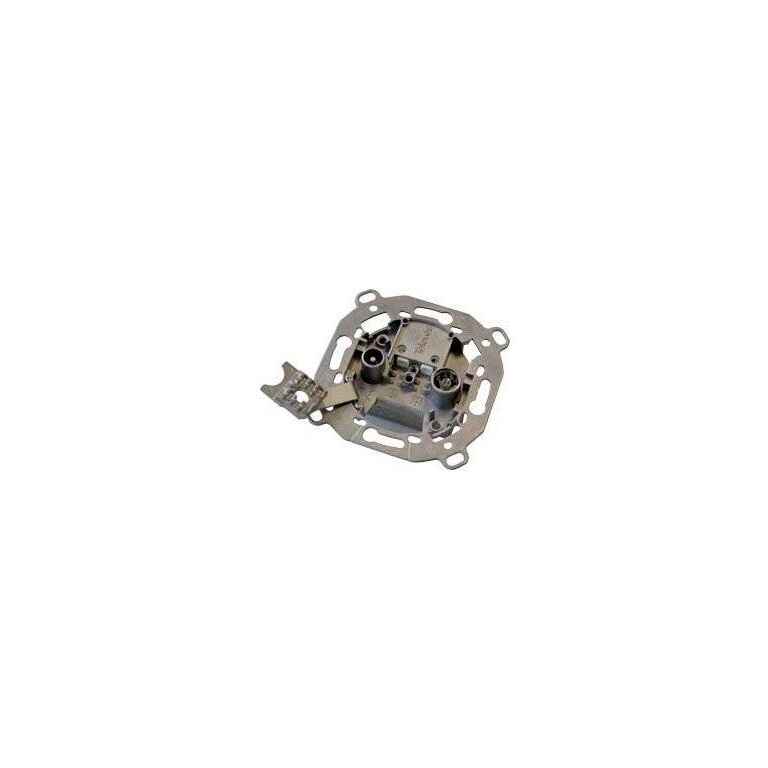

Step box 5 – 2150MHz TV/FM – SAT. 20 – 24dB + DC. Televes 5236
The sockets and junction boxes incorporate a new flange model whose main advantage is to facilitate the visualization of the connection in locations where the outlet is close to the ground.
The tightening design of the live has been improved to meet the specifications of cable operators. With this improvement, the pressure system would meet the following specifications:
For a minicable of 4.4 mm in total diameter, the supported weight would be:
greater than 4 Kg with live fastening and mesh.
greater than 2 Kg with clamping only live.
For a cable type T100, the supported weight would be:
greater than 12 Kg with live fastening and mesh.
greater than 5 kg with fastening only live.
The shielding indication is entered in the chassis.
Specifications?
Ref. Band Attenuation?(dB) DC current flow (350 mA)
VR FM VHF UHF BIS Insertion losses
MHz 5…65 87.5…108 125…470 470…862 950…2150 MATV SAT
?5236 TV/FM 20 24 0.6 1.2
ENT – SORT
SAT->ENT
SAT 20 24
Related products
-
Toma R/TV-SAT Televes
KSh2,406.00Add to cartRadio, television and satellite television with frequency range of 15-860 mhz and 950-2400 mhz with current pass. Televes 4301
-
-
Add to cartIKUSI ARTU 008. OUTLETS ARTU SERIES
Features
Filtered outlet sockets for individual or cascade assembly.
Fast clamping of the cable thanks to the swivel flange.
Easy connection using the system to insert live product.
Minimum current losses.
Current flow through the C2 connector, SAT output.
Compatible with the main wall-covering plates on the market.
Technical specifications
Modelo
Model
Mod?le ARTU008 ARTU081
Ref. 2574 2576
Instalaci?n
Installation
Installation Final
End
Final
Tipo
Type
Type Puenteada
Bridget
Pont? Resistiva
Resistive
R?sistanc
Conector
Connector
Connecteu C1 IEC macho
IEC male
IEC m?le
C2 IEC hembra
IEC female
IEC f?melle
Rango de frecuencias
Frequency range
Bande passante C1 5 – 862 MHz 5 – 1000 MHz
C2
Atenuaci?n de conexi?n
Transfer loss
Att?nuation de connexion TV < 1,5 dB? < 3 dB? RD < 1,5 dB? < 10 dB? Desacoplo C1-C2 C1-C2 Isolation D?couplage C1-C2 TV - < 15 dB? RD - < 15 dB? P?rdidas de retorno Return losses Pertes de retour TV - < 10 dB? RD Garras de fijaci?n Fixing hooks Griffes de fixation S? Yes Oui MANUAL/DATASHEET -
Add to cartIKUSI ARTU 980. OUTLETS ARTU SERIES
Features
Filtered outlet sockets for individual or cascade assembly.
Fast clamping of the cable thanks to the swivel flange.
Easy connection using the system to insert live product.
Minimum current losses.
Current flow through the C2 connector, SAT output.
Compatible with the main wall-covering plates on the market.
Technical specifications
Modelo
Model
Mod?le ARTU980 ARTU981 ARTU982 ARTU983
Ref. 2578 2579 2580 2575
Instalaci?n
Installation
Installation Final
End
Finale Intermedia
Intermediate
interm?diaire Intermedia
Intermediate
interm?diaire Intermedia
Intermediate
interm?diaire
Tipo
Type
Type Inductiva
Inductive
Inductive
Conector
Connector
Connecteu C1 IEC macho
IEC male
IEC m?le
C2 IEC hembra
IEC female
IEC f?melle
Rango de frecuencias
Frequency range
Bande passante C1 5 – 862 / 950 – 2400 MHz
C2
Atenuaci?n de conexi?n
Transfer loss
Att?nuation de connexion TV + RD < 4,5 dB? < 9 dB? < 13 dB? < 20 dB? SAT < 6 dB? < 10 dB? < 14 dB? < 24 dB? Atenuaci?n de paso Through loss Att?nuation de passage TV + RD - < 2 dB? < 1,2 dB? < 0,5 dB? SAT - < 3 dB? < 2 dB? < 1,2 dB? Desacoplo C1-C2 C1-C2 Isolation D?couplage C1-C2 TV + RD > 16 dB? > 25 dB? > 25 dB? > 25 dB?
SAT > 16 dB? > 25 dB? > 25 dB? > 25 dB?
P?rdidas de retorno
Return losses
Pertes de retour TV + RD > 10 dB? > 10 dB? > 10 dB? > 10 dB?
SAT > 6 dB? > 6 dB? > 6 dB? > 6 dB?
Paso de corriente C2
DC transit C2
Passage de courant C2 VDC 24 24
mA? 500 500
Tono/Tone/Ton 22 kHz / DiSEqC 22 kHz / DiSEqC
Garras de fijaci?n
Fixing hooks
Griffes de fixation S?
Yes
Oui S?
Yes
OuiMANUAL/DATASHEET
-
Add to cartTerminal socket with three connectors. In the lower left part a male CEI for terrestrial TV, in the lower right a female CEI for FM (radio) and in the upper center an F connector for multimedia data. Specially designed for operators, it is compatible with DOCSIS 3.1. Compatible with coaxial cables with cover diameter ? 5 … 7mm. Televes 524001
