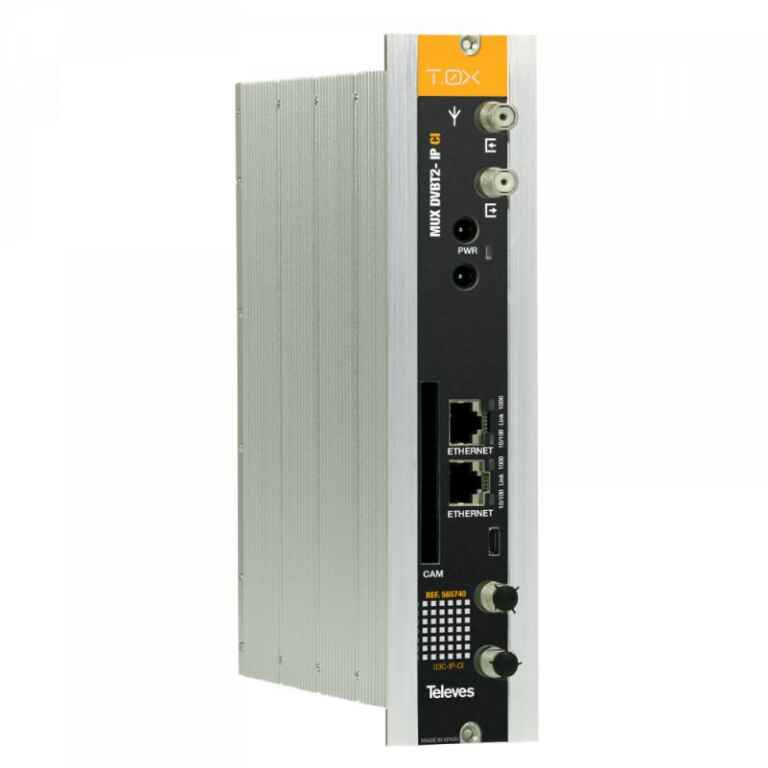

Streamer with remultiplexing DVBT/T2 – IP, with CI…

Streamer generating an IP encapsulated output from the multiplexing of the services available in 4 different DVB-T or DVB-T2 muxes.

The encrypted channels are transformed into free IP services through the CI interface and the appropriate CAM module. Depending on the CAM type used (standard/professional), one or several services may be opened for free visualization.

The module allows to re-encrypt the decrypted IP services with the CAM, with a DRM (Digital Rights Management) solution for a secure content distribution.

The system will encompass a power supply and some streamer modules depending on the number of services to be distributed.

Highlights
32 IP streams SPTS
DiSEqC 1.0 for multiswitches control
Service decryption by insertion of a PCMCIA module
Outbound IP streaming encryption with DRM solutions (Pro: Idiom)
Access to the headend configuration through a self-created WiFi network (using the kit with ref.216802)
Internal switch for IP out Daisy chain of serveral modules
Embedded user web interface for module configuration:
Configuration of the entire headend selecting one of the module as a master
Automatic detection of the modules that are connected to the master
Cloning function to replicate configurations between modules and headends
Main features
Selection of services among the 4 input muxes to distribute in streaming
Provides flow information of each service to estimate the global output flow of the module
Device monitoring and signal status LEDs
Specifications
ENTRADA
DVB-T/DVB-T2 Frecuencia de entrada MHz 150…862
Pasos de frecuencia kHz 125, 166 (Selec.)
Conectores de entrada y salida ?F? hembra
Impedancia de entrada ? 75
Alimentaci?n preamplificadores/previos Vdc 0, 12, 24 (Selec.)
Nivel de entrada dBm -60 a -20
P?rdidas de paso (t?p.) dB < 1,5 Ancho de banda DVB-T MHz 6, 7, 8 DVB-T2 1.7, 5, 6, 7, 8 ROE de entrada dB 10 SALIDA IP Modo Multicast/Unicast Formato SPTS Protocolo IPv4, UDP, DHCP N?mero de servicios IP M?x. 32 (unencrypted) M?x. 8 (Pro:Idiom DRM) Conectores 2 X RJ45 (1 GB Ethernet 1000 BaseT) GENERAL Consumo corriente 24Vdc (Base+CAM+Previo) mA 700 (500+100+100) ?ndice protecci?n IP IP20 Rango de temeperatura ?C 0...45
