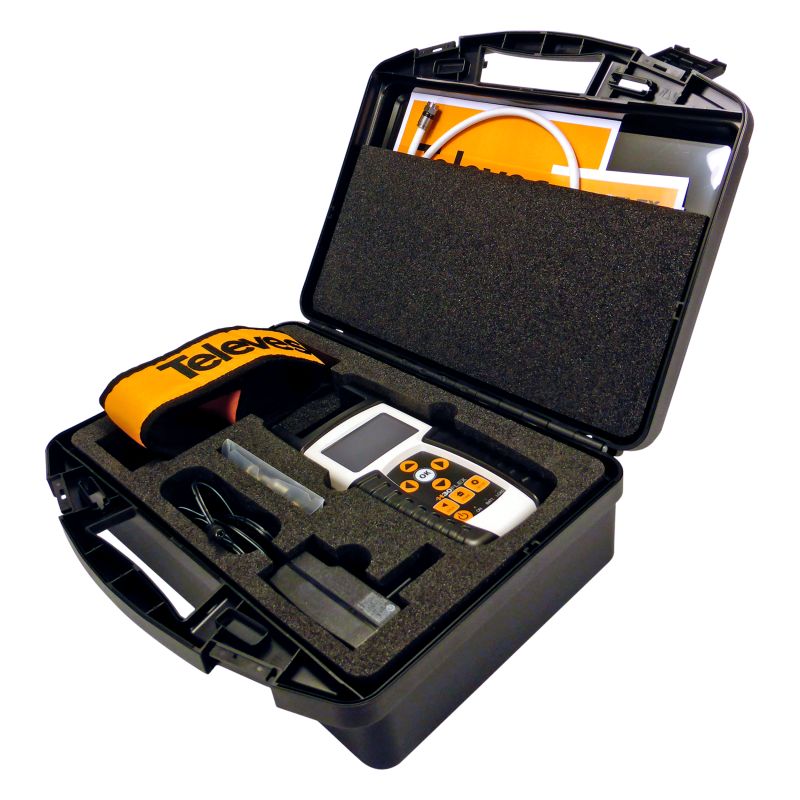

Televes Field meter H30FLEX DVB-S/S2 + DVB-C Carrying Case…

Carrying Case and Coaxial Cable Lead included

H30FLEX is meter designed to meet the requirements of TV installers for both satellite and terrestrial signals.

H30FLEX is a light-weight handheld meter packed with all of the features required to install and maintain TV systems using different modulation standards, like satellite (DVB-S/S2) or terrestrial/cable (analogue channels, DVB-T/T2 or DVB-C).

Available for the first time in an economic product, digital processing brings installers the opportunity to take measurements with a high level of accuracy, essential to give the installer the peace of mind of a job well done. It allows you to customize upgrade choice with download software.

Different standards included in each reference. Choose and only pay for the features you need.

Highlights
Light and small hand equipment
Intuitive menu
Multistandard (DVB-S / S2, DVB-T / T2 and DVB-C)
All measurements are made by pressing only one button, also carrying the Pass / Fail indicators to reduce installation errors
Specifications
H30FLEX
Mechanical Specifications
Screen 2.8? TFT 400 x 240 full color
Weight 510 g.
Dimensions 175x100x52 mm / 6,9×3,9×2 (HxWxD)
AC Adaptor Input: 100-240V~ 50-60Hz Output: 12VDC, 2A
Battery Li-ion (7,2VDC, 2300mAh)
Baterry range >4hours without LNB powering
Interfaces USB 2.0 for Data log download and software upgrades
Storage capacity 400 MB (internal) for measurements
Resilience It withstands drops from 1 m (3.2 ft) onto concrete on all sides
Impedance F-type connector – 75 Ohm

Technical Specifications
593303 593301 593302 593304
Frecuency
Range 50- 880 MHz y 950- 2200 MHz
Resolution 125 kHz
Tunning Frecuency or channel
Spectrum analyser
Span 5, 10, 20, 50, 100, 200, 500 MHz y Full
Scale 5 y 10 dB/div
Reference level (automatic and manual) ?
DVB-S digital measurements [Modulation: QPSK]
Image ? ? ? ?
Power From 45 to 110 dB?V ? ? ? ?
CBER 9.9E-2 ? 1.0E-6 ? ? ? ?
VBER 1.0E-4 ? 1.0E-8 ? ? ? ?
MER Up to 20dB ? ? ? ?
C/N Automatic ? ? ? ?
Constelation ? ? ? ?
SCR EN 50494 ?
dCSS EN 50607 Upgrade 593234*
DVB-S2 digital measurements [Modulations: QPSK, 8PSK]
Image ? ? ? ?
Power From 45 to 110 dB?V ? ? ? ?
Link Margin Up to 10 dB ? ? ? ?
MER Up to 20 dB ? ? ? ?
LDPCBER 9.9E-2 ? 1.0E-6 ? ? ? ?
BCHBER 9.9E-2 ? 1.0E-8 ? ? ? ?
Constelation ? ? ? ?
SCR EN 50494 ?
dCSS EN 50607 Upgrade 593234*
DVB-T digital measurements [Modulations: COFDM (QPSK, 16QAM, 64QAM)]
Image Upgrade 593231 ? ? ?
Power From 45 to 110 dB?V Upgrade 593231 ? ? ?
From 45 to 120 dB?V Upgrade 593231 + Upgrade 593235* ? | Upgrade 593235* ? | Upgrade593235 ? | Upgrade593235
CBER 9.9E-2 ? 1.0E-6 Upgrade 593231 ? ? ?
VBER 1.0E-3 ? 1.0E-8 ? ? ?
MER Up to 35 dB ? ? ?
C/N Automatic ? ? ?
Echoes ? ? ?
Constelation ? ? ?
DVB-T2 digital measurements [Modulations: COFDM ( QPSK, 16QAM, 64QAM and 256 QAM)]
Image Upgrade 593231 + Upgrade 593232 Upgrade 593232 ? ?
Power From 45 to 110 dB?V Upgrade 593231 + Upgrade 593232 Upgrade 593232 ? ?
From 45 to 120 dB?V Upgrade 593231 + Upgrade 593232 + Upgrade 593235* Upgrade 593232 + Upgrade 593235* Upgrade 593235* Upgrade 593235*
LDPCBER 9.9E-2 ? 1.0E-6 Upgrade 593231 + Upgrade 593232 Upgrade 593232 ? ?
BCHBER 1.0E-3 ? 1.0E-8 ? ?
Link Margin Up to 30 dB ? ?
MER Up to 35 dB ? ?
C/N Automatic ? ?
Echoes ? ?
Constelation ? ?
DVB-C digital measurements [Modulations: 16QAM, 32QAM, 64QAM, 128QAM and 256 QAM]
Image ? Upgrade 593233 Upgrade 593233 ?
Power From 45 to 110 dB?V ? Upgrade 593233 Upgrade 593233 ?
From 45 to 120 dB?V Upgrade 593235* Upgrade 593233 + Upgrade 593235* Upgrade 593233 + Upgrade 593235* Upgrade 593235*
CBER 1.E-2 ? 1.0E-8 ? Upgrade 593233 Upgrade 593233 ?
MER Up to 38 ? ?
C/N Automatic ? ?
Analogue measurements
Level 25 and 125 dB?V ? ? ? ?
V/A ? ? ? ?
C/N ? ? ? ?
Measurements and functions
Terrestrial plans CCIR, CCIR + LTE, OIRT, KBW, FCC, DAB, SIM
Satellite plans 68E INTEL C, 68E INTEL, 42E TURK, 39E HELLAS, 33E EUTEL, 28E EUTEL, 28E ASTRA, 26E BADR, 25E EUTEL, 23E ASTRA, 21E EUTEL, 19E ASTRA, 16E EUTEL, 13E HOTB, 10E EUTEL C, 10 EUTEL, 9E EUTEL, 7E EUTEL, 4E ASTRA, 1W THOR5, 1W THOR6, 5W EUTELC, 5W EUTEL, 7W NILE, 30W HISPA, 48W AMZC, 48W AMAZ, SIM
Units dB?V, dBmV, dBm
LNB powering 13, 18 Vdc
LNB Tone 22 kHz

* Free upgrade when registering the equipment.

Features
Multistandard
A fully configurable team according to your needs

The H30FLEX is fully prepared to meet the specific needs of each user. It is a multi-standard equipment prepared to perform measurements on the DVB-S / S2 satellite band, but it also measures channels on the terrestrial band DVB-T / T2 and DVB-C. But to meet the needs of each user, and taking into account that these can vary at any time, the user can add new options easily without having to send the meter to the factory.

?
Prepared to obtain
the signal of any satellite

The H30FLEX is ready to configure the necessary parameters for the reception of your satellite signal. For this, from the H30FLEX, it is possible to feed the previous ones, configure DiSEqC parameters, and also SCR parameters.

?
Intuitive User Interface
Optimize the learning curve

Moving through the menu is now very simple thanks to its structure of a single level that collects all the functions in a very intuitive way: better utility, faster operating speed, maximum productivity. No function requires more than three successive button presses to achieve the desired operation. You will not find anything simpler than this, you can navigate through the functions without having to read the user manual.

?
Integral Functionality
With Pass / Fail indicators

A complete repertoire of features such as Single Channel Measurements, System Scans, Constellation Diagram, Spectrum Analyzer, Datalogs, Channel Plan Auto-Learning, and more.

?
Accuracy and Speed
Digital processing in real time

Designed from the start to instantly get all the signal information in real time, a real milestone in the field work. The H30FLEX provides the precision and speed necessary to detect transient light, radiation, or spurious signals that may affect the reception of the signal.

?
100% Automatic
Signal detection

Fully automatic, it detects ITU-T J.83 NTSC and Annex A / B / C parameters without the need for configuration. The H30FLEX will immediately detect if the input signal is analogue or digital and will determine its constellation, symbol rate, and other modulation parameters, offering an instantaneous reading without user intervention.

?
Robust and lightweight
Absolute reliability

Its exclusive double injection rubber shell and plastic polycarbonate guarantee protection and durability. With only half a kilo of weight, the H30FLEX is comfortable to transport and use. You can put it in your pocket or use your strap to hang it on your shoulder … You will hardly notice it is there!

Functionalities
Pass/Fail Indicators
Easy decision-making

Reduce installation mistakes with the on-screen Pass/Fail indicators, a graphical tool that helps and speeds up the interpretation of measurement results. Different thresholds are available depending on the network area to be analysed: headend, multi-band amplifiers, bridging connection, connection records, user home, etc. Besides the pre-set values, you will be able to customize your own threshold values.

Channel Information
The less the better

Sometimes, taking a quick glance at one channel is all you need. The advanced H30FLEX single-channel measurement option automatically detects the channel type, displaying the audio and video levels, A/V and C/N for analogue signals, and power, C/N, and appropriate quality measures for each type of digital signal. All these measures are taken by means of one single button; at that point, all indicators will be activated and display the ?Pass/Fail? condition based on the thresholds specified by the user. Easy-to-interpret results, even for junior technicians.

System Scan
Monitored installation

Scan each existing analogue and digital channel in real time to determine the overall system frequency response. This function leverages the location-based thresholds to clearly show whether the signal levels meet the cable systems? specifications with green, yellow and red bars. This feature provides an easy-to-understand, real-time view of the system, including the BER and MER values of the selected channel.

Spectrum Analyser
From 5MHz to “full span?

H30FLEX spectrum analyser provides a value range of 5, 10, 20, 50, 100, 200, 500 MHz and Full, as well as a reference level auto-adjust feature. Real-time processing speeds ensure the capture of any signal incidents. You will be surprised by the accuracy and the level of detail provided by this ultra-portable pocket spectrum analyser. The ultimate tool for identifying and localising noise, interference, radiation, and any other signals that may be affecting the quality of the television signal distribution service

Constellation Diagram
Fine-tune your digitals

Constellation analysis is essential for determining the quality of digital signals. Constellation diagrams help detecting noise, jitter, interference and signal saturation, and all the variables that could impact signal quality, eventually leading to service suspension. By visually inspecting the size and shape of the dots in the constellation matrix, the technician will be able to easily identify the nature of the problem

Capture Plan
Custom channel plans

Identify the channels in your distribution with the ultra-fast Capture Plan function, and from there build your own channel plan containing only the channels you are interested in. Furthermore, each channel will be displayed on a bar chart with the appropriate colour based on the selected quality threshold.

MPEG
MPEG video and detailed information

Do you wish to know the contents offered on a DIGITAL channel? H30FLEX function MPEG will tell you. In addition to channel services display, you will get their key parameters: Service name, PID, resolution, audio types and figures, and NIT. A valuable help when troubleshooting your encoder configuration.

Echo
Optimal signal reception

In terms of terrestial signal reception, controlling the absence of any echoes that could jeopardize reception is crucial. H30FLEX displays the echoes of the received signal, allowing the installer to minimize them for optimal signal reception.

Datalogs
Save and download

While you are taking measurements or looking for possible problems, you can save sample signal parameters for further in-depth analysis or just for record and use in your reports. It can also prove to be a useful tool for training purposes.

Analog Audio/Video (*)
Camera display

Installations of video surveillance systems are increasing. To display and monitor surveillance analog cameras, H30FLEX meters add a new software option and an USB video capture converter with Audio, Video and CVBS input connectors. H30FLEX displays NTSC and PAL video formats. The best option to verify the right functioning of the system.

(*) Optional feature: Ref. 593236
