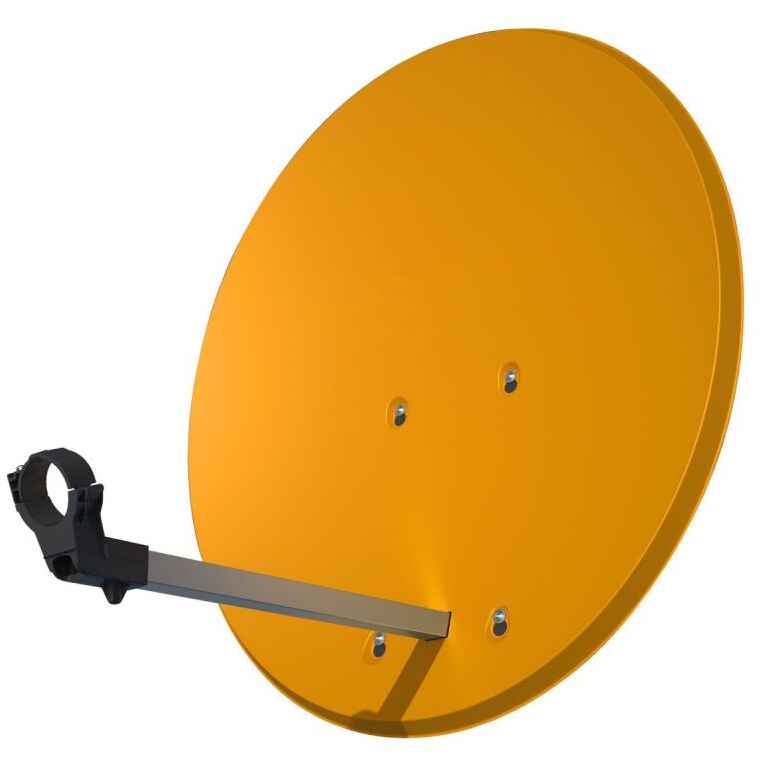

Televes ISD Offset dish 83cm Aluminum 39dBi Orange
KSh19,116.00
This new range of satellite dishes is built using aluminium and stainless steel to guarantee the protection against rust.
This product is not sent to some countries or areas, if the cart does not have available carriers, you can contact us here
This new range of satellite dishes is built using aluminium and stainless steel to guarantee the protection against rust.
The bracket and LNB holder are built using a special polymer widely used in a highly professional sector, and reinforced with fiberglass for an extreme resistance.
Its improved structure has been designed to make assembly easier.
Main features
Flexible LNB holder. Made of fiberglass
Hide the cables in the arm. Made of aluminium
Best performance against corrosion. Aluminium dish and stainless steel screws
Robust pole clamp and bracket with two ?U? type bolts. Made of ZAMAK
Adjustable elevation angle. From 0 to 90?
High resistance reflector bracket. Made of fiberglass
Specs
Offset ? 830
?Frequency ?GHz ?10,7 … 12,75
?Gain dBi 38 @ 11,7 GHz
?Offset angle ? 26,6
?Elevation angle ? 0 … 90
?Thickness mm 0,8
?Windload N 499,2 @ 130Km/h
686,4 @150 Km/h
?Mast diameter mm 20 … 60
?Dish size mm 747×833
Related products
-
Add to cartThis new range of satellite dishes is built using aluminium and stainless steel to guarantee the protection against rust.
-
Add to cartThis new range of satellite dishes is built using aluminium and stainless steel to guarantee the protection against rust.
-
-
Add to cartThis product is not sent to some countries or areas, if the cart does not have available carriers, you can contact us here
TRIAX TD Dishes?The difference is clear
Manufactured and tested to the highest standards of precision and quality, TRIAX?s easy-to-install dishes offer outstanding performance, durability and reliability.
TDS: Steel???? TDA: Aluminium
Features
Unrivaled build quality, whether Steel or Aluminium
– Hot-dip galvanized steel OR long lasting Aluminium – for extra corrosion protection?
– TRIAX?s unique cable protection system?
– Every part, every accessory is weatherproofed
– 2 years corrosion warranty
– 5 years functionality warranty
Outstanding performance
– High gain for an exceptional signal
Quick and easy installation
– One-click mounting system
– Self-locking screw & nuts
Logistic friendly
-?Single or Bulk packaging, according to customer needsTRIAX is your reliable partner, with?comprehensive service and support.?
Specifications
ORDER INFORMATION
EAN Number 5702661205040
CHARACTERISTICS
Elevation range 0…90 ?
Offset angle 26 ?
F/D ratio 0,62
FREQUENCY
Frequency range 10.7…12.75 GHz
GAIN
Gain @ 11.7 GHz 35 dBi
Gain @ 10.70 GHz 37 dBi
Gain @ 12.75 GHz 34 dBi
MECHANICAL
Main material Aluminium
Colour RAL 7016 – Anthracite grey
Arm Colour Raw
Total Weight 3,750 kg
LNB holder 40
Net Weight 2,700 kg
Packing QTY 1
Reflector type Offset
Width (cm) 60 cm
Height (cm) 66 cm
Packaging Depth 0,100 m
Packaging Height 0,734 m
Packaging Width 0,684 m
Tara Weight 1,050 kg
Packaging Volume 0,050 m3 -
Add to cartThis product is not sent to some countries or areas, if the cart does not have available carriers, you can contact us here
TRIAX TD Dishes?The difference is clear
Manufactured and tested to the highest standards of precision and quality, TRIAX?s easy-to-install dishes offer outstanding performance, durability and reliability.
TDS: Steel???? TDA: Aluminium
Features
Unrivaled build quality, whether Steel or Aluminium
– Hot-dip galvanized steel OR long lasting Aluminium – for extra corrosion protection?
– TRIAX?s unique cable protection system?
– Every part, every accessory is weatherproofed
– 2 years corrosion warranty
– 5 years functionality warranty
Outstanding performance
– High gain for an exceptional signal
Quick and easy installation
– One-click mounting system
– Self-locking screw & nuts
Logistic friendly
-?Single or Bulk packaging, according to customer needsTRIAX is your reliable partner, with?comprehensive service and support.?
Specifications
ORDER INFORMATION
EAN Number 5702661205002
CHARACTERISTICS
Elevation range 0…90 ?
Offset angle 26 ?
F/D ratio 0,62
FREQUENCY
Frequency range 10.7…12.75 GHz
GAIN
Gain @ 11.7 GHz 35 dBi
Gain @ 10.70 GHz 37 dBi
Gain @ 12.75 GHz 34 dBi
MECHANICAL
Main material Galvanized steel (hot-dip)
Colour RAL 7016 – Anthracite grey
Arm Colour Raw
Total Weight 4,270 kg
LNB holder 40
Net Weight 3,220 kg
Packing QTY 1
Reflector type Offset
Width (cm) 60 cm
Height (cm) 66 cm
Packaging Depth 0,100 m
Packaging Height 0,734 m
Packaging Width 0,684 m
Tara Weight 1,050 kg
Packaging Volume 0,050 m3
