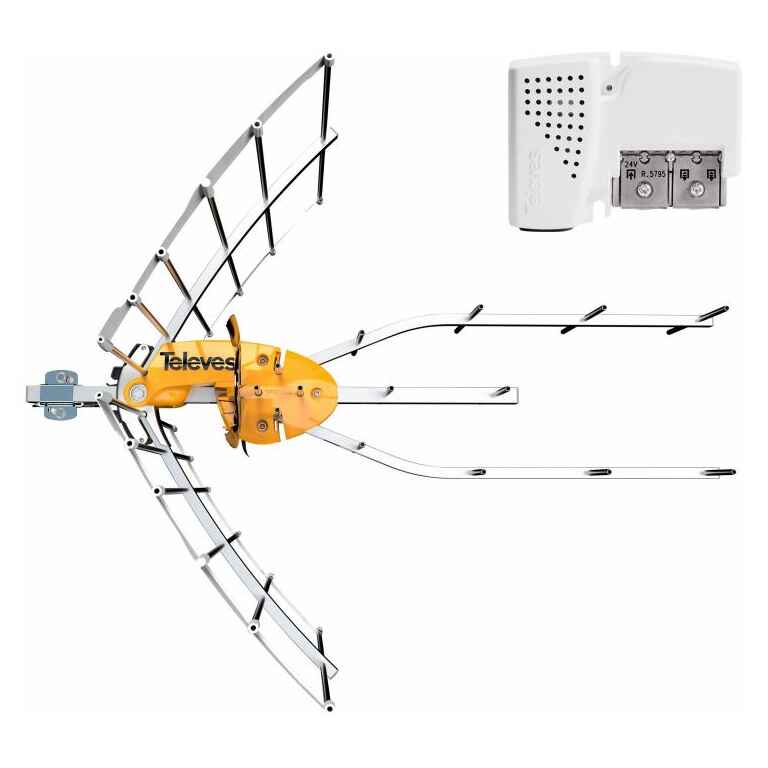

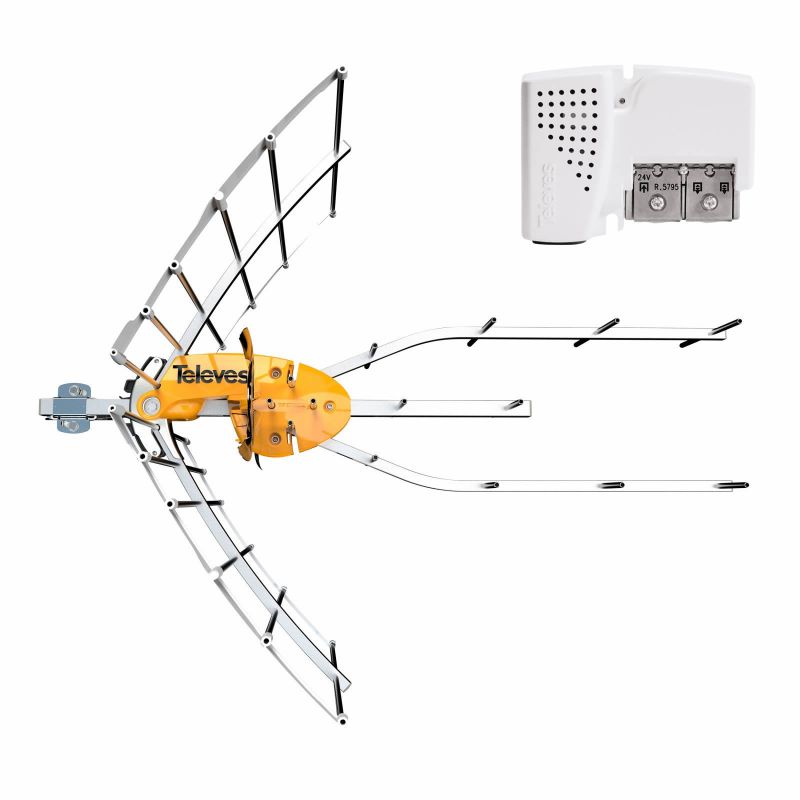

Terrestrial Antenna ELLIPSE UHF (C21-48) G 38dBi LTE700 +…

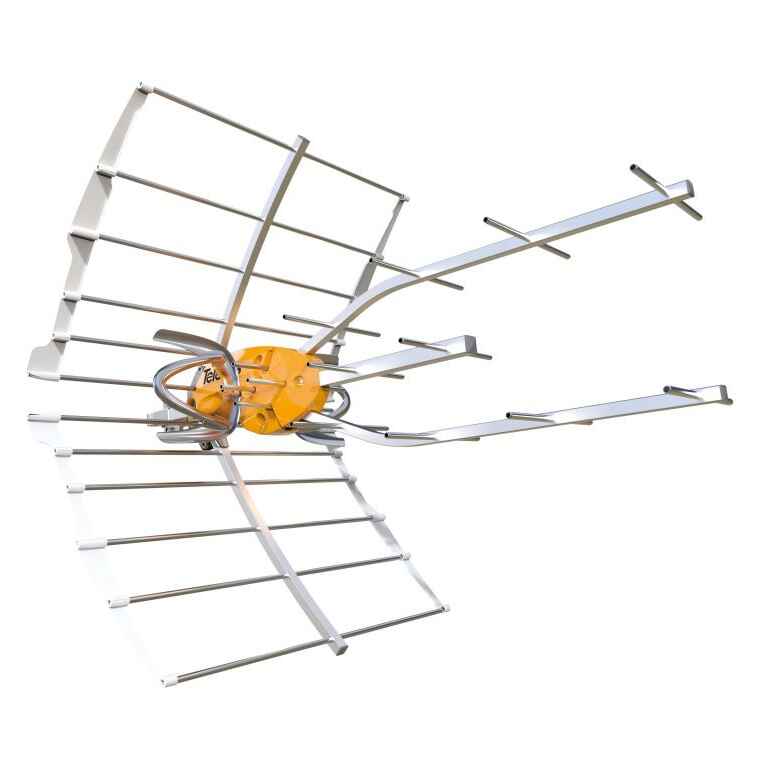

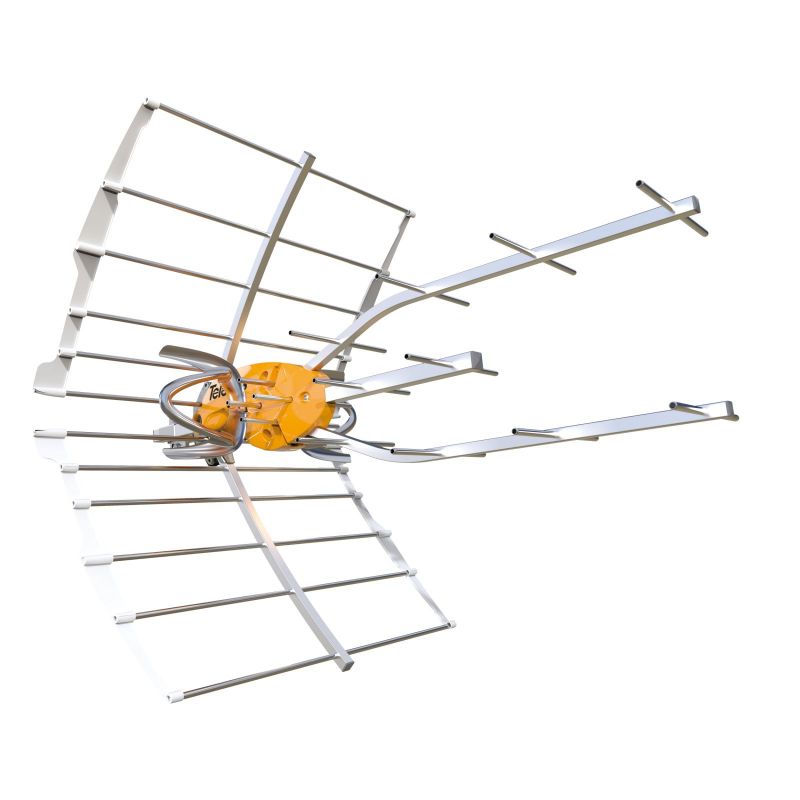

Ellipse antenna

UHF, 2nd Digital Dividend (LTE700)

Ellipse is an intelligent antenna that adapts automatically and in real time to your reception conditions. It has been designed for a stable reception and quality of UHF (TDT), optimizing the rejection to the LTE band (up to channel 48) with a SAW filter of great selectivity.
A new concept of antenna that eliminates any interference even in the limit of the TV band merging in a 100% stainless mechanics, a breakthrough design and the new generation of TForce with SAW filter.

Includes power supply.

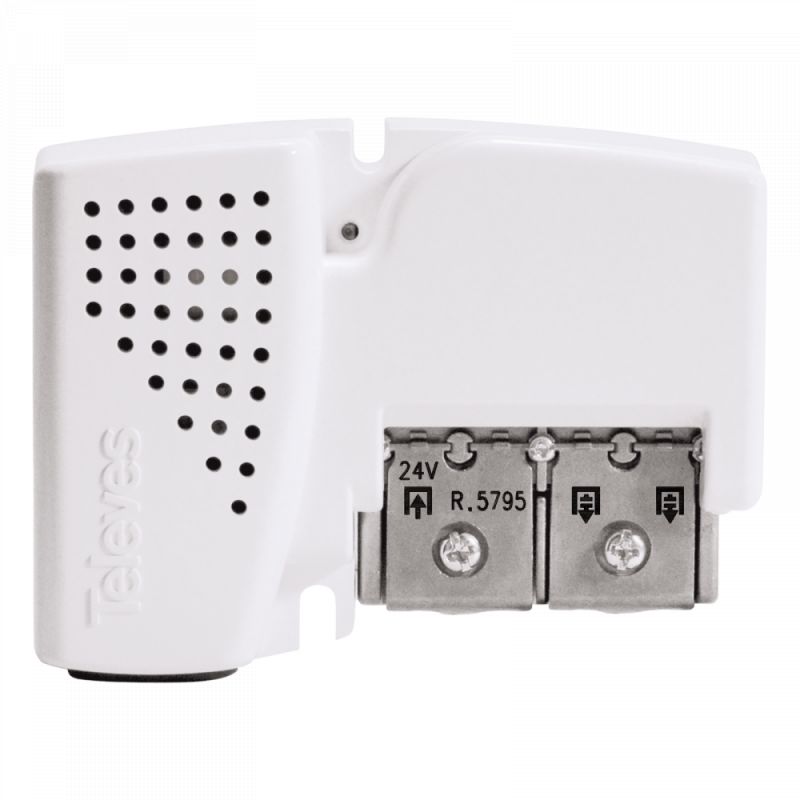

Ref: 5795 PicoKom power supply unit 24 V – 130 mA, 2 outputs

Domestic 24 V-power supply (130 mA) that powers equipment through the input coaxial cable while allowing the transmission of the TV signal. Included in the installation to power either mast amplifiers or a BOSS system. Furthermore, it is equipped with two outputs.

Highlights
The antenna with the best DTT coverage area: receives correctly in multiple locations, even if the signal is very strong, or reaches the very weak antenna
Able to adapt to changes in reception conditions: it is continuously checking the signal and adjusting its gain to always give the best possible output level
Eliminates any interference, even in the limit of the TV band: thanks to its SAW filter (Surface Acoustic Wave) which is characterized by its high selectivity, interference is filtered, mainly from LTE telephony, respecting the last channel of the band
Mechanics completely immune to corrosion: aluminum and fiberglass structure, stainless steel fasteners and ZAMAK jaw reinforced with anti-corrosive treatment
Innovative aerodynamic design: its inimitable and meticulously meticulous aesthetic line, is the sample of the passion for details
Optimized reception: the concave surface of the curved reflectors concentrates the received signal in the dipole. The convex surface maximizes the shielding of the dipole, increasing the rejection against interference
Assembly experience: assembly of the antenna in less than 30 seconds and the entire installation is done without tools
Robust and permanent anchoring that prevents maladjustments over time
Features
Very light and compact: it facilitates installation in complicated places and offers less wind resistance
High dynamic range: allows to receive a quality signal in a wide range of situations, raising very weak signals and avoiding saturation with high levels of reception
Optimal C/N: the quality of the signal is respected to the maximum thanks to a figure of very low noise.
Ideal gain: intelligence automatically regulates the gain at the right level
Special dipole in double “U”: its open/closed format provides optimal flatness in its frequency response
Fully shielded junction box that protects the BOSS system from impulse noise, and connected to ground for total protection against electric shock
Low consumption in intelligent mode
Manufacture in Europe: made in a new line of automated manufacturing, assembled to guarantee the quality of the product through specific controls and manufacturing tests
Includes power supply to activate intelligence
TForce technology:

Televes exceeds the silicon era and ushers in a new era in the design of electronic components, which allows obtaining integrated circuits that operate in the frequency band of microwaves. TForce is based on the manufacture of semiconductor compounds such as gallium arsenide (GaAs), providing the products that integrate it with features that are difficult to match.

Telev?s has reinvented the antenna concept. Until now, an antenna was limited to being the sensor element in a TV installation where gain and directivity were the characteristics to be highlighted. The introduction of an intelligent device such as BOSS gave the antenna the ability to receive very weak signals without the risk of being affected by very strong signals where, in addition, the fluctuations did not affect the final result: the concept of “dynamic margin” it is thus revealed as the most remarkable among the quality parameters.

The creation of a BOSS with TForce technology, based on the use of MMIC components, is an extraordinary milestone in the optimization of dynamic Margin. A technology that allowed the recovery of lost signals from distant satellites is what now makes it possible to increase the range of coverage in DTT installations.

Videos

Specifications
Antenna
Reference 148921
?Bandwidth MHz 470 – 698 (CH.21 – CH.48)
?BOSS mode Intelligent (BOSS ON)
?Gain ?dBi 38?2
?Output level Auto
?Noise figure ?dB 2.5 (typ)
?Signal level of use (recommended) ?dB?V <75 ?Supply voltage ?V 12-24 ?Consumption ?mA 40 (m?x) ?Beam width ?? 30 ?D/A ratio ?dB >20
?Load to the wind ?N 96 (@ 130 Km/h)
132 (@ 150 Km/h)
?Diameter of the mast ?mm 20…50
Power supply
Plug type EU
Number of outputs 2
Frequency range MHz
5 … 862

Insertion losses: 1 output dB
1.5

Insertion losses: 2 outputs dB
4

Output voltage Vdc 24
Max. output current mA 130
Input voltage Vac 220 … 230
Mains frequency 50 Hz / 60 Hz
Max. current mA 35
Max. power consumption W 4.4
Operating temperature ?C -5 … 45
Protection index 20
