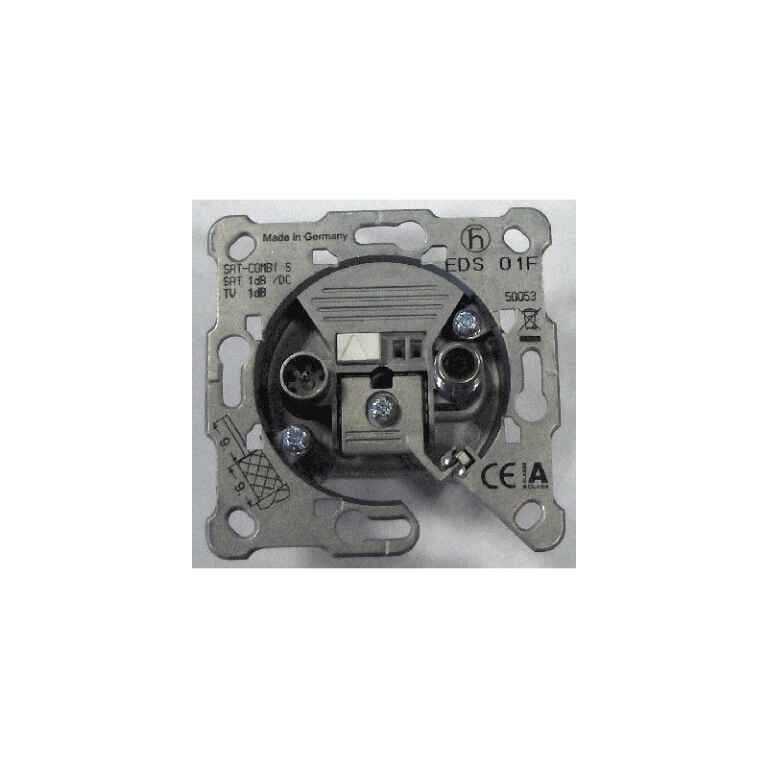

Toma separadora final con conector F EDS 01F Triax/hirschman…
KSh1,560.00
Las tomas?SAT con filtro?son parte de la nueva generaci?n de tomas de hirschmann:
Terminal inteligente de bloqueo
R?pido?y f?cil?montaje
Excelentes?par?metros?el?ctricos
Absolutamente fiable?y duradera?- “Made in Germany”
Caracter?sticas
Doble salida, especial para su uso en sistemas de?multiswitch, soluci?n de un solo cable para instalaciones SAT-TERRESTRES
Perdidas muy bajas en distribuci?n?por medio de divisi?n de las bandas de frecuencia a trav?s de filtros?
2 salidas, una para?Sat (F hembra) and una para TV/RF (IEC macho)
Alimentaci?n remota?+ DiSEqC en la salida de TV, en la otra, conexi?n “F” directa a?receptor de satelite
De acuerdo a?
RoHS?
EN 50083-2 (class A)?
EN 50083-4 (metodos de medida)
Especificaciones
Modelo EDS 01 F
Aplicaci?n Toma final
?Rango de frecuencia ?| ?Atenuaci?n ?
Entrada – sallida (paso)? 5 to 2150 (2400) MHz ?| ? –
Entrada – IEC macho 5 to 862 MHz ?| ?1.0 dB
Entrada – IEC hembra 950 – 2150 (2400) MHz ?| ?1.2 dB
Aislamiento
Salidas – TV/RF VHF, UHF / SAT??| ?-
TV – RF VHF, UHF / SAT ?| ?25/18 dB
Paso de corriente 13/18V, 22 kHz;max. +24V/0.5 A
Entrada SAT?(conector F)
Related products
-
Add to cartSeparator terminal connector with two CEI connectors. The one on the left is a male CEI for FM (radio) and terrestrial TV and the one on the right is a female CEI for satellite TV (FI). TV/FM-SAT. 0.6 – 1.5dB + DC with claws. Televes 5226
-
Step box SCATV 7dB 5-1000 MHz Televes
KSh2,740.00 -
Add to cartIKUSI ARTU 980. OUTLETS ARTU SERIES
Features
Filtered outlet sockets for individual or cascade assembly.
Fast clamping of the cable thanks to the swivel flange.
Easy connection using the system to insert live product.
Minimum current losses.
Current flow through the C2 connector, SAT output.
Compatible with the main wall-covering plates on the market.
Technical specifications
Modelo
Model
Mod?le ARTU980 ARTU981 ARTU982 ARTU983
Ref. 2578 2579 2580 2575
Instalaci?n
Installation
Installation Final
End
Finale Intermedia
Intermediate
interm?diaire Intermedia
Intermediate
interm?diaire Intermedia
Intermediate
interm?diaire
Tipo
Type
Type Inductiva
Inductive
Inductive
Conector
Connector
Connecteu C1 IEC macho
IEC male
IEC m?le
C2 IEC hembra
IEC female
IEC f?melle
Rango de frecuencias
Frequency range
Bande passante C1 5 – 862 / 950 – 2400 MHz
C2
Atenuaci?n de conexi?n
Transfer loss
Att?nuation de connexion TV + RD < 4,5 dB? < 9 dB? < 13 dB? < 20 dB? SAT < 6 dB? < 10 dB? < 14 dB? < 24 dB? Atenuaci?n de paso Through loss Att?nuation de passage TV + RD - < 2 dB? < 1,2 dB? < 0,5 dB? SAT - < 3 dB? < 2 dB? < 1,2 dB? Desacoplo C1-C2 C1-C2 Isolation D?couplage C1-C2 TV + RD > 16 dB? > 25 dB? > 25 dB? > 25 dB?
SAT > 16 dB? > 25 dB? > 25 dB? > 25 dB?
P?rdidas de retorno
Return losses
Pertes de retour TV + RD > 10 dB? > 10 dB? > 10 dB? > 10 dB?
SAT > 6 dB? > 6 dB? > 6 dB? > 6 dB?
Paso de corriente C2
DC transit C2
Passage de courant C2 VDC 24 24
mA? 500 500
Tono/Tone/Ton 22 kHz / DiSEqC 22 kHz / DiSEqC
Garras de fijaci?n
Fixing hooks
Griffes de fixation S?
Yes
Oui S?
Yes
OuiMANUAL/DATASHEET
-
Through outlet low loss. TV-FM 9.5-24dB
KSh2,018.00 -
Add to cartSeparator terminal with claws with two CEI connectors. CEI male for FM (radio) and terrestrial TV and female CEI for satellite TV (FI). It incorporates anti-LTE filtering (channel 60). High rejection separator filter: the SAT signal is filtered in the male CE/FM TV connector, and the terrestrial FM/TV is filtered in the female CEI satellite connector. Televes 522610
