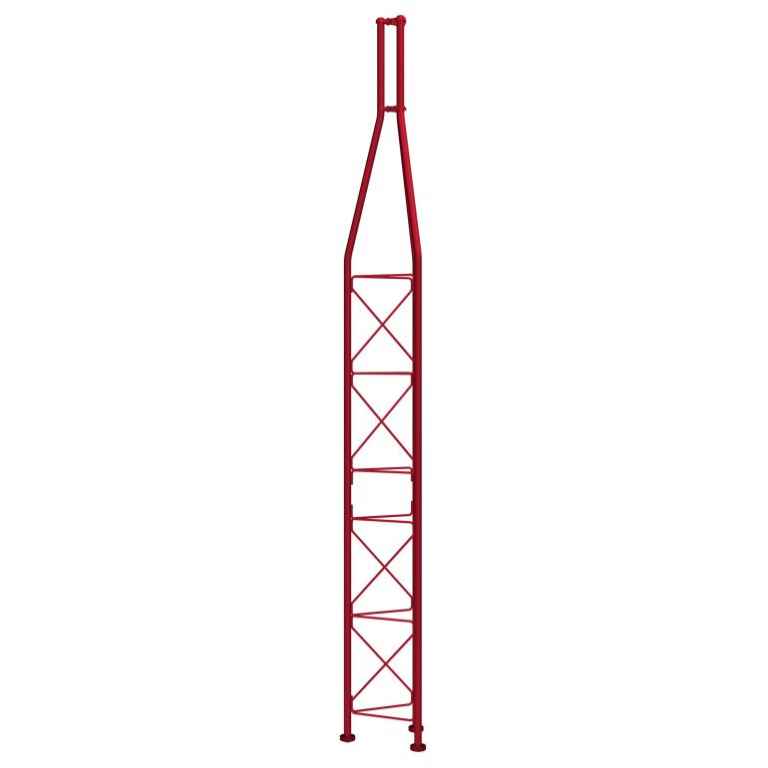

Name: Top section Zinc+Red paint 3m turret serie 360 Televes
SKU: TELEVES-308501
Availability: InStock

Top section Zinc+Red paint 3m turret serie 360 Televes

KSh163,824.00

3m upper section for the erection of a 360 series tower.?Red color. Televes 308501

This product is not sent to some countries or areas, if the cart does not have available carriers, you can contact us here

3m upper section for the erection of a 360 series tower.
Highlights
Anchoring system with union nuts
Fully automated soldering
360 tower maximum height: 57m (as per calculation conditions)
Features
Zinc coating + Red colour paint: oven-lacquering with polyester electrostatic powder
Specifications
Description Upper section tower 360. Red color
Material

(1) Steel ST 37-2 ? 30 ext. x 2 mm esp. Re min. 235 N / mm2 – Rn min. 360/510 N / mm2

(2) Steel S 275 JR ? 9 mm esp. Re min. 275 N / mm2 – Rn min. 410/560 N / mm2

(3) Steel F626 (S 235) sheet 10 mm esp. Re min. 275 N / mm2 – Rn. 410/560 N / mm2

Finish Primed + Oven Lacquer with Polyester Electrostatic Powder 60-80 ?m (Red RAL 3020)
Weight 23 Kg?
Surface facing the wind 0.333 m2 x 1.2 coef. = 0.40 m2
