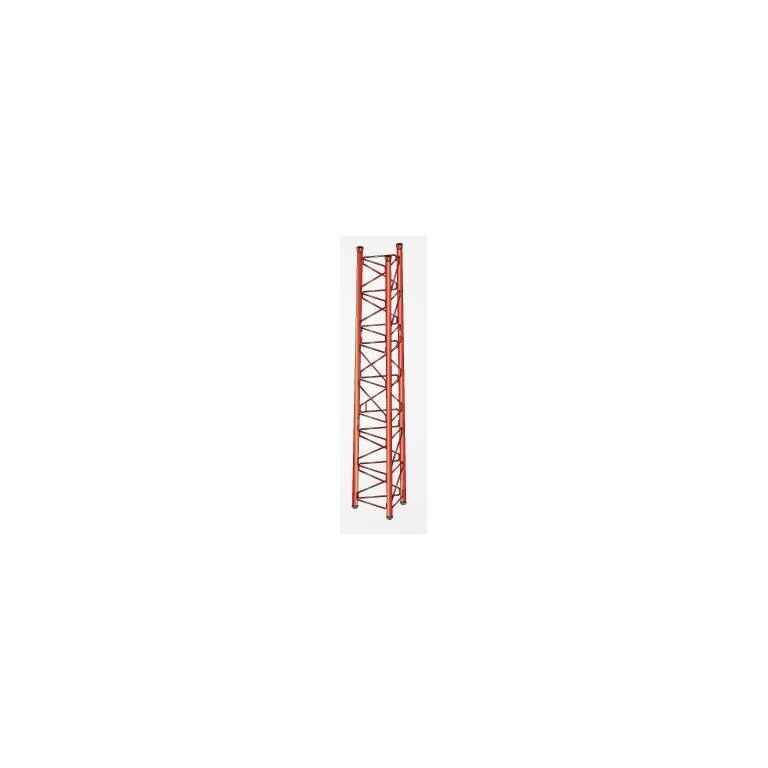

Transition section zinc + paint series 550 to 450 red 3m…
KSh433,906.00
Transition tower series 550 to 450. Zn + RO. 3m. Televes 3141
This product is not sent to some countries or areas, if the cart does not have available carriers, you can contact us here
Conceived as a reinforcement of the 450 tower, this series is made up of support sections (lower and intermediate) to reach high heights (up to 120m) in extreme conditions (wind speed of 200Km / h).
Anchoring system using fittings. Maximum height of Tower 550: 140m (according to calculation conditions)
The surface plate (ref. 312901) allows the installation of the tilting base without using concrete.
Specifications
References 3141
Material (1) Steel ST 37-2 ? 60 ext. x 4 mm thick.
Re min. 235 N / mm2 – Rn min. 360/510 N / mm2
(2) Steel S 275 JR ? 14 mm
Re min. 275 N / mm2 – Rn min. 410/560 N / mm2
Finish Primed + Baked Lacquered with Electrostatic Powder
Polyester 60-80 ?m (Red RAL 3020)
Weight Kg 82
Wind-facing surface m? 0.707 m? x 1.2 coef. = 0.848 m?
