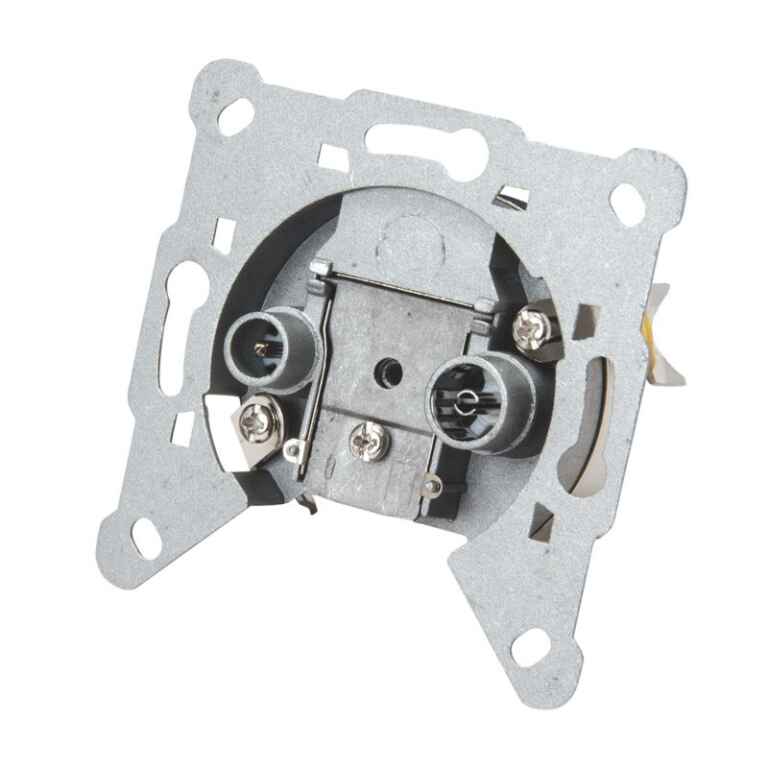

Triax FS 01 outlet R/TV terminated 5-1000 MHz
KSh1,176.00
Radio/TV final shot for MATV installations or individual installations.
Range of frequencies from 5 to 1000 MHz. The TRIAX TOU sockets are constructed from an aluminum frame, the IEC connectors comply with DIN 45325 and IEC 169. The sockets are embedded in a hole (pot) of ?60 mm in diameter or mounted mounted on the wall using a TOU mount.
Specifications
ORDER INFORMATION
EAN Number 5702663061910
SHIELDING
Shielding @ 30-300 MHz ? 85.0 dB
Shielding @ 300-470 MHz ? 80.0 dB
Shielding @ 470-1000 MHz ? 75.0 dB
CHARACTERISTICS
Type FS
Outlet Type Terminated
FREQUENCY
Frequency Range IN-OUT 5…1000 MHz
Frequency Range FM 87…108 MHz
Frequency Range TV 5…68 / 118…1000 MHz
LOSS
Through Loss IN-FM 1.0 dB
Through Loss IN-TV 0.7 ?1.0 dB
ISOLATION
Isolation TV/RF out 30 (-1,5dB) dB
Isolation TV-FM >10.0 dB
RETURN LOSS
Return Loss IN > 14.0 (@ 40 MHz -1.5/Oct.) dB
Return Loss FM > 10 dB
Return Loss TV > 14.0 (@ 40 MHz -1.5/Oct.) dB
ELECTRICAL
Impedance 75 ?
OPERATIONAL
Screening Efficiency EN50083-2 (Class A)
Operating temperature range -25…+55 ?C
Temperature – storage -25…+55 ?C
Temperature – shipping -40…+70 ?C
MTBF (mean time between failures) >1.000.000 hours
CONNECTORS
Connector FM IEC-female
Connector TV IEC-male
Connector RF IEC-female
Adaptable Cable Diameters – Inner Conductor 0.58…1.15 mm
Adaptable Cable Diameters – F-female 0.6…1.13 mm
Adaptable Cable Diameters – Outer Conductor 3.7…5.8 mm
Adaptable Cable Diameters- Jacket 4.5…7.2 mm
MECHANICAL
Tensile Strength – Inner Conductor 1 (?) > 25 @ 0.75mm N/mm2
Tensile Strength – Inner Conductor 2 (?) > 50 @ 1.13mm N/mm2
Main material Zinc diecast
Dimensions product (H x D x W) 70.6 x 70.6 x 21.9 mm
Packing QTY 10
Packaging Height 0.035 m
Packaging Width 0.071 m
Packaging Depth 0.071 m
Net Weight 0.096 kg
Tara Weight 0.009 kg
Total Weight 0.105 kg
