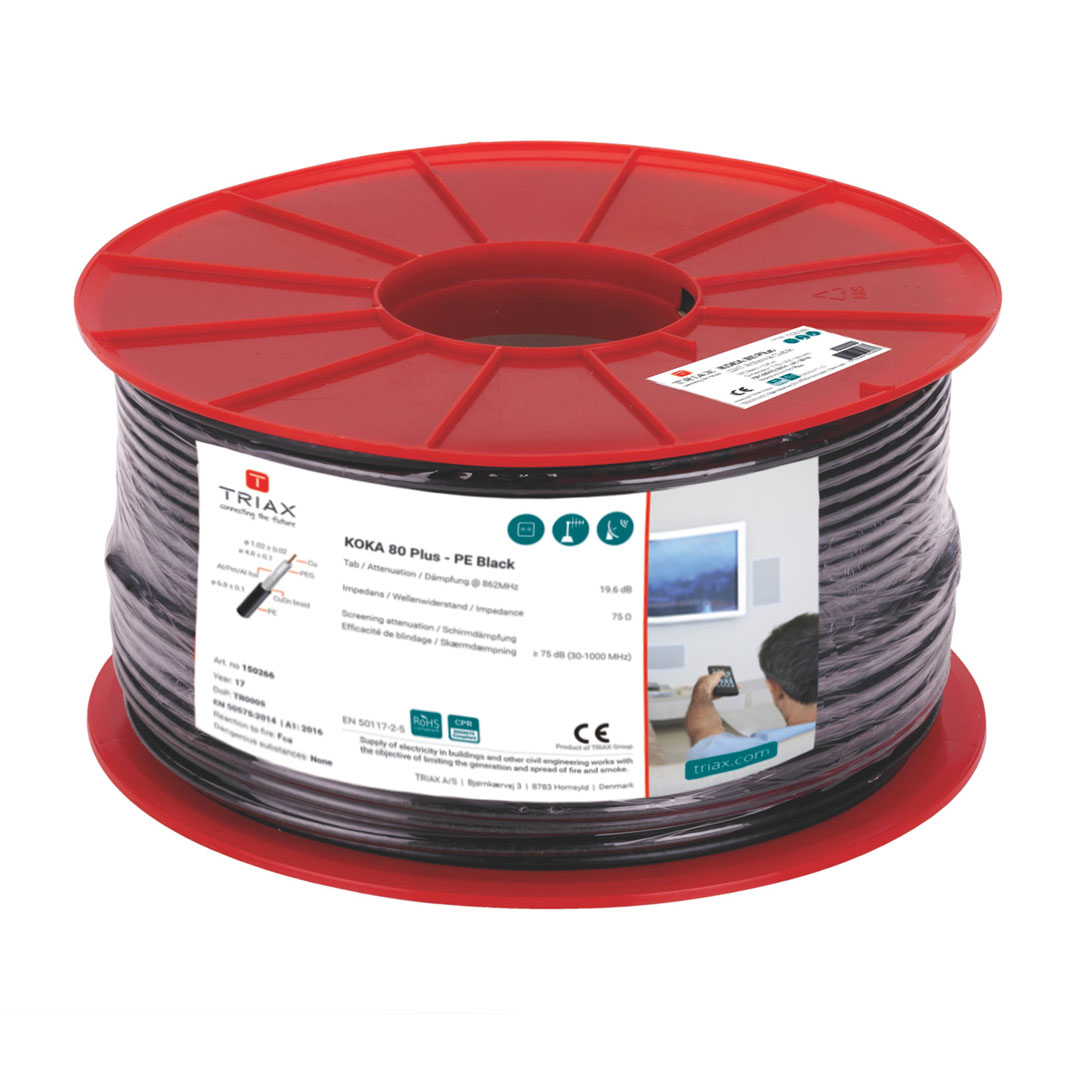

Triax Koka RG6-PVC Black 305m Reel, CCS Coax Cable – Satellite Cable
Product description:
RG 6 – PVC black?- 305m reel
??ONLY available for Middle East and Africa
TRIAX RG 6 PVC type is a premium cable for in-house installations. The wide frequency range allows the cable to carry signals for both television, radio, satellite receivers etc., whether the signal comes from satellite, terrestrial antenna or cable-tv.
This cable is designed with a center conductor of Copper Clad Steel (CCS) which offers high mechanical strength. Due to the gas injected foam, which is far superior to the chemical foam, the copper cladding carries the signals without great losses. A good quality conductor and appropriate gas injected dielectric grants velocity ratio higher than 80%.
For outdoor installation we highly recommend the coax cables with PE jacket, as this material simply is more resistant to weather conditions.
Specifications
ORDER INFORMATION?
EAN Number 5702661500367?
CONSTRUCTION?
Inner conductor – material CCS?
Inner conductor – dimension 1.02 ? 0.01 mm?
Dielectric – material Foam PE?
Dielectric – dimension 4.57 ? 0.05 mm?
1. Shield foil ? material Alu/PET bonded?
1. Shield foil – overlap 20 %?
2. Shield braid – material Alu?
2. Shield braid – coverage 60 ? 3 %?
Jacket – material PVC?
Jacket ? dimension 6.86 ? 0.15 mm?
SHIELDING?
Screening attenuation @ 30-1000 MHz > 75 dB?
Screening attenuation @ 1000-2000 MHz > 65 dB?
Screening attenuation @ 2000-3000 MHz > 55 dB?
CHARACTERISTICS
