Triax SCS 3 3 way splitter (Connector F) 5-2400MHz
KSh836.00

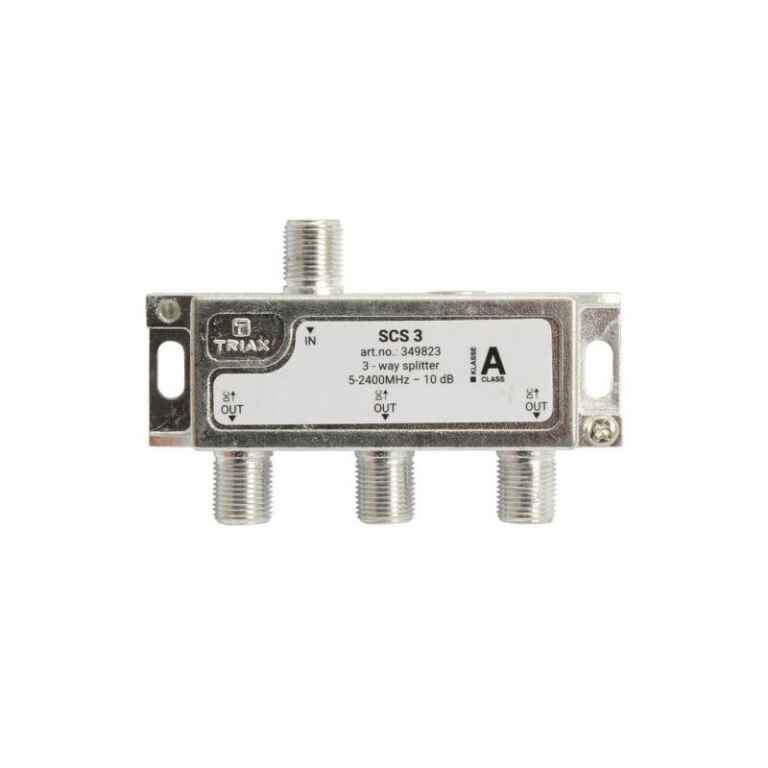

SCS 3 – 3 way splitter
TRIAX coaxial splitter ideal for SAT-IF and MATV distribution networks.
Frequency range 5-2400 MHz
DC pass via diodes from all outputs
High shielding against ingress noise like radiated by LTE mobile
High quality die-cast housing tin (Sn) coated with solder shield bottom plate
Grounding clamp terminals
Formerly triax-349803
?Specifications
ORDER INFORMATION
EAN Number 5702663498235
FREQUENCY RANGE
Frequency range 5…2400 MHz
OPERATIONAL
Application SAT-IF, MATV 2.4Ghz +DC(out->in)
Screening Efficiency EN50083-2 (Class A)
DC Passthrough Yes (max. 0.5A/24V)
Certification EN 50581:2012 (RoHS II)
Environment Indoor
Temperature – operating -30?+60 ?C
LOSS
Insertion loss (in-out) 5-40 Mhz 6.5 dB
Insertion loss (in-out) 40-1000 Mhz 7.5 dB
Insertion loss (in-out) 1000-2150 MHz 10.0 dB
Insertion loss (in-out) 2150-2400 Mhz 10.5 dB
ISOLATION
Isolation (tap-tap) 5-40 MHz 23 dB
Isolation (tap-tap) 40-1000 MHz 22 dB
Isolation (tap-tap) 1000-2150 MHz 23 dB
Isolation (tap-tap) 2150-2400 MHz 23 dB
RETURN LOSS
Return loss (in-out) 5-40 MHz 10.0 dB
Return loss (in-out) 40-1000 MHz 12.0 dB
Return loss (in-out) 1000-2150 MHz 13.0 dB
Return loss (in-out) 2150-2400 MHz 13.0 dB
CONNECTORS
Number of inputs 1
Number of outputs 3
Connector Type F-female (IEC 61 169-24)
MECHANICAL
Main material Zinc diecast/Sn plated
Packaging Polybag
Packing QTY 1
Product Height 47 mm
Product Width 74 mm
Product Depth 17 mm
Packaging Height 0.090 m
Packaging Width 0.055 m
Packaging Depth 0.020 m
Packaging Volume 0.000 m3
Net Weight 0.050 kg
Tara Weight 0.003 kg
Total Weight 0.053 kg
ELECTRICAL
Impedance 75 ?
SHIELDING
Shielding effeciency VHF/UHF >85 dB
