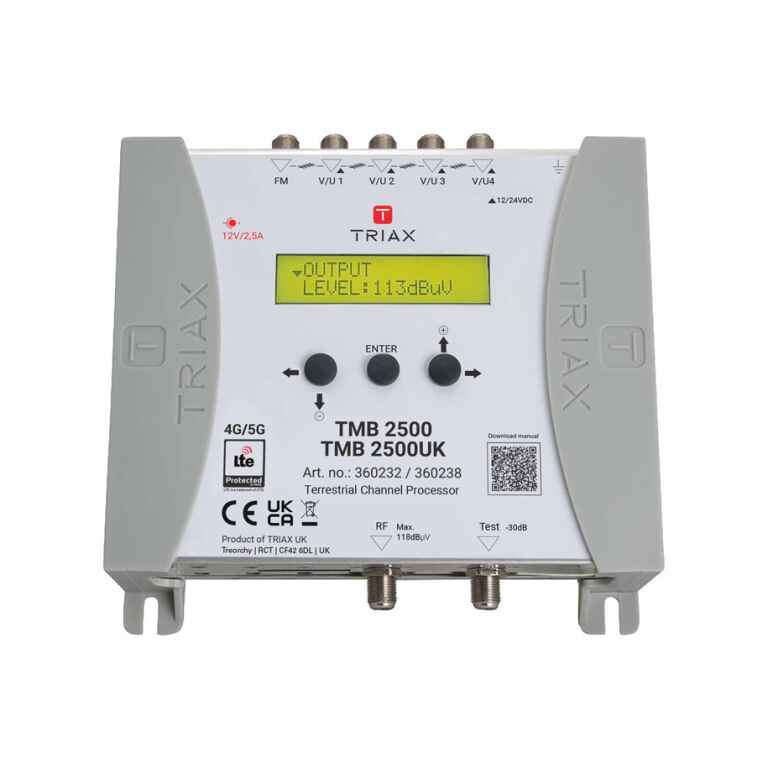

Triax TMB 2500UK Programmable amplifier central 5…
KSh62,064.00
Unleash the best TV experiences with TMB 2500UK. The programmable terrestrial channel processor can receive TV signals from multiple terrestrial antennas. It combines filtering, conversion, level equalization, and amplification.
This very compact unit is recommended for large TV distribution networks in residential buildings to offer excellent TV signal quality.
A plug adapter is included as a gift.
New and updated features
Higher gain and output level to directly connect more users to the coaxial distribution network
Pooling up to 6 MUXs improves flexibility for optimal coverage of special terrestrial broadcasting situations
Greater selectivity for suppression of adjacent channel interference the latest in Programmable Multiband Amplifiers
Higher gain 70 dB
Higher output level, up to 131 dB?V, to directly connect more users to the coaxial distribution network
Features
5 antenna inputs: FM / 4xVHF / UHF
Flex Matrix for over 50 channels with 32 filters per 1 … 6 MUX allows processing of individual channels to any output channel.
CAG in real time and separately on all multiplexes
50 dB rejection of the adjacent channel
Automatic selection of LTE 700-5G / 800-4G reject filters
Slope to compensate for the frequency dependent tilt of the coaxial cable network.
Access lock by security code.
Switchable remote power 0/12/24 VDC.
SD card slot for saving and reloading individual configuration settings.
Specifications
