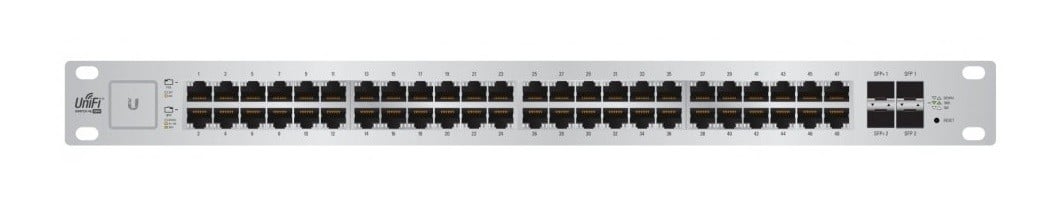

Ubiquiti Networks UniFi US-48-750W network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Silver

Ubiquiti
US-48-750W – good selection guaranteed
The US 48 750W is distinguished by its efficiency, PoE+ support and
intelligent switching for expanding networks.

The advanced Ubiquiti UniFi Switch solutions were designed to build and
expand the capabilities of networks. The US-48-750W switch is fully
manageable. It is distinguished by high efficiency and intelligent switching
for dynamically expanding networks.

Perfect parameters

The switch is equipped with 48 Gigabit Ethernet ports and 2 SFP ports. It
supports IEEE 802.3af and IEEE 802.3at standards. The model supports 10G and
PoE. Its switching capacity is 140 Gbit/s. The device is intended for rack mounting.
It is CE, FCC and IC certified. Thanks to its durable components it may be
used at temperatures ranging from -5 to 40 degrees Celsius and humidity of up
to 95%.

Key features
efficiency without compromise
advanced management
fibre optics connectivity
PoE+ support

Structure example

Comparison


  US-24-250W US-24-500W US-48-500W US-48-750W
Total Non-Blocking Throughput 26 Gbps 26 Gbps 70 Gbps 70 Gbps
SFP+ Ports N/A N/A 2 2
SFP Ports 2 2 2 2
Max. Power Consumption 250W 500W 500W 750W

PoE Switch Compatibility for UAPs and UVCs
AP/Camera
Model US-8 US-8-60W US-8-150W US-16-150W US-24-250W US-24-500W US-48-500W US-48-750W
UVC-G3

✓ ✓ ✓ ✓ ✓ ✓
UVC-G3-DOME ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP

✓ ✓ ✓ ✓ ✓ ✓
UAP-LR

✓ ✓ ✓ ✓ ✓ ✓
UAP-PRO ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-LITE¹ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-LR¹ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-PRO ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-M ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-M-PRO ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-IW² ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-IW-PRO² ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-HD

✓ ✓ ✓ ✓ ✓ ✓

✓ Compatible with the UniFi switch.

 Requires Instant 802.3af Gigabit PoE Converter:
INS-3AF-I-G
 or INS-3AF-O-G
.

 Requires 802.3at power; switch provides 802.3af only.

Note:

¹ UAP-AC-LITE and UAP-AC-LR models manufactured before September 2016
require the Instant 802.3af Gigabit PoE Converter.

² For the UAP-AC-IW and UAP-AC-IW-PRO PoE passthrough is supported by all
of the switches listed above except for models US-8 and US-8-60W.
