UHF-UHF-VHFmix Mast Amplifier 28dB LTE 5G
Mast Amplifier 28dB UHF-UHF-VHFmix LTE 5G Televes 561721

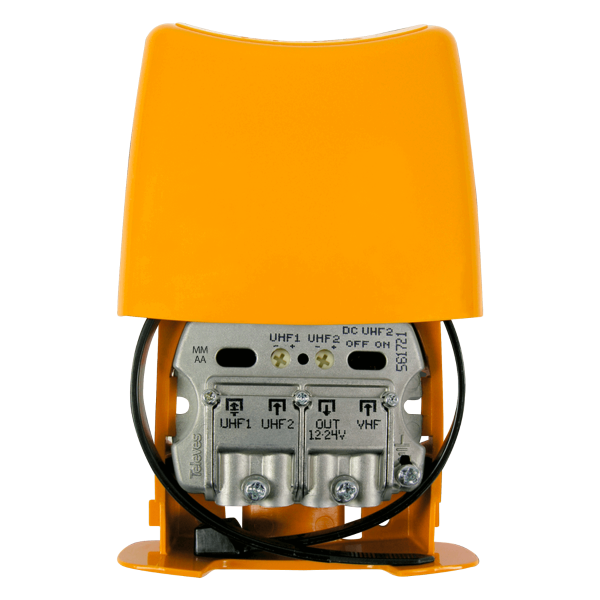

NanoKom 3 input mast amplifier (UHF-UHF-VHFmix) to amplify and mix terrestrial TV signals from various antennas.
It offers 28dB of gain (adjustable 0..20 dB) and 108dB?V of maximum output. It has a 5G LTE filter for the 2nd Digital Dividend. Switchable ON/OFF DC current pass, ideal for BOSS antennas. It can be powered at 12-24 Vdc.
Its assembly is very simple as it has EasyF type connectors (flange), to insert the stripped cable.
NanoKom 3-input Mast Amplifier (UHF-UHF-VHFmix) with 28dB Gain and 5G LTE
What are the main characteristics of the Televes 561721 Amplifier?
Separate amplification and very low noise figure, thus respecting signal quality
Ultra-small ergonomic design
EasyF connection system
Can be powered in the 12 V-to-24 V range
Fully automated manufacturing, subject to the most stringent quality controls
High-screening Zamak chassis
LTE filter to remove mobile phone interference
ON/OFF switch to allow DC pass towards one of the UHF inputs for the powering of a BOSS system
Easy mounting. Equipped with a clamp for mast mounting
Resistant ABS-plastic orange case for outdoor installation
?
What technical specifications does the Televes 561721 Mast Amplifier have?
Bands UHF 1 UHF 2 VHF
Frequency margin MHz 470…694 470…694 47…254
Gain dB 28 -1.5
Gain adjustment range dB ? 0…20 –
Max.output level
dB?V /
dBmV
DIN 45004B 108 –
EN 50083 115 –
10 CH DVB-T – – –
2 CH DVB-T – – –
Output level regulation margin dB – – –
Noise figure dB 6.5 –
Power supply V /mA 12 … 24 / 50
Max current through inputs OFF mA 0
ON – 40 –
DC OUT -> DC SAT – – –
Protection Level IP 23
Temperature operat. limits
?C
-5 … +45
?
