Universal Programming Televes
KSh44,770.00

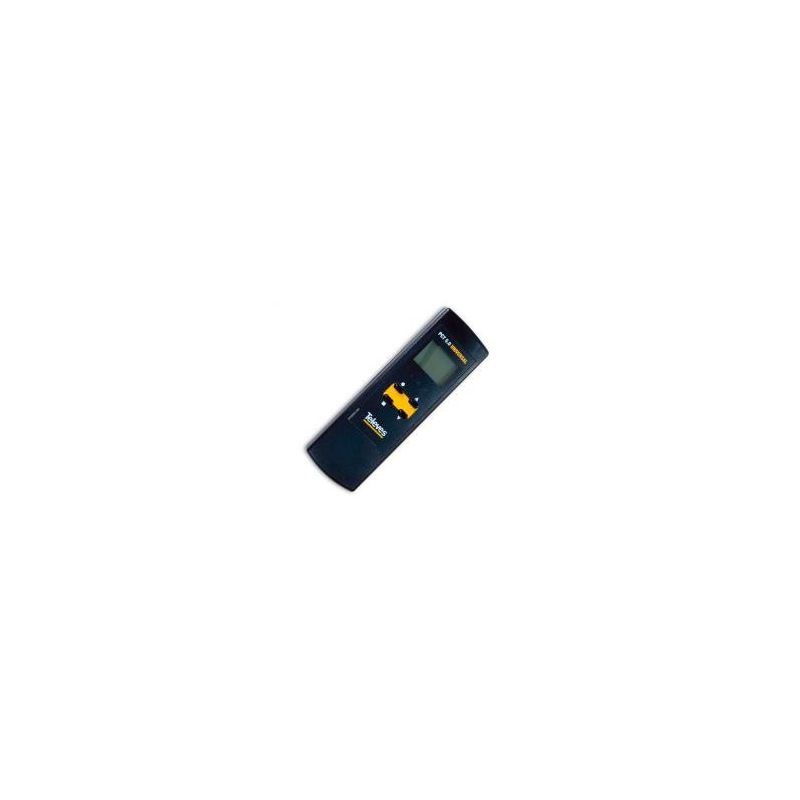

The programmer control ref. 7234 (PCT 5.0) is the “universal” tool for the configuration of all Telev?s products, which require external equipment for their configuration.
El mando programador ref. 7234 (PCT 5.0) es la herramienta ?universal? para la configuraci?n de todos los productos Telev?s (AvantHD, Avant3, T05, T0X…), que precisen de un equipo externo para su configuraci?n.
En el momento de la conexi?n, el mando programador detectar? autom?ticamente a que equipo est? conectado, adecuando sus men?s de configuraci?n a la referencia a programar en cuesti?n.
Deber? remitirse al manual de instrucciones del equipo que quiera programar, para ver la forma de proceder en cada caso.
El mando, incluye un latiguillo de programaci?n con conectorizaci?n RJ45 a RJ45.
Features
Featuring built in memory to allow copy & paste of
configurations.
Backlit display.
Easy of use menus.
RJ45 patch cable included.
Related products
-
Add to cartGPV 950 L are high output Distribution Amplifiers for use in CATV distribution networks in multi-dwelling premises primarily. Switching of the basic gains enables to configure the amplifiers as line extender in different configurations. All functional parts and setting elements are implemented on the printed board. Thus you do not need external accessories for configuration and operation of the amplifier in generally. The L type is line fed only via the RF input.
Main Features
One-board technology: all functionalities on one board implemented
Rotary switches in 1 dB steps for settings of attenuation and equalization
Downstream: 85…1006 MHz by max. output level 113 dB?V
Upstream: 5-65 MHz, max. output 120 dB?V (high load performance for DOCSIS 3.x)
Basic gain selectable via jumpers
Return path mode selectable: active / passive / off
Integrated cablesimulator
State of the art 1 GHz technology
Excellent and stable amplifier characteristics
Low power consumption because of high efficient switching PSUs
Extensive ESD and surge protection
Specifications
GPV 950 L
CHARACTERISTICS
Output level CSO @ 60 dB IMD (42 ch) flat 114/116 dB?V
Output level CSO @ 60 dB IMD (42 ch) Slope 0/7 dB 113/115 dB?V
Output level CTB @ 60 dB IMD (42 ch) flat 113/115 dB?V
Output level CTB @ 60 dB IMD (42 ch) Slope0/7 dB 113/115 dB?V
Output level return path 120 dB?V
FREQUENCY
Frequency range – Forward 87…1006 MHz
Frequency range 40/85…1006 MHz
Frequency range return path 5…65 MHz
Frequency response ? 1.0 dB
GAIN
Gain forward – Interstage 41/33 dB dB
Gain – Return path 32/26 /-2 dB
Noise figure – Forward (VHF I “off”) 6,0 dB
Slope – Interstage DS 0/3/7/10, US 0/3/6/9 dB
LOSS
Attenuation forward – line equalizer at input 33 dB
Equalization 0…15 dB, 1 dB steps by rotary switches
RETURN LOSS
Return loss – Input (-1,5 dB / octave) >18 dB
Return loss – Output (-1,5 dB / octave) >18 dB
ELECTRICAL
Impedance 75 ?
OPERATIONAL
Certification CE, RoHS, Class A
Class II
LED indicator PSU green inside
Operating temperature range -25… +55 ?C
AC Supply voltage 28-65 VAC via RF input VAC
Power Consumption (typ.) 15 W
Reference standards EN 50083-2, EN 60065, EN 60728-11, EN 60728-3
Insulation Class II
CONNECTORS
Connector Type F-female
Number of inputs 1
Number of outputs 1
RF connector – Test point input: bi-directional -20 dB
RF connector – Test point output: directional -20 dB
MECHANICAL
Colour silver
Product Depth 70 mm
Dimensions carton (H x D x W) 240x167x78 mm mm
Packaging Depth 0,080 m
Packaging Height 0,240 m
Total Weight 1,750 kg
Packaging Width 0,170 m
Main Material zinc die-cast enclosure
Net Weight 1,600 kg
Packing QTY 1
Tara Weight 0,150 kg
Packaging Volume 0,003 m3
Weight (kg) 1 kg
Weight net 1.3 kg kg
Product Width 180 mm
Product Height 145 mm -
Add to cartHigh Output Distribution Amplifier with active return path
GPV 950 are high output Distribution Amplifiers for use in CATV distribution networks in multi-dwelling premises primarily. Switching of the basic gains enables to configure the amplifiers as line extender or as cascade amplifier in trunk position. All functional parts and setting elements are implemented on the printed board. Thus you do not need external accessories for configuration and operation of the amplifier in generally. That basic type is mains fed via Euro-plug.
Main Features
One-board technology: all functionalities on one board implemented
Rotary switches in 1 dB steps for settings of attenuation and equalization
Downstream: 85…1006 MHz by max. output level 113 dB?V
Upstream: 5-65 MHz, max. output 120 dB?V (high load performance for DOCSIS 3.x, KDG-Class D)
Basic gain selectable via jumpers
Return path mode selectable: active / passive / off
Integrated cablesimulator
State of the art 1 GHz technology
Excellent and stable amplifier characteristics
Low power consumption because of high efficient switching PSUs
Extensive ESD and surge protection
Specifications
GPV 950
CHARACTERISTICS
Output level CSO @ 60 dB IMD (42 ch) flat 114/116 dB?V
Output level CSO @ 60 dB IMD (42 ch) Slope 0/7 dB 114/116 dB?V
Output level CTB @ 60 dB IMD (42 ch) flat 113/115 dB?V
Output level CTB @ 60 dB IMD (42 ch) Slope0/7 dB 113/115 dB?V
Output level return path 120 dB?V
FREQUENCY
Frequency range – Forward 87…1006 MHz
Frequency range 85…1006 MHz
Frequency range return path 5…65 MHz
Frequency response ? 1.0 dB
GAIN
Gain forward – Interstage 41/33 dB dB
Gain – Return path 32/26 /-2 dB
Noise figure – Forward (VHF I “off”) 6,0 dB
Slope – Interstage DS 0/3/7/10, US 0/3/6/9 dB
LOSS
Attenuation forward – line equalizer at input 41 dB
Equalization 0…15 dB, 1 dB steps by rotary switches
RETURN LOSS
Return loss – Input (-1,5 dB / octave) >18 dB
Return loss – Output (-1,5 dB / octave) >18 dB
ELECTRICAL
Impedance 75 ?
OPERATIONAL
Certification CE, RoHS, Class A
Class II
Operating temperature range -25…+55 ?C
AC Supply voltage 190…264 VAC
Power Consumption (typ.) 15 W
Reference standards EN 50083-2, EN 60065, EN 60728-11, EN 60728-3
Insulation Class II
CONNECTORS
Connector Type F-female
Number of inputs 1
Number of outputs 1
RF connector – Test point input: bi-directional -20 dB
RF connector – Test point output: directional -20 dB
MECHANICAL
Colour silver
Product Depth 70 mm
Dimensions carton (H x D x W) 240x167x78 mm mm
Packaging Depth 0,080 m
Packaging Height 0,240 m
Total Weight 1,750 kg
Packaging Width 0,170 m
Main Material zinc die-cast enclosure
Net Weight 1,600 kg
Packing QTY 1
Tara Weight 0,150 kg
Packaging Volume 0,003 m3
Weight (kg) 1 kg
Weight net 1.3 kg kg
Product Width 180 mm
Product Height 145 mm -
Ikusi SZB-180 Multi-channel amplifier UHF SZB
KSh16,618.00Add to cartIKUSI SZB-180. Modular Headend amplifier channel TV and Radio. TV amplifiers single-channels, multichannels, modulators and Sat-IF combiner ready for digital dividend.
Features
TV single-channel amplifiers, Z input de-multiplexing and Z output multiplexing. Adjacent channel operation allowed in UHF band.
FM Radio and DAB Amplifiers.
It is advisable to place the amplifiers on the base-plate following an increasing order of number of channel (frequency). The RF output of the headend will be taken from the last one of the modules ordered in this way.
Especially created for amplification of combined analog and digital channels.
Output voltage +24 VDC is automatically connected to the RF modules through a connecting bar at the base-plate.
Toolless mounting.
Technical specifications
REF. 2248
Bandwidth 2 UHF channels 3 UHF channels 4 UHF channels
Gain dB 60
Noise figure dB 5
Output level dB?V (2x) 118 (2x) 116 (2x) 115
Z Output return loss dB ? 6
Consumption mA 100
Dimensions mm 190 x 38 x 87?
MANUAL/DATASHEET
