Brand: IKUSI
IKUSI
Showing 1–60 of 95 results
-
Ikusi 17VATCAPH1 100m coil Coaxial 17VATCAPH1
KSh6,098.00Add to cartIKUSI 17VATCAPH1. Coaxial 17VATCAPH1
Features
100m coil
Coaxial 17VATCAPH1
Technical specifications
REF. 2522 2521 2506 2016 2493 2505 2514
Standard EN50117-2-4 EN50117-2-4 EN50117-2-4 EN50117-2-4 EN50117-2-4 EN50117-2-5 EN50117-2-5
CPR Euroclass Eca Eca Eca Eca Eca Eca Fca
Screening class B B B B B B B
Inner conductor Diameter mm Cu 1.13 Cu 1.10 Cu 1.13 Cu 1.13 CCS
(Copper-plated steel) 1.13 Cu 1.10 Cu 1.6
Dielectric Diameter mm PE 4.8 PE 5 PE 4.8 PE 4.8 PE 4.8 PE 5 PE 7.1
Outer conductor Diameter mm Cu (tape) + Cu (braid) 5.3 Al(tape) + Al (braid) 5.6 Cu (tape) + Cu (braid) 5.3 Cu (tape) + Cu(braid) 5.3 Al(tape) + AI(braid) 5.4 Al (tape) + AI(braid) 5.6 Al(tape)+Al(braid) 7.8
Outer sheath Diameter mm PVC white 6.8 PVC white 7 Polyolefin black (LSOH) *
6.8 PVC black 6.8 PVC white 6.8 PE black 7 PE black 10
Attenuation/100m
50 MHz
200 MHz
300 MHz
470 MHz
862 MHz
1000 MHz
1750 MHz
2150 MHz dB 4.5
8.4
10.3
12.8
17.0
19.2
25.7
28.1 4.6
8.5
10.5
13.0
18.0
19.5
26.0
29.8 4.5
8.4
10.3
12.8
17.0
19.2
25.7
28.1 4.5
8.4
10.3
12.8
17.0
19.2
25.7
28.1 4.6
8.5
10.5
13.0
18.0
19.5
26.0
29.8 4.6
8.5
10.5
13.0
18.0
19.5
26.0
29.8 3.1
6.2
7.3
9.2
13.3
14.2
19.5
21.6
Supply unit reel100m reel100m reel100m reel100m reel100m reel100m reel200m?
MANUAL/DATASHEET
-
Add to cartIKUSI ABT-210. Outlets ARTU series.
Features
Mounting of the outlets without embedding the body in the wall (ARTUs models)
??
MANUAL/DATASHEET
-
Add to cartIKUSI ADA-HTI. Special bridges kit to install ClassA modules in HTI BACK-500 base
Features
Special bridges kit to install ClassA modules in HTI BACK-500 base?
MANUAL/DATASHEET
-
Ikusi AFI-190 Independent amplifier IF-SAT
KSh14,084.00Add to cartIKUSI AFI-190. Sat-IF Combiner/Amplifier. Unit to amplify a satellite polarity
Features
1 satellite 950-2450 MHz input port, with gain adjustment potentiometer;1 terrestrial coupling 5-790 MHz input port;
1 satellite+Terrestrial output port;
1 output test port.
Line powering of LNB. Voltage/tone injection for selection of polarity and band by rotary commutator.
Universal alternating power supply. Electrical safety protection level Class II. Insertable power cord with bipolar plug.
Plastic box with protective cover. F type connectors.
Indoor mounting through an fixing hanger.
Technical specifications
REF. 3461
TV frequency band MHz 5 – 790
SAT frequency Band MHz 950 – 2450
Inputs (TV and SAT) ? 2
Salida (TV+SAT) ? 1
TV+SAT output test dB -30
TV Gain (passive) dB -1
SAT Gain dB > 34
SAT gain adjustment dB 0 – 15
Output level (IMD3 -35 dB, EN 50083-3) dB?V 120
Input/output return loss dB ? 6
Noise figure dB < 8 Mains supply voltage VAC 100 - 240 Regulation type ? Switched mode Insertable Voltage/Tone to SAT input port ? 0V ; 13V+22kHz ; 18V+22kHz ; 18V ; 13V Max LNB power current mA 200 (+13 VDC / +18 VDC) Consumption W < 6 Dimensions mm 120 x 85 x 50 ? MANUAL/DATASHEET -
Add to cartIKUSI APB-112-M. Power supplies ?micro? APB series. Switch mode power supplies for mast amplifiers. Smaller size with terrestrial and satellite inputs.
Features
The smallest on the market.
It allows installation in any junction box.
Optimum power consumption. Low power switch mode.
Mounting without tools.
1RF input connector + DC output port / 1 or 2 RF outputs ports.
Technical specifications
REF. 3436
Regulation type switch mode
Output 1
Mains voltage (50 Hz) VAC 100 – 240
Output voltage VDC +12 (?5%)
Output voltage mA 200
Frequency range MHz 47 – 2400
RF insertion loss dB ? 1.5
Current pass through mA 300
Efficiency % >70
Dimensions mm 50 x 50 x 25?
MANUAL/DATASHEET
-
Ikusi ATP-190-C48 Amplifier 1 input 1 output…
KSh7,230.00Add to cartIKUSI ATP-190-C48. Apartament amplifiers ATP190 series. Models for terrestrial and satellite signals, adapted to the 1st and 2nd Digital Dividend.
Features
Models adapted to the 1st and 2nd Digital Dividend.
Terrestrial and satellite outputs.
Gain adjustment potentiometers.
Return path.
DC transit.
Technical specifications
Model? ATP190-C60
ATP190-C48 Ref.?? ATP190 series
3589 Frequencies MHz 47 – 790 950 – 2400
3590 47 – 694
Input 1
Output 1
Gain dB Terr: >18 Sat: >22
Gain adjustment dB Terr: >10 –
Output level dB?V Terr: 106
IMD3 -60dB (DIN 45004B) Sat: 112
IMD3 -35dB (EN 50083-3)
Return path frequency MHz 5 – 30
Noise figure dB <5 <6 Mains supply voltage VAC 100 - 240 DC transit mA 500 Consumption W <3 Dimensions mm 135 x70 x 30 ? MANUAL/DATASHEET -
Add to cartIKUSI ATP-200-C48. Apartment amplifiers for VHF and UHF signals. It has 2 outputs.
Features
Models adapted to the 1st and 2nd Digital Dividend.
TV amplifier.
1 RF input ? 2 RF outputs.
Gain with adjustment potentiometer.
Mains powered, 50/60 Hz. Mains lead with bipolar plug.
External plastic box. F type connection. It has an adapter for easy attachment to wall.
Technical specifications
MODEL REF.? Serie ATP200ATP200-C60 ATP200-C48 3434 Frequency range MHz 47 – 790 (1st dividend)
3584 47 – 694 (2nd dividend)
Inputs 1
Outputs 2
Gain dB 25
Gain adjustment dB 15
Output level dB?V 103
Noise figure dB <4 Mains supply voltage VAC 100 - 240 Consumption W <1,5 Dimensions mm 90 x 58 x 27 ? MANUAL/DATASHEET -
Ikusi ATP-290-C48 Amplifier 1 input 2 outputs…
KSh8,132.00Add to cartIKUSI ATP-290-C48. Apartament amplifiers ATP290 series. Models for terrestrial and satellite signals, adapted to the 1st and 2nd Digital Dividend.
Features
Models adapted to the 1st and 2nd Digital Dividend.
Terrestrial and satellite outputs.
Gain adjustment potentiometers.
Return path.
DC transit OUT1.
Technical specifications
Model? ATP290-C60
ATP290-C48 Ref.? ATP290 series
3592 Frequencies MHz 47 – 790 950 – 2400
3593 47 – 694
Input 1
Outputs 2
Gain dB Terr: >14 Sat: >18
Gain adjustment dB Terr: >10 –
Output level dB?V Terr: 102
IMD3 -60dB (DIN 45004B) Sat: 108
IMD3 -35dB (EN 50083-3)
Return path frequency MHz 5 – 30 (OUT1)
Noise figure dB <5 <6 Mains supply voltage VAC 100 - 240 DC transit mA 500 (OUT1) Consumption W <3 Dimensions mm 135 x70 x 30 ? MANUAL/DATASHEET -
Add to cartIKUSI ATP-400-C48. Apartament amplifiers ATP400 series. Models for terrestrial signals, adapted to the 1st and 2nd Digital Dividend.
Features
Models adapted to the 1st and 2nd Digital Dividend.
Terrestrial signals.
Gain adjustment potentiometers.
Technical specifications
Mode Ref.? ATP400 series
ATP400-C60 3595 Frequencies MHz 47 – 790
ATP400-C48 3596 47 – 694
Input 1
Output 4
Gain dB >22
Gain adjustment dB >15
Output level dB?V 103
IMD3 -60dB (DIN 45004B)
Noise figure dB <4 Mains supply voltage VAC 100 - 240 Consumption W <3 Dimensions mm 135 x 70 x 30 ? MANUAL/DATASHEET -
Add to cartIKUSI AV-020. Attenuator variable 0-20 dB in VHF-UHF. Constant impedance. F-M
Features
Attenuator variable 0-20 dB in VHF-UHF.
9,5 mm ?
Constant impedance.
Female-Male?
MANUAL/DATASHEET
-
Ikusi BACK-500 Base-plate for HTI Headend
KSh26,412.00Add to cartIKUSI BACK-500. Base-plate for HTI Headend. The BACK-500 base-plate allows to fix mechanically the HTI product range modules, to distribute the supply lines and to communicate the different modules that are inserted in the headend.
Features
The base-plate is formed by two parts:
1. Backplane
2. USB bridge
The backplane is in charge of fixing the modules, distributing the power supply and carrying the communication lines towards the USB bridge.
The USB bridge in in charge of connection all the modules that are inserted in the base-plate?with the master module.
Interconnected base-plate, does not need alimentation bridges between modules.
The base-plate can be fixed to the wall or in a rack frame by means SR-HTI of fixing accessories (joining 2 base-plates.
Technical specifications
REF. 3866
Number of solts 5
Connectors type PCIe
Dimensions 210 x 257 x 24 mm
Packaged weight 1 kg?
MANUAL/DATASHEET
-
Add to cartIKUSI BAP-200. Hooked-support for SCF-085. Plate 200x200x2 mm and four M12 treaded hooks
Features
Hooked-support for SCF-085.
Plate 200x200x2 mm and four M12 treaded hooks?MANUAL/DATASHEET
-
Add to cartIKUSI BAS-913. Base plate with power connecting bar. Capacity: 1 power supply+2 RF modules SZB; or 3 RF modules
Features
Base plate with power connecting bar. Capacity: 1 power supply + 2 RF modules SZB; or 3 RF modules
??
MANUAL/DATASHEET
-
Add to cartIKUSI BAS-915. Base plate with power connecting bar. Capacity: 1 power supply+4 RF modules SZB; or 5 RF modules
Features
Support base with power bar. Capacity: 1 feeder + 4 RF modules; or 5 RF modules. -
Add to cartIKUSI BBT-100. Titable ridge-tale base for ?35 to 40 mm masts
Features
Titable ridge-tale base for ?35 to 40 mm masts?MANUAL/DATASHEET
-

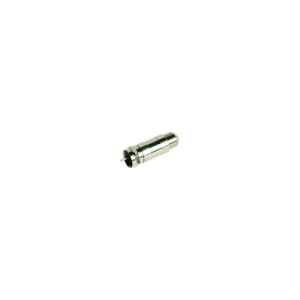

Add to cartIKUSI BCF-060. 60V AC/DC block ?F? type male-female connector
Features
60V AC/DC block ?F? type male-female connector
Load to place in connectors with tension?
MANUAL/DATASHEET
-
Add to cartIKUSI BFT-100. Hooked, triangular fixed base side 225mm. Three bolts for securing
Features
Hooked, triangular fixed base side 225mm.
Three bolts for securing?MANUAL/DATASHEET
-
Add to cartIKUSI BMA-200. Single angle pipe with 4 screws plate and polythene cap
Features
Single angle pipe with 4 screws plate and polythene cap?MANUAL/DATASHEET
-
Add to cartIKUSI BTA-225. Screwed, triangular fixed base side 225mm. Three bolts for securing
Features
?
Screwed
Triangular fixed base side 225mm.
Three bolts for securing?MANUAL/DATASHEET
-
Ikusi CAD Elbow plug
KSh108.00 -
Add to cartIKUSI CCF-111. RG11 Compression connector. Use cable CCT-125
Features
RG11 compression connector for CCT-125 cable
UCR-600 compression tool?
MANUAL/DATASHEET
-
Add to cartIKUSI CFC-600. RG6 Compression connector for remaining cables
Features
Compression connector for RG6 type cables.
UCR-600 compression tool?
MANUAL/DATASHEET
-
Add to cartIKUSI CFR-680. Screw-on plug. Use cable CCI
Features
Screw-on plug. Use cable CCI
?MANUAL/DATASHEET
-
Add to cartIKUSI CHD-950. Elbow jack
Features
9.5 mm female angled connector.
For RG6 type cables?
MANUAL/DATASHEET
-
Ikusi COR-150 Schuko network cable 1.8m
KSh1,844.00Add to cartIKUSI COR-150. Accessories for HTI Headend. COR-150. Schuko network cable.
Features
Accessories for HTI Headend. COR-150.
Schuko network cable.
1.8m?
MANUAL/DATASHEET
-
Ikusi CTF-075 F Load 75 Ohmios
KSh108.00 -
Add to cartIKUSI CTF-125. RG11 crimp connector. Use cable CCT-125
Features
Crimp connector for RG11 type cables.
Crimp tool UCF-170?
MANUAL/DATASHEET
-
Add to cartIKUSI CTF-190. RG6 crimp connector for remaining cables
Features
Crimp connector for RG6 type cables.
Crimp tool UCF-170?
MANUAL/DATASHEET
-
Ikusi DMS-300 Terrestrial satellite combiner
KSh3,094.00Add to cartIKUSI DMS-300. TV – IF Combiners – 2150 MHz
Features
Nickel-plated zinc die cast housing.
Grounding facilities.
Female F ports.
Technical specifications
? ? ? ? ? ? ? ? ?DMS-300
RF inputs 3
TV (5 ? 862 MHz),
IF-1 (950 ? 2150 MHz),
IF-2 (950 ? 2150 MHz)
RF outputs? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? 2
? ? ? TV + IF-1??????? TV + IF-2
Insertion loss dB TV: ? 4, IF-1/IF-2: ? 2
Input isolation dB ? 25
Power passing to IF input/s ? Yes (18 V/500 mA max)
Dimensions mm 122 x 45 x 20?
MANUAL/DATASHEET
-
Add to cartIKUSI FAV-020. Variable 0-20 dB in VHF/UHF. Constant impedance. Female-Male.
Features
Variable 0-20 dB in VHF/UHF.
Constant impedance.
Female-Male.?
MANUAL/DATASHEET
-
Ikusi FAV-920 F 2.150 MHz Attenuator
KSh2,048.00Add to cartIKUSI FAV-920. F 2.150 MHz Attenuator
Features
Variable attenuator 0 to 18 dB.
Minimum attenuation: ? 1.5 dB (5-1000 MHz) and ? 4 dB (1001-2150 MHz).
Current flow
F male-female connectors.
Dimensions: 51x49x22 mm.?
MANUAL/DATASHEET
-
Add to cartIKUSI FLTE-481. Indoor filter frequency rejector 2nd Dividend
Features
Indoor filter frequency rejector 2nd Dividend
It prevents any possible interferences that could enter the TV
Pluggable
Specifications
REF. 1436
Frequency cut channel 48
Pass frequency band MHz 470…694
LTE frequency attenuation dB see Datasheet graph
Insertion losses dB
Dimensions mm 70 x 30 ?MANUAL/DATASHEET
-
Add to cartIKUSI FMM-100. F male connector F fast male.
Features
F male connector F fast male.
For RG6 cables. -
Add to cartIKUSI GMA-400. Wall-screwing clamp, length 40 cm for ? 45 mm masts
Features
Wall-screwing clamp, length 40 cm for ? ?45 mm masts?MANUAL/DATASHEET
-
Add to cartIKUSI GME-200. Wall support bracket for ? ?45 mm masts
Features
Wall support bracket for ? ?45 mm masts?MANUAL/DATASHEET
-
Add to cartIKUSI HDTC-694V. COMPACT serie antennas. Reduced size and easy to install.
Features?
The smallest antenna range FLASHD for reception of TV signals in the UHF band, formed by a dihedral reflector made up of four aluminium tubes and a?dipole (the same as the one in the FLASHD antenna).
For vertical and horizontal polarization, allowing variation of elevation angle.
Minimum packaging volume for transport and easy assembly without tools.
Versatility in the pallet from 30cm to the desired height, in increments of 10cm
Cable connection: F type connector. 1 screw-on plug and 1 rubber protection cap are supplied.
Clamping system for masts ? 25 to 50 mm
Technical specifications
REF. 1811 1811
Channels 21 – 48 (470-694 MHz) 21 – 60 (470-790 MHz)
Nominal gain dB 13
Front-to-back ratio dB ? 16
Beamwidth H / V 60? / 80?
Windload N 130 Km/h : 18
150 Km/h : 23
Length cm 80
Quantity boxed 10
Color green?
MANUAL/DATASHEET
-
Add to cartIKUSI HDTN-694V. NANO serie antennas. Reduced size and easy to install.
Features
The smallest antenna range FLASHD for reception of TV signals in the UHF band, formed by a dihedral reflector made up of four aluminium tubes and a dipole (the same as the one in the FLASHD antenna).
For vertical and horizontal polarization, allowing variation of elevation angle.
Minimum packaging volume for transport and easy assembly without tools.
Versatility in the pallet from 30cm to the desired height, in increments of 10cm
Cable connection: F type connector. 1 screw-on plug and 1 rubber protection cap are supplied.
Clamping system for masts ? 25 to 50 mm
Technical specifications
REF. 1825 1813
Channels 21 – 48 (470-694 MHz) 21 – 60 (470-790 MHz)
Nominal gain dB 12
Front-to-back ratio dB ? 16
Beamwidth H / V 60? / 80?
Windload N 130 Km/h : 15
150 Km/h : 20
Length cm 50
Quantity boxed 5
Color green?
MANUAL/DATASHEET
-
Ikusi HTA-125 47-862 MHz Broadband power amplifier
KSh42,086.00Add to cartIKUSI HTA-125. Power amplifier. Amplification of the signal generated by a headend of HTI modules.
Features
Amplification of RF signals of HTI headends.
Variable attenuation is shared on two interstage sections, featuring delayed behaviour on the first one. Maintenance of a low noise figure.
Extension input allows coupling of the wideband signal provided by another existing headend.
Technical specifications
REF. 3868
Bandwidth MHz 47 – 862
Gain dB 45
Interstage variable attenuator dB 0 – 20
Noise figure dB ? 6
Output level (IMD3 -60dB, DIN 45004B) dB ? 125
Output level (IMD2 -60dB, EN 50083-3) dB?V ? 120
Input test dB?V -20 ?1.5
Output test dB -30 ?1
Extension input Bandwidth MHz 47 – 862
Gain dB 6
Supply voltage VDC +24
Consumption mA 450
Operating temperature ?C -10… +45
RF and Test connectors ? Female F
Dimensions mm 230 x 195 x 32?
MANUAL/DATASHEET
-
Ikusi HTI-424 High Density Universal transmodulator
KSh403,656.00Add to cartIKUSI HTI-424. DVB-T/T2/S/S2/C to DVB-T/C, IPTV Transmodulator. It receives contents from 4 DVB-T/T2, DVB-S/S2 or DVB-C transponders/muxes, decrypts and broadcasts them in 4 DVB-T or DVB-C or on IPTV output channels.
Features
Versatile transmodulation of DVB-T/T2, DVB-S/S2 and DVB-C channels to DVB-T/DVB-C channels.
The HTI-424 module can receive 4 DVB-T/T2, DVB-S/S2 or DVB-C muxes and broadcasts them in 4 DVB-T or DVB-C or on IPTV output channels.
One module acts as the ?master? to ensure the configuration (remote or local through PC) is carried out at the complete headend level, through the IKUNET bus and not module by module.
It allows a future increase in services to be foreseen in order for the televisions to have them already on their lists, avoiding the need for retuning.
It has two Common Interface slots (EN 50221) for discretional decryption of programmes in accordance with the inserted CAM module.
It allows a video service to be sent with several different languages without taking up more space than that corresponding to an RF channel. The television shows ?a programme? for each language, avoiding the need for users to have to choose their ?language? on the television remote control.
It is compatible with the PC application: ?IKUSI HEADEND DISCOVERY? This instrument provides installers with a tool that allows them to detect the headend?s modules without having to modify the PC?s network configuration. (This can be downloaded from www.ikusi.tv).
It allows channel lineups to be created and managed remotely, ensuring that the lineup is completely customisable without having to work in-situ.
The four DVB-T/C output channels can be distributed onto any part of the band.
Total control of the multiswitch. Fitted with DiSEqC.
USB-300 to Ethernet adapter for local or remote configuration. Also, it cam be done through the Ethernet port.
Technical specifications
REF. 3863
Inputs 4 (or 1+loop through)
Input frequency range MHz DVB-T/T2 😕 47-862
DVB-S/S2 😕 950 – 2150
DVB-C :?????? 47-862
Input level dB?V 40 – 92
Symbol rate MS/s DVB-S:????? 1…45
DVB-S2:??? 1… 45
DVB-C:????? 1… 6.952
Maximum input current ? 100mA in 2 and 4 connectors.
250mA in 1 and 3 connectors
Fitted with DiSEqC (v. 1.1) ? No limit on number of polarities
TS Procesing
PSI/SI adaptation ? Generating and inserting tables PAT, PMT, CAT,
SDT, BAT, NIT, TDT, TOT, EIT
NIT adaptation ? Yes (automatically generated)
SDT adaptation ? Yes (configurable input name)
LCN, TDT, TOT management ? Yes
Cloned services ? Yes, from any input to any output
Number of Common Interface slots ? 2
RF Output
Number of outputs ? 4 channels
DVB-T / DVB-C (47 – 862 MHz)
MER dB > 40
Output level dB?V 85
Maximum output bit rate DVB-T Mbps 31,7
Operation modes DVB-T ? 2K / 8K
Output bandwidth DVB-T MHz 6 / 7 / 8
Modulation formats DVB-C ? 16 QAM / 32 QAM / 64 QAM /128 QAM / 256 QAM
Maximum output bit rate DVB-C Mbps 53
Adjustable output level dB -15
Symbol rate DVB-C MS/s 3 … 7.2
Output loop-through loss dB 1.1
IPTV Output
Number of SPTS outputs ? 64
Number of MPTS outputs ? 4
Transmission protocols ? SPTS : UDP and RTP
MPTS : UDP
SAP protocol ? Yes
Interface type ? RJ-45 Gigabit Ethernet
Output maximun bit rate ? 850 Mbps
General
Configuration ? PC. Interface web
Ikusi Headend Discovery (v1.8.5)
Management interface ? USB 2.0 Host frontal
Supply voltage VDC +24
Operating temperature ?C 0… +45
Consumption A 1
Dimensions mm 230 x 195 x 32
Weight kg 1.165
Protection index IP IP20?
MANUAL/DATASHEET
-
Add to cartIKUSI KMV-100. Wind set. Steelwire 25m, rigging screw, wirelock, for ? 30-35 mm masts
Features
Wind set.
Steelwire 25m,
Rigging screw,?wirelock, for ? 30-35 mm masts?MANUAL/DATASHEET
-
Add to cartThis product is not sent to some countries or areas, if the cart does not have available carriers, you can contact us here
IKUSI MAS-250. Plug-in mast 2.5m length x 35mm ?. Thickness 1,5 mm
Features
Plug-in mast 2.5m length x 35mm ?.
Thickness 1,5 mm?MANUAL/DATASHEET
-
Add to cartThis product is not sent to some countries or areas, if the cart does not have available carriers, you can contact us here
IKUSI MAS-300. Plug-in mast 3m length x 40mm ?. Thickness 2 mm
Features
Plug-in mast 3m length x 40mm ?.
Thickness 2 mm?MANUAL/DATASHEET
-
Ikusi NBS-801-C48 Amplification centre 1 input UHF
KSh25,126.00Add to cartIKUSI NBS-801-C48. Terrestrial and Satellite headend amplifiers. Amplifies, equalizes and combines analog or digital radio and television signals in medium size facilities
Features
Adapted to the first and second digital dividend.
High-power broadband amplifiers, for terrestrial and satellite signals in small installations. NBS800 series high-power broadband amplifiers, NBS600 series mid-power broadband amplifiers.
Interstage input attenuators.
Powered by switching power supply, in removable box.
Power passing to input.
Zamak housing with protective cover for adjustment potentiometers.
F Connectors. Wall fixing and indoor mounting.
Grounding terminal.
Compatible with UNICABLE TM.
Technical specifications
Model (Ref.) NBS801-C60 (3572)
NBS801-C48 (3573) NBS804-C60 (3563)
NBS804-C48 (3564) NBS604-C60 (3566)
NBS604-C48 (3567) NBS895-C60 (3575)
NBS895-C48 (3576) NBS695-C60 (3569)
NBS695-C48 (3570)
Inputs 1 4
BI/FM – BIII/DAB – 2xUHF 5
BI/FM – BIII/DAB -2xUHF – SAT IF
Frequency range MHz 45-790??? NBS801-C60
45-694??? NBS801-C48 BI/FM:???? 45-112
BIII/DAB:? 174-240
2xUHF:
470-790? NBS804/604-C60
470-694? NBS804/604-C48 BI/FM:??? 45-112
BIII/DAB: 174-240
2xUHF:
470-790? NBS895/695-C60
470-694? NBS895/695-C48
FI-SAT:?? 950-2400
Gain dB 42 BI/FM:?????? 42
BIII/DAB:??? 42
2xUHF:?????? 45 36
36
39 BI/FM:??????? 42
BIII/DAB:???? 42
2xUHF:??????? 45
SAT IF:??????? 40 36
36
39
34
Gain adjustment dB 0 – 18 0 – 18 0 – 18
Slope control range dB 0 – 12 ? SAT IF : 0 / 6
bridge
Response flatness dB ?2 BI/FM: BIII/DAB: 2xUHF: ?2
?2
?1,5 BI/FM: BIII/DAB: 2xUHF: SAT IF: ?2
?2
?1,5
?2
Outputs 1 1 1
Outputs test dB -30 -30 -30
Output level dB?V * 118 BI/FM:???????? 118
BIII/DAB:????? 118
2xUHF:??????? 118 BI/FM:?????? 112
BIII/DAB:??? 112
2xUHF:????? 112 BI/FM:????????? 118
BIII/DAB:?????? 118
2xUHF:?????????? 118
** SAT IF:?????? 120 BI/FM:???????? 112
BIII/DAB:????? 112
2xUHF:???????? 112
** SAT IF:???? 114
Noise figure dB 6 BI/FM: BIII/DAB: 2xUHF: 6
6
8 BI/FM: BIII/DAB: 2xUHF: SAT IF: 6
6
8
9
Input/output return loss dB 10 10 BI/FM-BIII/DAB-2xUHF: 10
SAT IF: 6
Voltage/current preamplifier mast ? 12-24V
100mA UHF2: 12-24V 100 mA UHF2: 0-12-24 V ? 100 mA SAT IF: 0-13-18V ? 100 mA LNB: 0-22 kHz
Mains supply voltage (+10? -15? ) VAC 230-240 230-240 230-240
Consumption W 8 8 5 16 8?
MANUAL/DATASHEET
-
Add to cartIKUSI NBS-804-C48. Terrestrial and Satellite headend amplifiers. Amplifies, equalizes and combines analog or digital radio and television signals in medium size facilities
Features
Adapted to the first and second digital dividend.
High-power broadband amplifiers, for terrestrial and satellite signals in small installations. NBS800 series high-power broadband amplifiers, NBS600 series mid-power broadband amplifiers.
Interstage input attenuators.
Powered by switching power supply, in removable box.
Power passing to input.
Zamak housing with protective cover for adjustment?potentiometers.
F Connectors. Wall fixing and indoor mounting.
Grounding terminal.
Compatible with UNICABLE TM.
Current injection for pre-mast and LNB.
Test of exit for verifications without disconnecting the service.
Technical specifications
Model (Ref.) NBS801-C60 (3572)
NBS801-C48 (3573) NBS804-C60 (3563)
NBS804-C48 (3564) NBS604-C60 (3566)
NBS604-C48 (3567) NBS895-C60 (3575)
NBS895-C48 (3576) NBS695-C60 (3569)
NBS695-C48 (3570)
Inputs 1 4
BI/FM – BIII/DAB – 2xUHF 5
BI/FM – BIII/DAB -2xUHF – SAT IF
Frequency range MHz 45-790??? NBS801-C60
45-694??? NBS801-C48 BI/FM:???? 45-112
BIII/DAB:? 174-240
2xUHF:
470-790? NBS804/604-C60
470-694? NBS804/604-C48 BI/FM:??? 45-112
BIII/DAB: 174-240
2xUHF:
470-790? NBS895/695-C60
470-694? NBS895/695-C48
FI-SAT:?? 950-2400
Gain dB 42 BI/FM:?????? 42
BIII/DAB:??? 42
2xUHF:?????? 45 36
36
39 BI/FM:??????? 42
BIII/DAB:???? 42
2xUHF:??????? 45
SAT IF:??????? 40 36
36
39
34
Gain adjustment dB 0 – 18 0 – 18 0 – 18
Slope control range dB 0 – 12 ? SAT IF : 0 / 6
bridge
Response flatness dB ?2 BI/FM: BIII/DAB: 2xUHF: ?2
?2
?1,5 BI/FM: BIII/DAB: 2xUHF: SAT IF: ?2
?2
?1,5
?2
Outputs 1 1 1
Outputs test dB -30 -30 -30
Output level dB?V * 118 BI/FM:???????? 118
BIII/DAB:????? 118
2xUHF:??????? 118 BI/FM:?????? 112
BIII/DAB:??? 112
2xUHF:????? 112 BI/FM:????????? 118
BIII/DAB:?????? 118
2xUHF:?????????? 118
** SAT IF:?????? 120 BI/FM:???????? 112
BIII/DAB:????? 112
2xUHF:???????? 112
** SAT IF:???? 114
Noise figure dB 6 BI/FM: BIII/DAB: 2xUHF: 6
6
8 BI/FM: BIII/DAB: 2xUHF: SAT IF: 6
6
8
9
Input/output return loss dB 10 10 BI/FM-BIII/DAB-2xUHF: 10
SAT IF: 6
Voltage/current preamplifier mast ? 12-24V
100mA UHF2: 12-24V 100 mA UHF2: 0-12-24 V ? 100 mA SAT IF: 0-13-18V ? 100 mA LNB: 0-22 kHzMains supply voltage (+10? -15? ) VAC 230-240 230-240 230-240
Consumption W 8 8 5 16 8?
MANUAL/DATASHEET
-
Ikusi PAU-203 User access point 3 outputs
KSh1,318.00Add to cartIKUSI PAU-203. User Access Points. Passive distribution elements.
Features
To select one of the two cables of the dispersion network and direct the signal to 2, 3, 4, 5, 6 or 8 exit doors.
Nickel-plated zinc casting box.
Forecast for grounding.
F connection female.
Technical specifications
REF. 3331 3354 3369 3370 3379 3380
No. of ways 2 3 4 5 6 8
Insertion loss 5-862 MHz dB ?5.0 ?8.0 ?9.5 ?12.5 ?13.0 ?13.5
950 -1550 MHz ?5.0 ?9.0 ?10 ?14.0 ?14,5 ?15.5
1551-2150 MHz ?7.0 ?11.0 ?11,5 ?17.0 ?17.5 ?18.0
2150-2400 Mhz ?6.7 ?11.2 ?13 ?17.5 ?18.0 ?19
Output isolation 5-862 MHz dB ?19 ?20 ?20 ?20 ?20 ?20
950-1550 MHz ?19 ?20 ?20 ?20 ?20 ?20
1551-2150 MHz ?19 ?20 ?20 ?20 ?20 ?20
2150-2400 Mhz ?18 ?18 ?18 ?18 ?18 ?18?
MANUAL/DATASHEET
-
Ikusi PAU-204 User access point 2 outputs
KSh1,026.00Add to cartIKUSI PAU-204. User Access Points. Passive distribution elements.
Features
To select one of the two cables of the dispersion network and direct the signal to 2, 3, 4, 5, 6 or 8 exit doors.
Nickel-plated zinc casting box.
Forecast for grounding.
F connection female.
Technical specifications
REF. 3331 3354 3369 3370 3379 3380
No. of ways 2 3 4 5 6 8
Insertion loss 5-862 MHz dB ?5.0 ?8.0 ?9.5 ?12.5 ?13.0 ?13.5
950 -1550 MHz ?5.0 ?9.0 ?10 ?14.0 ?14,5 ?15.5
1551-2150 MHz ?7.0 ?11.0 ?11,5 ?17.0 ?17.5 ?18.0
2150-2400 Mhz ?6.7 ?11.2 ?13 ?17.5 ?18.0 ?19
Output isolation 5-862 MHz dB ?19 ?20 ?20 ?20 ?20 ?20
950-1550 MHz ?19 ?20 ?20 ?20 ?20 ?20
1551-2150 MHz ?19 ?20 ?20 ?20 ?20 ?20
2150-2400 Mhz ?18 ?18 ?18 ?18 ?18 ?18?
MANUAL/DATASHEET
-
Ikusi PAU-904 User access point 4 outputs
KSh1,688.00Add to cartIKUSI PAU-904. User Access Points. Passive distribution elements.
Features
To select one of the two cables of the dispersion network and direct the signal to 2, 3, 4, 5, 6 or 8 exit doors.
Nickel-plated zinc casting box.
Forecast for grounding.
F connection female.
Technical specifications
REF. 3331 3354 3369 3370 3379 3380
No. of ways 2 3 4 5 6 8
Insertion loss 5-862 MHz dB ?5.0 ?8.0 ?9.5 ?12.5 ?13.0 ?13.5
950 -1550 MHz ?5.0 ?9.0 ?10 ?14.0 ?14,5 ?15.5
1551-2150 MHz ?7.0 ?11.0 ?11,5 ?17.0 ?17.5 ?18.0
2150-2400 Mhz ?6.7 ?11.2 ?13 ?17.5 ?18.0 ?19
Output isolation 5-862 MHz dB ?19 ?20 ?20 ?20 ?20 ?20
950-1550 MHz ?19 ?20 ?20 ?20 ?20 ?20
1551-2150 MHz ?19 ?20 ?20 ?20 ?20 ?20
2150-2400 Mhz ?18 ?18 ?18 ?18 ?18 ?18?
MANUAL/DATASHEET
-
Ikusi PAU-905 User access point 5 outputs
KSh2,068.00Add to cartIKUSI PAU-905. User Access Points. Passive distribution elements.
Features
To select one of the two cables of the dispersion network and direct the signal to 2, 3, 4, 5, 6 or 8 exit doors.
Nickel-plated zinc casting box.
Forecast for grounding.
F connection female.
Technical specifications
REF. 3331 3354 3369 3370 3379 3380
No. of ways 2 3 4 5 6 8
Insertion loss 5-862 MHz dB ?5.0 ?8.0 ?9.5 ?12.5 ?13.0 ?13.5
950 -1550 MHz ?5.0 ?9.0 ?10 ?14.0 ?14,5 ?15.5
1551-2150 MHz ?7.0 ?11.0 ?11,5 ?17.0 ?17.5 ?18.0
2150-2400 Mhz ?6.7 ?11.2 ?13 ?17.5 ?18.0 ?19
Output isolation 5-862 MHz dB ?19 ?20 ?20 ?20 ?20 ?20
950-1550 MHz ?19 ?20 ?20 ?20 ?20 ?20
1551-2150 MHz ?19 ?20 ?20 ?20 ?20 ?20
2150-2400 Mhz ?18 ?18 ?18 ?18 ?18 ?18?
MANUAL/DATASHEET
-
Ikusi PAU-906 User access point 6 outputs
KSh2,074.00Add to cartIKUSI PAU-906. User Access Points. Passive distribution elements.
Features
To select one of the two cables of the dispersion network and direct the signal to 2, 3, 4, 5, 6 or 8 exit doors.
Nickel-plated zinc casting box.
Forecast for grounding.
F connection female.
Technical specifications
REF. 3331 3354 3369 3370 3379 3380
No. of ways 2 3 4 5 6 8
Insertion loss 5-862 MHz dB ?5.0 ?8.0 ?9.5 ?12.5 ?13.0 ?13.5
950 -1550 MHz ?5.0 ?9.0 ?10 ?14.0 ?14,5 ?15.5
1551-2150 MHz ?7.0 ?11.0 ?11,5 ?17.0 ?17.5 ?18.0
2150-2400 Mhz ?6.7 ?11.2 ?13 ?17.5 ?18.0 ?19
Output isolation 5-862 MHz dB ?19 ?20 ?20 ?20 ?20 ?20
950-1550 MHz ?19 ?20 ?20 ?20 ?20 ?20
1551-2150 MHz ?19 ?20 ?20 ?20 ?20 ?20
2150-2400 Mhz ?18 ?18 ?18 ?18 ?18 ?18?
MANUAL/DATASHEET
-
Ikusi PAU-908 User access point 8 outputs
KSh2,200.00Add to cartIKUSI PAU-908. User Access Points. Passive distribution elements.
Features
To select one of the two cables of the dispersion network and direct the signal to 2, 3, 4, 5, 6 or 8 exit doors.
Nickel-plated zinc casting box.
Forecast for grounding.
F connection female.
Technical specifications
REF. 3331 3354 3369 3370 3379 3380
No. of ways 2 3 4 5 6 8
Insertion loss 5-862 MHz dB ?5.0 ?8.0 ?9.5 ?12.5 ?13.0 ?13.5
950 -1550 MHz ?5.0 ?9.0 ?10 ?14.0 ?14,5 ?15.5
1551-2150 MHz ?7.0 ?11.0 ?11,5 ?17.0 ?17.5 ?18.0
2150-2400 Mhz ?6.7 ?11.2 ?13 ?17.5 ?18.0 ?19
Output isolation 5-862 MHz dB ?19 ?20 ?20 ?20 ?20 ?20
950-1550 MHz ?19 ?20 ?20 ?20 ?20 ?20
1551-2150 MHz ?19 ?20 ?20 ?20 ?20 ?20
2150-2400 Mhz ?18 ?18 ?18 ?18 ?18 ?18?
MANUAL/DATASHEET
-
Ikusi PLZ-017 Bridge SZB F-F
KSh506.00Add to cartIKUSI PLZ-017. Bridge SZB F-F
Features
Hose-Bridge with F-F connector?
MANUAL/DATASHEET
-
Ikusi PSU-150 Power Supply module
KSh41,382.00Add to cartIKUSI PSU-150. Power Supply module. Switch mode power supply to feed HTI product range.
Features
High power switched-mode power supply with high efficiency.
The current distribution is done through the BACK-500 base plate, without plug bridges.
Its design allows to use the power supply in installations with 2 power supplies, working in redundant way.
Technical specifications
REF. 3865
Regulation type switched-mode
Mains supply voltage (50/60 Hz) VAC 100 – 240
Output voltage V +24
Max current A 6,5
Efficiency ? > 89
Operating temperature ?C -10 … +45
Mains lead ? Class I IEC 320/C13 (not included)
Dimensions mm 230 x 190 x 33?
MANUAL/DATASHEET
-
Ikusi RPA-060 Satellite dish 60 cm
KSh6,306.00Add to cartThis product is not sent to some countries or areas, if the cart does not have available carriers, you can contact us here
IKUSI RPA-060. Satellite dish 60 cm
Features
Satellite Dishes-offset antennas
Technical specifications
REF. 3065 3067 3069 3060
Diameter mm 632 x 583 779 x 845 1032 x 952 1245 x 1348
Frequency range GHz 10.5 – 13 10.5 – 13 10.5 – 13 10.5 – 13
Gain 12.75 GHz dB 36.4 38.5 40.3 42.4
Disk coating ? Grey polyester Grey polyester Grey polyester Grey polyester
Mast clamp diameter mm 25 / 50 30 / 60 35 / 60 40 / 60
Elevation angle ? 0 – 90 0 – 58 0 – 90 0 – 90
Structure material ? Galvanized steel Galvanized steel Galvanized steel Galvanized steel
Total weight (ud) kg 2.40 4.91 8.40 13.30?
MANUAL/DATASHEET
-
Ikusi RPA-080 Satellite dish 80 cm
KSh12,472.00Add to cartThis product is not sent to some countries or areas, if the cart does not have available carriers, you can contact us here
IKUSI RPA-080. Satellite dish 80 cm
Features
Satellite Dishes-offset antennas
Technical specifications
REF. 3065 3067 3069 3060
Diameter mm 632 x 583 779 x 845 1032 x 952 1245 x 1348
Frequency range GHz 10.5 – 13 10.5 – 13 10.5 – 13 10.5 – 13
Gain 12,75 GHz dB 36.4 38.5 40.3 42.4
Disk coating ? Grey polyester Grey polyester Grey polyester Grey polyester
Mast clamp diameter mm 25 / 50 30 / 60 35 / 60 40 / 60
Elevation angle ? 0 – 90 0 – 58 0 – 90 0 – 90
Structure material ? Galvanized steel Galvanized steel Galvanized steel Galvanized steel
Total weight (ud) kg 2.40 4.91 8.40 13.30?
MANUAL/DATASHEET
-
Ikusi RPA-100 Satellite dish 100 cm
KSh18,332.00Add to cartThis product is not sent to some countries or areas, if the cart does not have available carriers, you can contact us here
IKUSI RPA-100. Satellite dish 100 cm
Features
Satellite Dishes-offset antennas
Technical specifications
REF. 3065 3067 3069 3060
Diameter mm 632 x 583 779 x 845 1032 x 952 1245 x 1348
Frequency range GHz 10.5 – 13 10.5 – 13 10.5 – 13 10.5 – 13
Gain 12,75 GHz dB 36.4 38.5 40.3 42.4
Disk coating ? Grey polyester Grey polyester Grey polyester Grey polyester
Mast clamp diameter mm 25 / 50 30 / 60 35 / 60 40 / 60
Elevation angle ? 0 – 90 0 – 58 0 – 90 0 – 90
Structure material ? Galvanized steel Galvanized steel Galvanized steel Galvanized steel
Total weight (ud) kg 2.40 4.91 8.40 13.30?
MANUAL/DATASHEET
-
Ikusi RPA-120 Satellite dish 120 cm
KSh31,676.00Add to cartThis product is not sent to some countries or areas, if the cart does not have available carriers, you can contact us here
IKUSI RPA-120. Satellite dish 120 cm
Features
Satellite Dishes-offset antennas
Technical specifications
REF. 3065 3067 3069 3060
Diameter mm 632 x 583 779 x 845 1032 x 952 1245 x 1348
Frequency range GHz 10.5 – 13 10.5 – 13 10.5 – 13 10.5 – 13
Gain 12,75 GHz dB 36.4 38.5 40.3 42.4
Disk coating ? Grey polyester Grey polyester Grey polyester Grey polyester
Mast clamp diameter mm 25 / 50 30 / 60 35 / 60 40 / 60
Elevation angle ? 0 – 90 0 – 58 0 – 90 0 – 90
Structure material ? Galvanized steel Galvanized steel Galvanized steel Galvanized steel
Total weight (ud) kg 2.40 4.91 8.40 13.30?
MANUAL/DATASHEET
-
Add to cartIKUSI SAI-311. Female-female barrel (brass) .?F? type
Features
Female-female barrel (brass) .?F? type
Material: nickel plated brass
Used to connect 2 terminals with “F” connectors?
MANUAL/DATASHEET
-
Add to cartIKUSI SBA-101-C48. Multiband mast amplifiers Adapted to the first and second digital dividend.
Features
Adapted to the first and second digital dividend
Very high UHF gain.
Interstage variable attenuators.
Optimum design for very low operative noise figure.
Internal injection-moulded zinc alloy housing with F type ports.
Technical specifications
MODEL
SBA101-C60 SBA101-C48 REF. SBA101 Series
1295 Frequency range MHz 470 – 790 (1st dividend)
1296 470 – 694 (2nd dividend)
RF inputs 2
UHF UHF
Nominal gain dB >36
Gain adjustment dB 0 – 15
Noise figure dB < 5 Output level (DIN-B, -60dB) dB?V 105 Input isolation dB ?26 Operation voltage VDC +24 Consumption mA 55 Dimensions mm 96 x 125 x 46 ? MANUAL/DATASHEET -
Add to cartIKUSI SBA-102-C48. Multiband mast amplifiers Adapted to the first and second digital dividend.
Features?
Adapted to the first and second digital dividend
Very high UHF gain.
Interstage variable attenuators.
Optimum design for very low operative noise figure.
Internal injection-moulded zinc alloy housing with F type ports.
Technical specifications
MODEL
SBA102-C60 SBA102-C48 REF. SBA102 Series
1301 Frequency range MHz 470 – 790 (1st dividend) 47 – 240
1302 470 – 694 (2nd dividend)
RF inputs 2
UHF BI/FM/DAB/BIII
Nominal gain dB 25 -1
Gain adjustment dB 0 – 15 –
Noise figure dB ? 2 1
Output level (DIN-B, -60dB) dB?V 106
Input isolation dB ?26
Operation voltage VDC +24
Consumption mA 45
Dimensions mm 96 x 125 x 46?
MANUAL/DATASHEET
-
Add to cartIKUSI SBA-190-C48. Multiband mast amplifiers Adapted to the first and second digital dividend.
Features?
Adapted to the first and second digital dividend
Very high UHF gain.
Interstage variable attenuators.
Optimum design for very low operative noise figure.
Internal injection-moulded zinc alloy housing with F type ports.
Technical specifications
MODEL
SBA190-C60 SBA190-C48 REF. SBA190 Series
1307 Frequency range MHz 470 – 790 (1st dividend) 950 – 2400
1308 470 – 694 (2nd dividend)
RF inputs 2
UHF SAT
Nominal gain dB 35 -2
Gain adjustment dB 0 – 15 –
Noise figure dB ? 2
Output level (DIN-B, -60dB) dB?V 105 –
Input isolation ? ?26
Operation voltage VDC +12 / +24
In the case of not using the SAT input, it can be supplied with +24 VDC
Consumption mA 40
Dimensions mm 96 x 125 x 46?
MANUAL/DATASHEET
