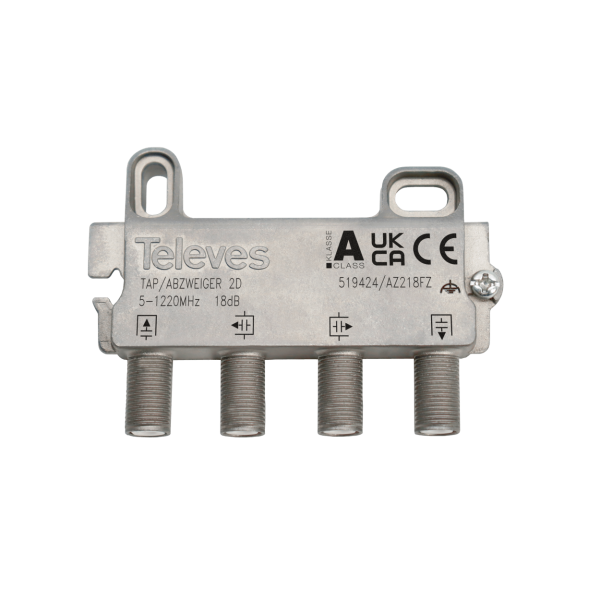

2 Output CATV Terminal Splitter F Connector 18dB from Televes
Televes 2 Output CATV Terminal Branch F 18dB Connector
2 output F type shunt with 18dB attenuation for terrestrial signals (5-1220 MHz), compatible with Docsis 3.1 coaxial cable data technology. It does not include DC power pass-through.
This shunt is used in indoor installations, for wall, rack or standard DIN rail mounting.
It has a high efficiency, comes with a chassis made of zamak, which provides a great shielding. It is compatible with DOCSIS 3.1, which is an international standard that defines the requirements needed to achieve the highest possible speed in data transmission over cable networks.
This shunt is not suitable for satellite signal distribution.
Frequency range MHz 5 … 1220
Number of derivations ? 2
Step losses dB
2
Bypass losses dB
17.5
Rejection between derivation dB
> 20
Connectors ? “F” female
