2 Output Splitter CATV Terminal F Connector 12dB from Televes

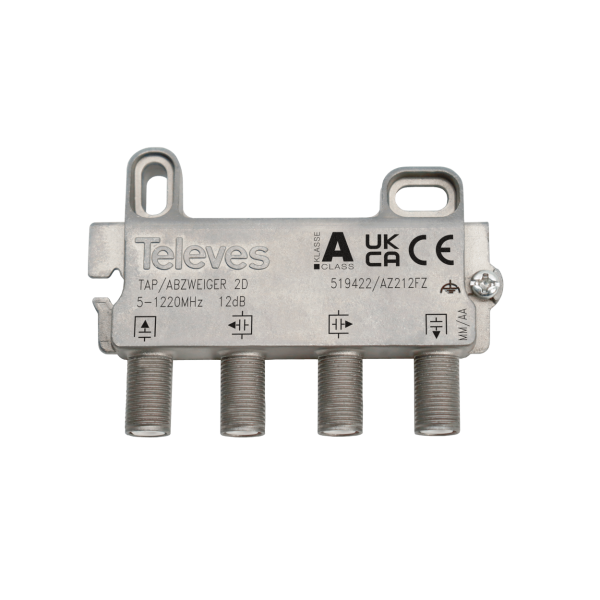

Televes 2 Outputs CATV Terminal Shunt F connector 12dB
2 output F type shunt with 12dB attenuation for terrestrial signals (5-1220 MHz), compatible with Docsis 3.1 coaxial cable data technology. It does not include DC power pass-through.
This shunt is used in indoor installations, for wall, rack or standard DIN rail mounting.
It has a high efficiency, comes with a chassis made of zamak, which provides a great shielding. It is compatible with DOCSIS 3.1, which is an international standard that defines the requirements needed to achieve the highest possible speed in data transmission over cable networks.
This shunt is not suitable for satellite signal distribution.
Technical Specifications of Televes CATV 2 Outputs 2 Outputs Terminal CATV Connector F 12dB Shunts
Frequency range MHz 5 … 1220
Number of derivations ? 2
Step losses dB
3,5
Bypass losses dB
12
Rejection between derivation dB
> 20
Connectors ? “F” female
