24 Fibers Singlemode Cable Indoor/Outdoor by Meter
24 Fibers Singlemode Cable Indoor/Outdoor LSFH Televes 231614 by Meter

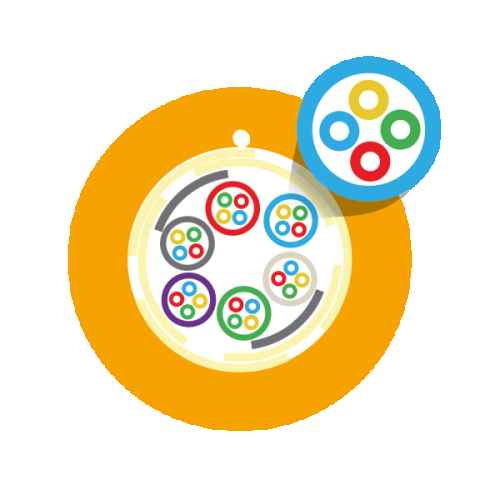

Single-mode 24-fiber multi-fiber cable with UV resistant LSFH cover, suitable for indoor and outdoor installation. Cable divided into 6 micro-modules with 4 fibers, each one of a different color for easy identification.
Low attenuation fiber Euroclass Dca. Each micromodule has a blocking gel that offers great resistance against water and also with Kevlar fiber reinforcements to maintain traction, without the need for a central element of resistance.
The cable consists of a 9/125 type fiber, ITU-T G.657A2 and a tight fiber coating diameter of 250?m. Includes a tear thread to open the outer cover.
It is supplied in coils to measure (by meter), which will be ordered from the factory, so the delivery time may vary.
Single-mode 24-fiber multifiber cable with UV resistant LSFH cover, supplied by meter.
What are the main characteristics of Televes 231614 24-fiber cable?
Dca-s2,d2,a1 Euroclass
Low attenuation
Organized in fibre micro-modules
Blocking jelly, offering great protection against water
Good structure reinforcement using aramid fibers (kevlar), which allows to maintain its traction without the need for a central guiding wire for resistance
9/125, ITU-T G.657A2 fibre type
Coating diameter adapted to the fibre: 250 ?m
Ripcord to open the outer sheath
UV-resistant LSFH sheath, orange colour
What technical specifications does the Televes 231614 24-fiber cable have?
Cable type Indoor/Outdoor
Fibre type 9/125 (G657A2)
Number of fibres 24
Attenuation 1310nm dB/Km ?0,35
1550nm ?0,21
Micro-modules Material LSFH (Low Smoke Free Halogen)
Filler Water blocking petrol-jelly
Diameter mm 0,85 ?0,05
Outer sheath Material UV-resistant LSFH (Low Smoke Free Halogen)
Color Orange
Diameter mm 7,6 ?0,4
Min. bending radius mm 76
Short tension N 1000
Short crush N/100mm 1000
Operating temperature ?C -5 … 60
