25 meters Cable Kit SC/APC, Keystone and Televes Fiber Optic Adapter
Televes 233242 Fiber Optic Socket Connection

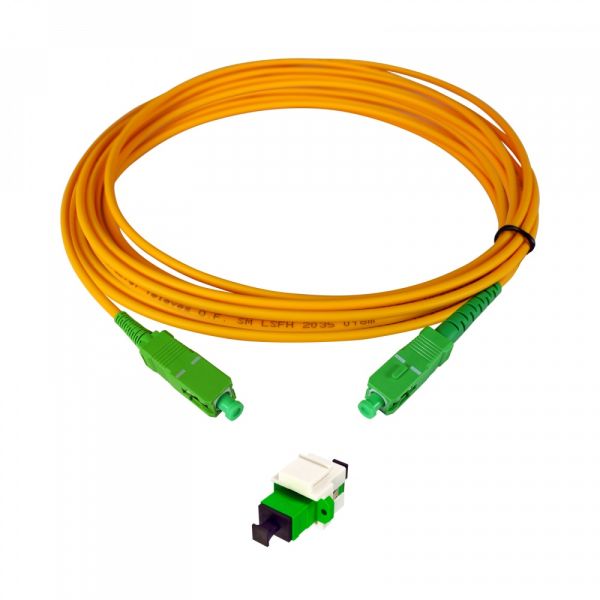

It is a kit made up of: fiber optic patch cord, keystone module and fiber optic adapter. The patch cord is 25 meters long and is pre-assembled with SC/APC connectors. The keystone is compatible with all RJ45 covers, since it is standardized.
The connection is very simple: we insert the keystone module into the network box, pressing until it clicks. Then we do the same with the adapter on the keystone module.
This kit introduces very little insertion loss. In addition, the included fiber optic adapter automatically blocks the passage of light when we remove the connector, ensuring eye protection.
The connectors are of the SC/APC type and the hose is 25 meters long. The module is made of white PVC plastic.
Technical Specifications of Televes 233242 Fiber Optic Socket Connection Kit
Euroclass ? Dca
Euroclass: Smoke Production ? s2
Euroclass: Flaming droplets ? d2
Euroclass: Acidity ? a1
Fiber core type ? Single-mode (ITU-T-G.657A2)
Optical fiber type category ? OS1
Fiber core diameter ?m 9
Fiber cladding diameter ?m 125
Coating buffer diameter ?m 250
Cable structure ? Tight buffer
Plastic buffer diameter mm 0.85
Outer sheath Diameter mm 3
Outer sheath Material ? LSFH
Blocking jelly ? No
Attenuation 1310nm dB/km < 0.8
Attenuation 1490nm dB/km < 0.8
Attenuation 1550nm dB/km < 0.8
Insertion losses in connector 1 dB < 0.5
Insertion losses in connector 2 dB < 0.5
Return losses in connector 1 dB > 60
Return losses in connector 2 dB > 60
Optical connector type 1 ? SC
Polishing type (Optical connector 1) ? APC
Optical connector type 2 ? SC
Polishing type (Optical connector 2) ? APC
Short tension N 450
Long tension N 200
Structure reinforcement element ? Aramid fibers
Short crush (@100mm) N 500
Long crush (@100mm) N 100
Minimum bending radius mm 15
Operating temperature ?C -20 … 70
