4 Core Multimode Fiber Optic Cable – Kenya
KSh140.00

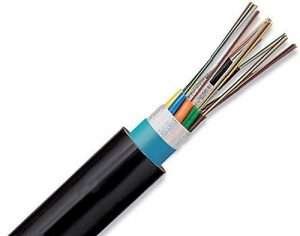

4 Core Multimode Fiber Optic Cable
4 Core Multimode Fiber Optic Cable 1M is designed to accommodate environments where the installation of the fibre optic cable might be strenuous. 4core multimode fibres are positioned in a loose tube manufactured with a modulus plastic.
The tubes are filled with a water-resistant filling compound and has a fibre re-enforcement (FRP) located in the centre of the cable as a non-metallic strength member. 4 Core Multimode Fiber Optic Cable 1M Protected by a Polyethylene sheath, Heavy Duty Duct cable is the ultimate in reliability for riser shafts and or extensions to other buildings.
4 Core Multimode Fiber Optic Cable specifications
• Short and medium distance.
– As a riser or general purpose cable.
– Suitable for direct termination.
– Interconnection of distribution boxes and customer equipment between floors.
– 4 – 72 fibres individually buffered to 0.9mm in a tight or semi tight construction and coded.
– 4 – 24 fibre cables contain individual fibres without sub-units.
24 – 72 fibre cables the fibres are grouped in sub-units.
4 – 24 fibre cables, the individual fibres are stranded and protected by aramid yarn and a LSZH jacket (other jackets available upon request). •
24 – 72 fibre cables, the fibres are grouped into sub-units which are laid helically along the cable axis.
– A ripcord is located under the jacket to facilitate jacket removal.
-Cost effective multi fibre cable.
-Compact and flexible construction especially suited for indoor installations.
– Standard colour black
– Suitable for manufacturing pre-terminated fibre cables.
Loose-tube: 4-24 core Cable
Fibre Cores 4 8 12 16 24
Weight kg/km 25 34 41 47 62
Outer Diameter mm 5 5.9 6.5 7.2 8.3
Tensile Strength (during installation) N 640 920 1100 1430 1430
Bend Radius mm 80 95 100 113 128
Crush Resistance N 2000
Operating Temperature Range °C 15 – +60
4 Core Multimode Fiber Optic Cable
1m 4 Core Multimode Fiber Optic Cable
Fiber Optic Cable 4-Core, 62.5/125 Multimode
multimode fiber cable price
Heavy Duty Duct 4 Core Multi Mode Fibre Cable
4-Core Indoor Multimode Fiber Optic Cable
Fiber Optic Cable single-mode multi-mode
4 Core Indoor Multimode Fiber Optic Cable
Multimode 4-Core Fiber Optic Cable
Fiber Optic Multimode 4-Core Cable
4 Core Multimode Fiber Optic Cable
4 Core Multimode Fiber Optic Cable 1M is designed to accommodate environments where the installation of the fibre optic cable might be strenuous. 4core multimode fibres are positioned in a loose tube manufactured with a modulus plastic.
The tubes are filled with a water-resistant filling compound and has a fibre re-enforcement (FRP) located in the centre of the cable as a non-metallic strength member. 4 Core Multimode Fiber Optic Cable 1M Protected by a Polyethylene sheath, Heavy Duty Duct cable is the ultimate in reliability for riser shafts and or extensions to other buildings.
4 Core Multimode Fiber Optic Cable specifications
• Short and medium distance.
– As a riser or general purpose cable.
– Suitable for direct termination.
– Interconnection of distribution boxes and customer equipment between floors.
– 4 – 72 fibres individually buffered to 0.9mm in a tight or semi tight construction and coded.
– 4 – 24 fibre cables contain individual fibres without sub-units.
24 – 72 fibre cables the fibres are grouped in sub-units.
4 – 24 fibre cables, the individual fibres are stranded and protected by aramid yarn and a LSZH jacket (other jackets available upon request). •
24 – 72 fibre cables, the fibres are grouped into sub-units which are laid helically along the cable axis.
– A ripcord is located under the jacket to facilitate jacket removal.
-Cost effective multi fibre cable.
-Compact and flexible construction especially suited for indoor installations.
– Standard colour black
– Suitable for manufacturing pre-terminated fibre cables.
Loose-tube: 4-24 core Cable
Fibre Cores 4 8 12 16 24
Weight kg/km 25 34 41 47 62
Outer Diameter mm 5 5.9 6.5 7.2 8.3
Tensile Strength (during installation) N 640 920 1100 1430 1430
Bend Radius mm 80 95 100 113 128
Crush Resistance N 2000
Operating Temperature Range °C 15 – +60
4 Core Multimode Fiber Optic Cable
1m 4 Core Multimode Fiber Optic Cable
Fiber Optic Cable 4-Core, 62.5/125 Multimode
multimode fiber cable price
Heavy Duty Duct 4 Core Multi Mode Fibre Cable
4-Core Indoor Multimode Fiber Optic Cable
Fiber Optic Cable single-mode multi-mode
4 Core Indoor Multimode Fiber Optic Cable
Multimode 4-Core Fiber Optic Cable
Fiber Optic Multimode 4-Core Cable
