5-1000 MHz shunt connector F and 5/8 in Step 2 outputs 35dB…
KSh7,674.00

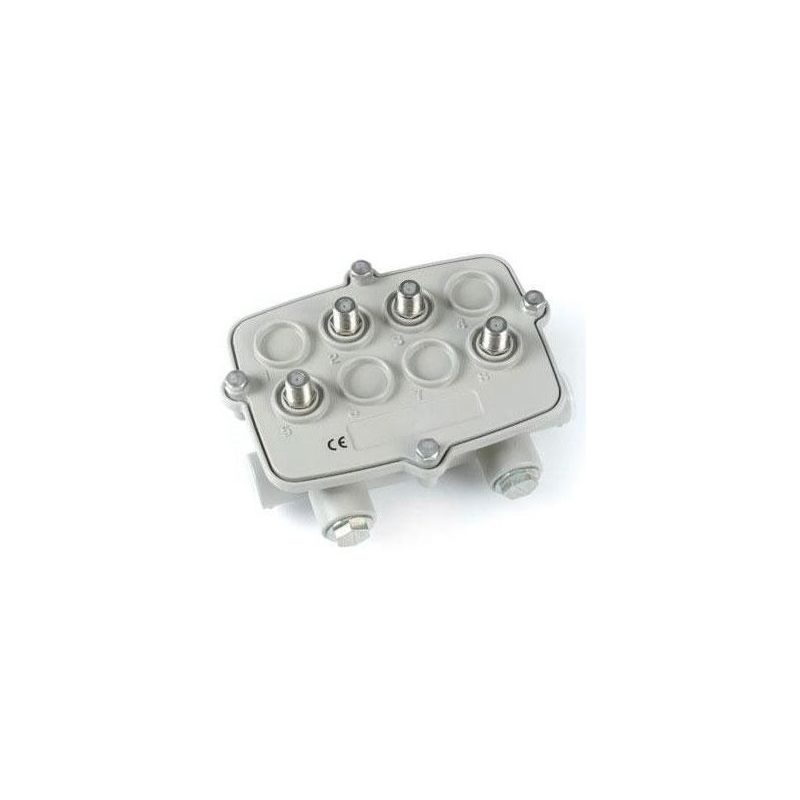

5 – 1000MHz band shunt. Connector F and 5/8 in step. 2 outputs. 35dB. Outside. Televes 4611
Features
Wide range of 2 and 4 output shunts.
Attenuations of 4 to 35 dB with isolation between output and derivation greater than 24 dB.
It incorporates F connectors in the branches and 5/8 “for the input and signal extension. It allows AC passage in prolongation, but not in derivation.
Chassis water resistant and designed for IF tests
Specifications
Reference? 4611
?Frequency range? ?SCATV
?Outputs n? 4
?Insertion loss In-> Out dB ? 1.8
?Tap loss In-> Tap dB 35
?Max current through Out-In (60 Vac) A 6
?Dimensions(Wid x Hei x Dep) mm 131 x 100 x 77
