5G outdoor filter with cut in the channel 48 405202 of Televes
LTE700 filter for the 5G EasyF channel 48

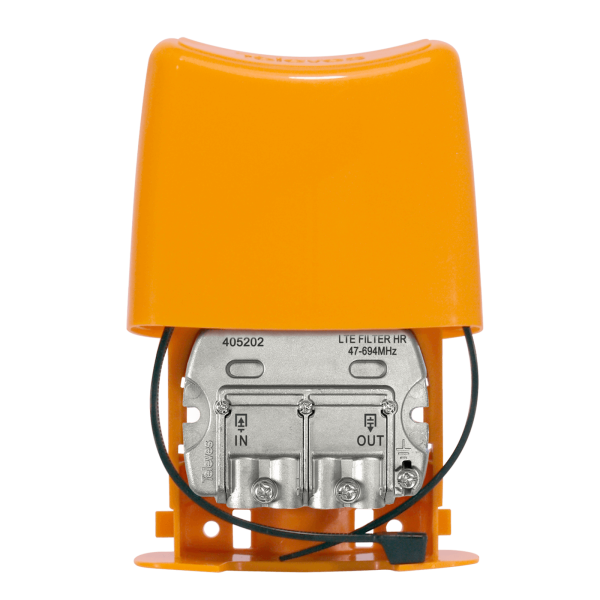

Televes 405202 filter to install on the antenna mast and eliminate interference with the 5G band. This is a high rejection low pass filter with cutoff frequency on channel 48. The equipment has low through attenuation to affect as little as possible the distributed signal.
Small size filter, protected with a rugged ABS plastic hood designed for outdoor use Its EasyF connection system facilitates installation and does not require connectors.
Televes LTE700 filter to eliminate interference with the 5G band from channel 48. Designed to be installed outdoors thanks to its hood that protects it from rain, dust and possible blows.
What technical specifications does the Televes 5G 405202 Filter have?
Frequency margin MHz 47 – 694 733 – 862
Attenuation dB 1 > 25
Inputs/Outputs n? 1 / 1
Max current through inputs mA —
Temperature operat. limits ?C -5 … +45
Protection Level IP 23
