AD511 Mk2 Iridium Active Antenna

Name: AD511 Mk2 Iridium Active Antenna | +254720548999
Brand: Iridium Satellite LLC
SKU: PE8FQF9R4Y
Price: 147452.00 KES
Availability: InStock

KSh147,452.00

Enhance your satellite communications
with the AD511 Mk2 Iridium Active Antenna, designed for superior performance
in both Iridium and maritime applications. Built with durable yet lightweight
aluminum, it’s perfect for harsh marine environments. This antenna ensures
high-performance reception and minimal noise for reliable connectivity.
Upgrade to the AD511 Mk2 for optimal satellite communication.

AD-511 Mk2 Iridium Active Antenna with Extended Range Capabilities

The AD-511 Mk2 Iridium Active Antenna is expertly designed to enhance the
performance of your Iridium installations, allowing for cable lengths of up
to 160 meters without any loss in signal quality. This is a significant
improvement over standard passive antennas, which only support up to 30
meters of coaxial RF cable.

This extended range capability is particularly beneficial for installations
on ships and land, where longer cable runs are often necessary but previously
unfeasible with standard solutions.

Key Features:
Supports up to 160 meters of coaxial RF cable.
Ideal for both marine and terrestrial Iridium installations.
Compatible with pre-set cable lengths ranging from 27 to 160 meters when
using the appropriate AST identified coaxial cable.

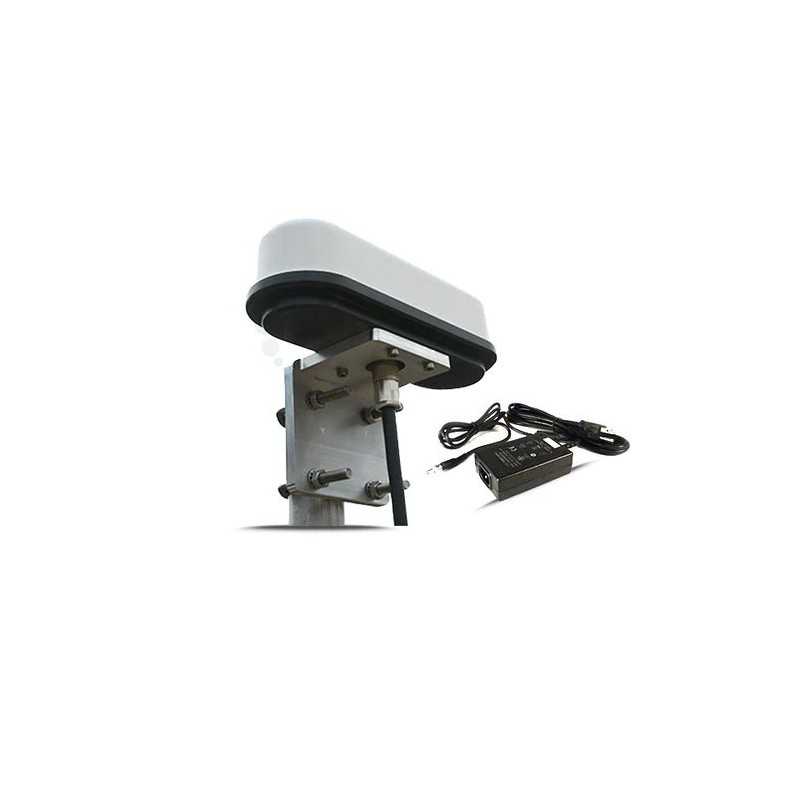

Package Includes:
Active Antenna Head with a robust alloy mounting bracket.
Power Break-In Box, designed to be positioned near the Iridium phone
device.
A 1-meter coaxial lead for connecting the Iridium phone device to the Power
Break-In Box.

Note: The power supply is not included and the Power Break-In Box requires
a DC power input ranging from 18 to 36 VDC.

This advanced antenna model replaces the AD510-10, offering improved
performance and installation flexibility.
