Adjustable Dimmer IEC 1-25dB for DTT
1-25dB IEC Adjustable Dimmer

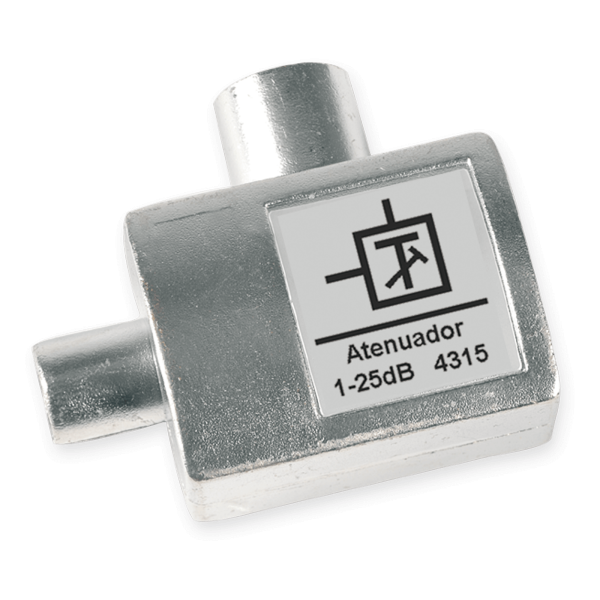

This 4315 Televes attenuator allows you to reduce the level of DTT signal on the TV when interference from excessive powers occurs.
The dimmer allows the passage of DC current to power active components of the terrestrial installation that require it.
What technical specifications does the Televes 4315 attenuator have?
1-25dB regulation
High armor chassis, manufactured in Zamak
DC step included
Pluggable Format
IEC connectors (male-female)
