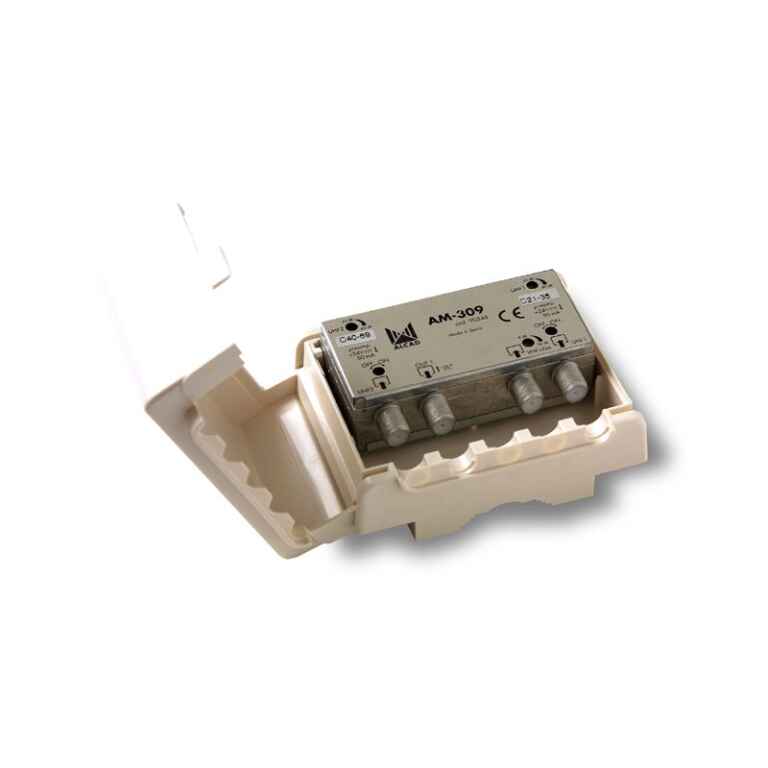

Alcad AM-309 Amp groups uhf-uhf-vhf/fm mast
KSh12,274.00
Alcad AM-309 – Serie 903: Amp groups uhf-uhf-vhf/fm mast.
Configurable amplifiers for masts. The UHF inputs can be configured by adding low pass, high pass, band pass, monochannel, band rejection and channel rejection filters. The filters are installed during the factory manufacturing process and cannot be readjusted by the user. The attenuator located at each input makes it possible to control the gain to obtain an output with all the bands equalised.
Applications
Individual digital and analogue terrestrial TV installations which require an amplifier adapted to the specific needs of the area. The interference from undesired channels can be avoided through the use of the built-in filters. The type of filter and the initial and final channels should be specified in the order.
Characteristics
Shielded zamak chassis, covered by an ABS plastic box for outdoor use. Fixed to the mast by means of a polyamide clamp. F-type connectors.
Accessories
9030086 AL-100 +24 power supply unit. 9120039 CM-004 Male F connector for ?6.6 mm coaxial. 9080023 MC-302 Male F connector for RG-6 coaxial, ?7.0 mm.
Downloads
Technical specification
Technical specification
Manuals
– pdf 156.97 KB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
