Alcad DAM-504 Distribution amplifier 120 db?v
KSh53,768.00
Alcad DAM-504 – Serie 911: Distribution amplifier 120 db?v.

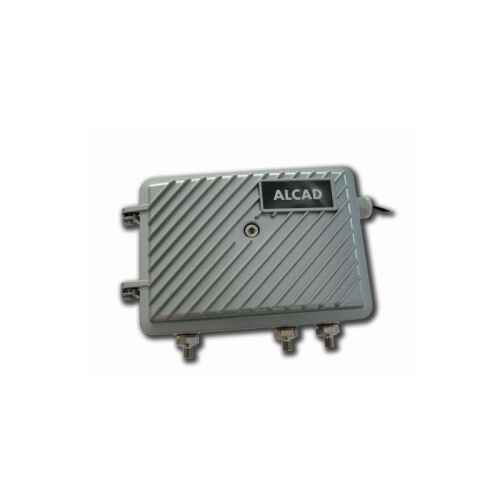

Broadband distribution amplifier for terrestrial and cable TV with power supply. It amplifies the terrestrial TV band and the return path separately. It has gain control regulator for each band and fixed equalizer in the TV band.
Applications
Designed to extend terrestrial and cable TV installations, analog or digital, in community facilities in return path. The signal levels are easily adjusted thanks to two gain controllers. Especially suitable for outdoor installations.
Characteristics Robust chassis made of aluminum that provides maximum shielding against interference, and protection in outdoor conditions (IP65). Separate housings for the power supply unit and the high frequency circuit. PG11-F type connectors.
Accessories
9080015 MC-204 Male compression F connector for RG-11 coaxial 9080030 MC-304 Male compression F connector for RG-6 coaxial, ?7.0 mm. 9120011 RS-275 F load 75O.
Downloads
Technical specification
Technical specification
Manuals
– pdf 165.87 KB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Technical specifications
Related products
-
Alcad TMS-214 4xdvb-s/s2/s2x to 2xdvb-t/c transmod, ci
KSh313,306.00Add to cartAlcad TMS-214 – Serie 912: 4xdvb-s/s2/s2x to 2xdvb-t/c transmod, ci.
Himalaya transmodulator of DVB-S/S2 satellite digital television services to DVB-T or DVB-C. Each module selects services from four DVB-S/S2 satellite transponders and includes them in two DVB-T or DVB-C channels. The demodulators are Multistream compatible. Can be configured using a web browser in a computer conected via ethernet cable.
Equipped with a Common Interface slot for insertion of the CAM and the subscriber’s card for encripted services.
Downloads
Technical specification
Technical specification
Manuals
TMS-214 HN pdf 808.48 KB
TMS-214 Manual pdf 3.79 MB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Certificates
CE Declaration – TMS-204 TMS-214 pdf 70.78 KB
Firmware
Firmware TMS-214 v1.07 zip 28.46 MB
Other documents
TECHNICAL INFORMATION pdf 325.27 KB
Technical specifications
-
Add to cartHigh gain mast amplifier (LTE700, 2nd Digital Dividend). 4 inputs: FM-BIII/DAB-UHF-UHF. Mast-mounted amplifier to amplify terrestrial television signals from various antennas. It consists of 4 inputs with amplification in all bands. The amplifier is powered at 24Vdc through the output coaxial cable.
-
Add to cartDomestic amplifier with 6 outputs, to extend the terrestrial television domestic network.
Equipped with LTE700 4G/5G filtering.
Highlights
Low-impact visual design and limited size
Integrated high-performance switched-mode power supply (40% less than a standard amplifier )
Fully automated manufacturing subject to the most stringent quality controls
Features
Manual gain control, protected by a folding cover
Can be wall-mounted using screws
?F? connectors
Specifications
VHF/UHF
Frequency band MHz 47-68/174-400 470-694
Inputs 6 (F) 6 (F)
Gain G dB 6 14
Gain regulation margin marg – AUTO
Output level (Vout) DIN 45004B? dB?V 104 102
IMD3(2tones, -35dB) 97 95
10CH DVB-T – 83
Noise figure N.F. dB – 0 … 12 -
