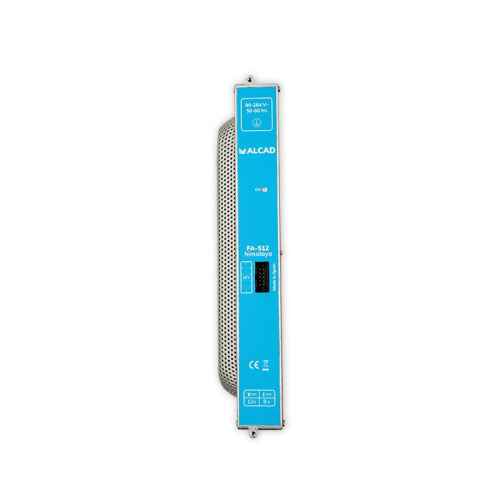

Alcad FA-512 Power supply 96 w (90-260 vac) himalaya
KSh81,896.00
Alcad FA-512 – Serie 912: Power supply 96 w (90-260 vac) himalaya.
Switching power supply for 912-TM himalaya transmodulateurs, which permits the installation of a PA-740 broadband amplifier and different modules on the support frame. An additional power supply can be added to the headend so that it will have a redundant power supply with load balance. Power supply with a flat cable of 10 lines at 12V.
Downloads
Technical specification
Technical specification
Manuals
FA-512 Manual pdf 2.11 MB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Certificates
CE Declaration – FA-512 pdf 61.42 KB
Technical specifications
