Alcad MU-310 5×8 final multiswitch
KSh43,078.00

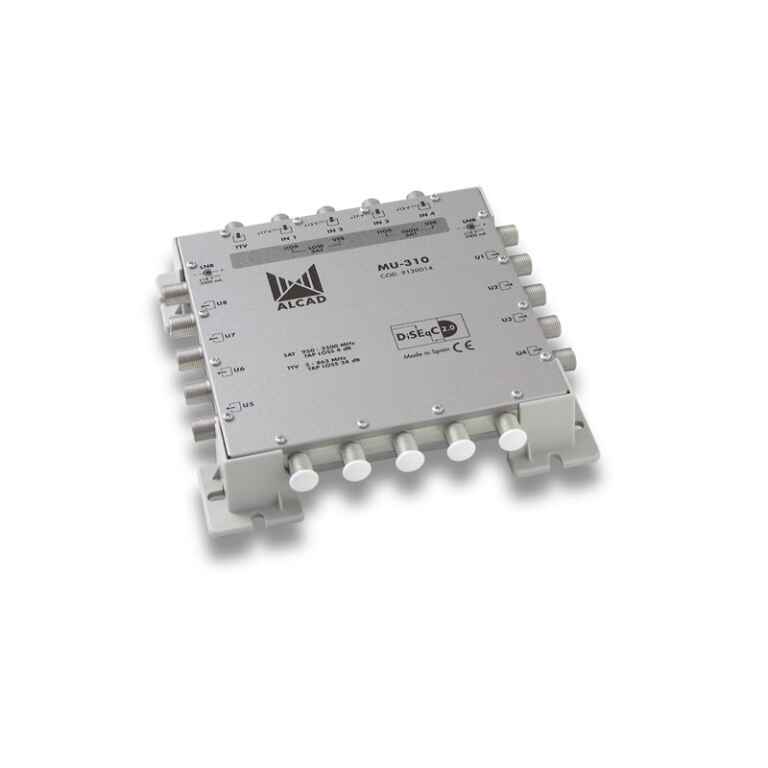

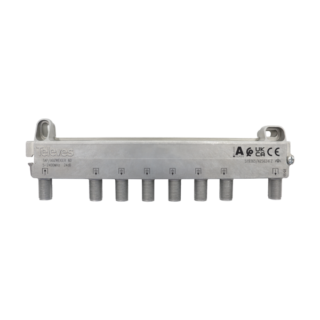

Alcad MU-310 – Serie 913: 5×8 final multiswitch.
Multiswitches for 4 polarities and terrestrial TV with 4, 8 or 16 outputs, for star-shaped installations. The tap outputs are amplified on the IF satellite band. Must be powered from each individual receiver to feed the switching and amplification of each tap output. To feed the LNBs, the FU-612 power supply unit is used.
Applications
Individual or SMATV installations, up to 16 TV outlets. Starshaped distribution from the multiswitch, with a single coaxial cable to each TV outlet. The multiswitch distributes a satellite polarity together with the terrestrial TV for each output. The polarity is selected from the individual receiver by means of the LNB control signals.
Characteristics
Return path included from 5 to 65 MHz. Shielded zamak chassis with plastic supports. F type connectors. Two power supply jacks, 9.5mm x 2.1mm. Distances of more than 75 m between multiswitch and outlet.
Downloads
Technical specification
Technical specification
Manuals
– pdf 186.18 KB
Catalogues
CAT_MMTV_EN_REDUCED pdf 4.43 MB
Certificates
CE_Declaration-TV_Distribution pdf 269.31 KB
Technical specifications
Related products
-
Add to cartTerrestrial and satellite signal combiner. 2 inputs: MATV-SAT 2-input combiner that combines a terrestrial signal with a satellite signal into a single output. Can be used as GSM filter, thanks to the high TV-SAT rejection Highlights High-screening Zamak chassis Current pass from the output to the SAT input, for LNB supply Features Indoor or outdoor …
Mixer MATV-FI 2e / 1s F 47..790-950..2400MHz + DC TelevesRead More
-
EuroSwitch 17 inputs – 32 outputs Televes
KSh488,356.00Add to cartCompact multiswitch equipped with 17 inputs (one terrestrial and 16 for four satellites, each with its four polarities) and 32 user outputs.
Thanks to its great compactness and its optimized electronic design, it presents very low through and tap losses. This allows to reduce the number of amplifiers needed in the cascade and to obtain a better balanced signal in the users, even in large collective installations.
Can be used as a terminal (star topology) or as a cascade by using a simple switch. In addition, it incorporates a second switch that actives the TForce technology, which automatically adjusts the terrestrial signal and keep it constant despite variations in the reception.
Highlights
Very compact in dimensions and weight, even in models with high number of users
Very low through and tap losses
Wide 12-18V power supply range, making it compatible with most existing systems
Equipped with the TForce technology, the terrestrial output level is automatically adjusted (TERR. AMP. ACTIVE) to the optimal level
Great isolation between inputs and outputs
100% european design, quality, and manufacturing
Main features
High shielding: A class
Input and output colour identification
Low consumption under normal conditions. In addition, ECO mode reduces consumption as the number of connected users decreases
Versatile: selector switch to shift between cascade and terminal modes
Two powering options: From the power supply, or from the cascade through the satellite inputs or outputs
Current circulation between all inputs and cascades
Specifications
Type ? 17x17x32
Frequency range MHz SAT 950 ? 2200 / 2400
RF 120 ? 862
Input level dB?V SAT 65 … 112
RF 80 … 110
Through losses dB SAT <4 ... 5.5/6,5 RF < 5 Tap losses dB SAT 2 ... 7 RF Active 5 Pasive 36 Output level dB?V 10 Ch?s DTT 78 Isolation dB Trunk > 50
Users > 30
Powering V ? 12 – 18
Max. consumption mA PSU1 Active 115
Pasive 5
Receiver 85
Operating temperature ?C ? ?5?.+45
Protection level IP ? IP20 -
Amplifier 13×13 F G4/31/27 Vs105 Nevoswitch Televes
KSh84,700.00 -
Add to cart13x and 17x multiswitches range with 24 outputs with available through outputs to connect?several multiswitches in cascade configuration and therefore?extend the number of users.
-
EuroSwitch 9 inputs – 24 outputs Televes
KSh196,488.00Add to cartCompact multiswitch equipped with 9 inputs (one terrestrial and 8 for two satellites, each with its four polarities) and 24 user outputs.
