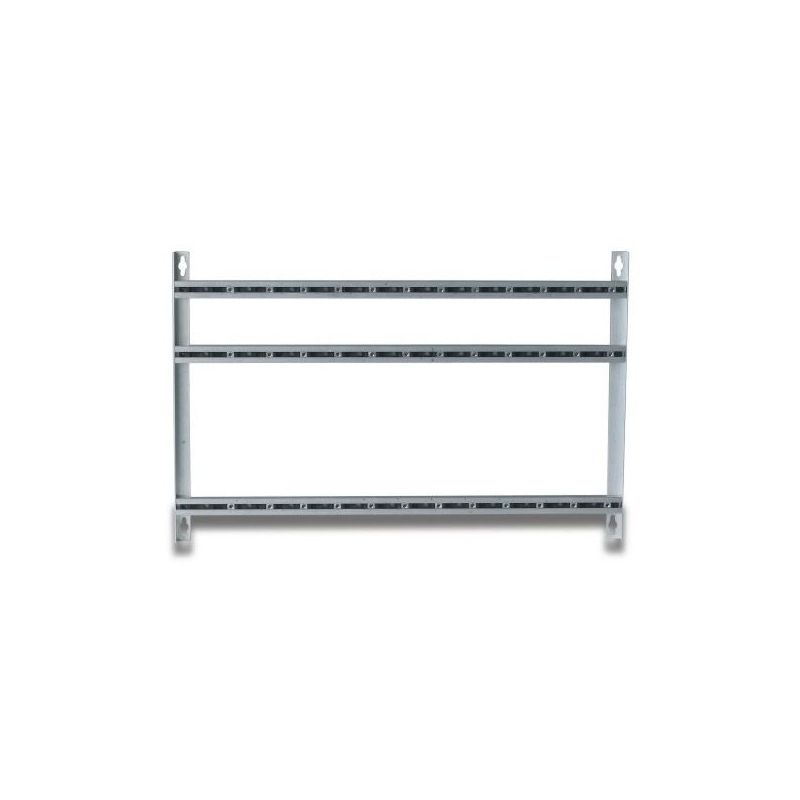

Alcad SP-226 Frame d38 for psu and 11 modules
KSh5,752.00
Alcad SP-226 – Serie 912: Frame d38 for psu and 11 modules.
Support frame for power supply unit, amplifier and 10 modules or power supply unit and 11 modules. Other combinations include 2 power supply units, an amplifier and 8 modules, or 2 power supply units and 9 modules. Required for mounting the different modules of the equipment.
Downloads
Technical specification
Technical specification
Manuals
– pdf 1.28 MB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Technical specifications
