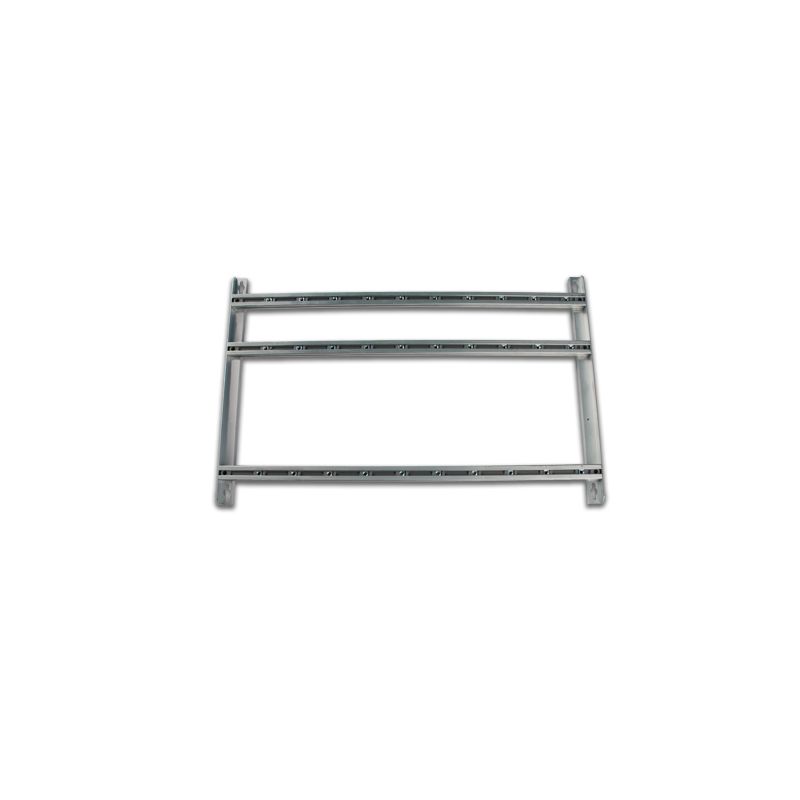

Alcad SP-244 Frame d47 for psu and 9 modules
Alcad SP-244 – Serie 912: Frame d47 for psu and 9 modules.
Support frame for 912-series headends. It can hold up to one power supply, one amplifier and 8 modules, or one power supply and 9 modules. There is a 47 mm distance between modules to allow for better heat disipation.
Downloads
Technical specification
Technical specification
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
