Name: Amplificador de mastro Televes 2e / 4s U / Vmix-FI mix 4s
SKU: TELEVES-5354
Availability: InStock

Amplificador de mastro Televes 2e / 4s U / Vmix-FI mix 4s

KSh9,822.00

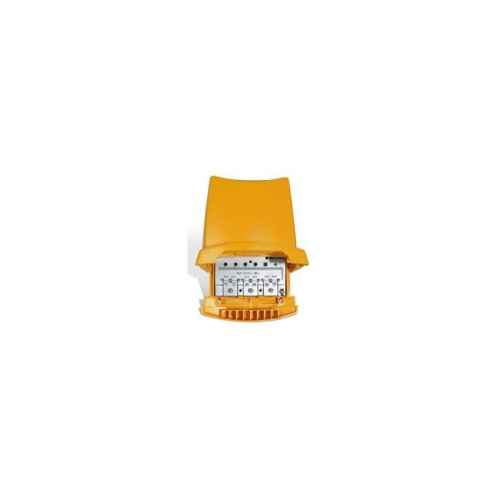

The Televes 5354 mast amplifier has 2 inputs and 4 outputs that also allow the passage of the signal of a parabolic antenna, with an amplification power of 21db.

Wide range of mast amplifiers offering solutions for both terrestrial and satellite reception.? Supplied in a weatherproof box made of ABS plastic.

Features
High / Low gain versions. Products with satellite input.
Automatic DC bypass to the inputs.
User friendly design for easy of use.
EasyF connection type.
Weatherproof cases made of ABS plastic.
Specifications
Reference ?5354
?Inputs/ Bands ?VHF ?UHF SAT
?Frequency range MHz ?47-254 ?470-862 ?950-2200
?Gain dB ?-9 20 ?12
?Gain adjustment range dB 0 15 0
?Noise figure dB – 2.5 –
?Output level DIN45004B dB?V ?- 93 –
?Max current through inputs mA – 40 ?350
?Power supply Vdc 12…24
?Current consumption mA 40
?Protection index IP 23
?Dimensions (Wid x Hei x Dep) mm 120 x 130 x 40
