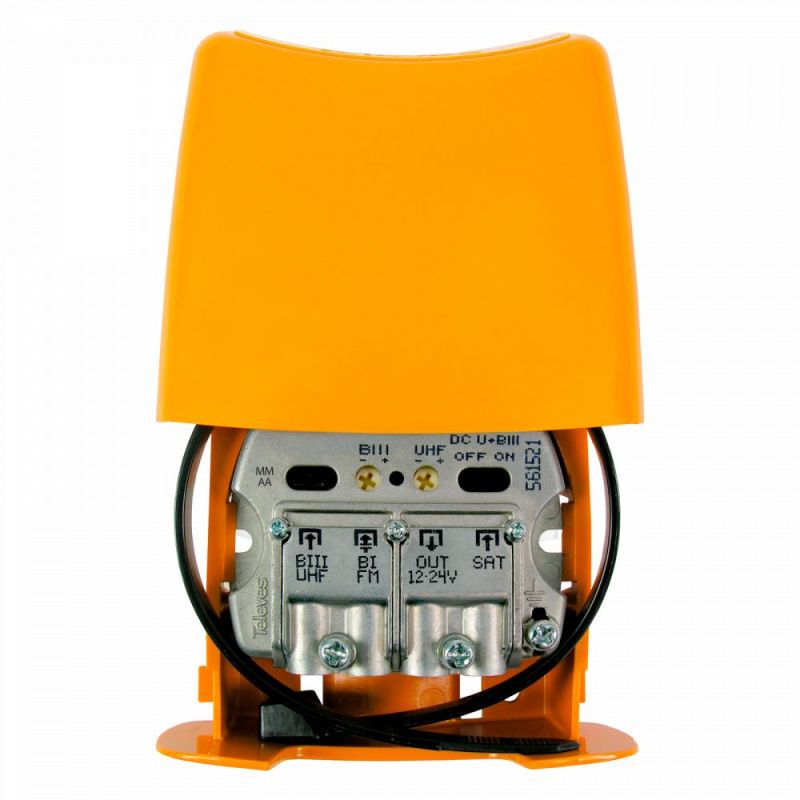

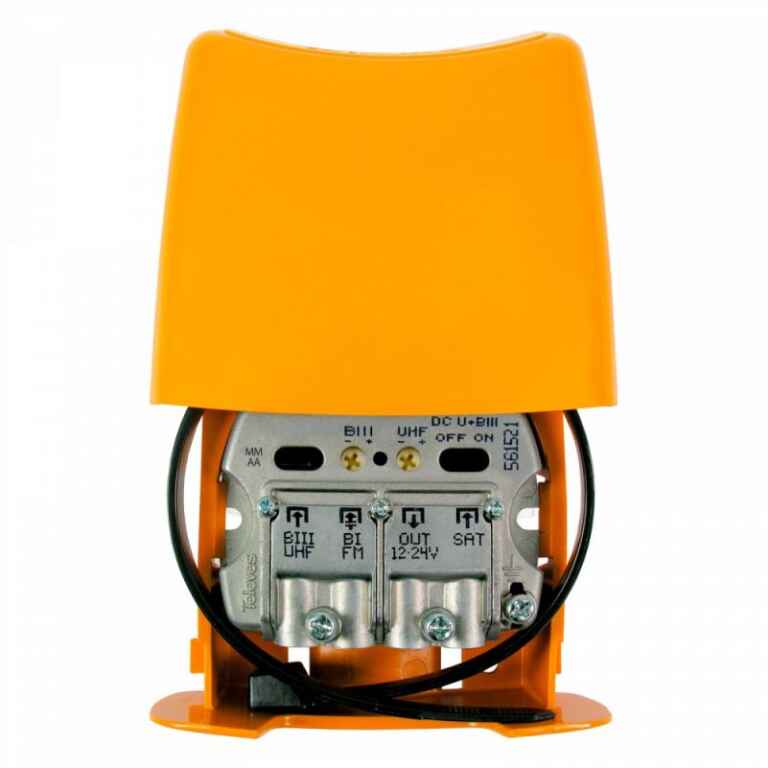

Name: Amplifier Mast NanoKom 3e/1s EasyF... | +254720548999
SKU: TELEVES-561521
Price: 11174.00 KES
Availability: InStock

Masthead amplifier for the amplification and combination of terrestrial television and satellite signals coming from several antennas.

LTE700
Equipped with 3 inputs: the BIII/UHF input signal is amplified, whereas the FM and SAT signals are only combined.
Allows DC pass towards the satellite input to power the LNB.

Highlights
Equipped with USOS (User Selectable Output Signal) technology: the installer selects the desired output level, which remains stable. The device automatically adjusts gain according to the input signal variation.
Separate amplification and very low noise figure, thus respecting signal quality
Ultra-small ergonomic design
EasyF connection system
Can be powered in the 12 V-to-24 V range
Fully automated manufacturing, subject to the most stringent quality controls
High-screening Zamak chassis
Features
LTE/5G filter to remove mobile phone interference.?LTE700
ON/OFF switch to allow DC pass towards the UHF input for the powering of a BOSS system
Easy mounting. Equipped with a plastic tie for mast mounting
Resistant ABS-plastic orange case for outdoor installation
Specifications
Bands UHF + BIII BI + FM SAT
Frequency margin MHz 470…694 174…254 47…108 950…2150
Gain dB 28 18 -1.5 -2.5
Gain adjustment range dB AUTO
0 … 15 AUTO
0 … 15 – –
Max.output level dB?V DIN 45004B 108 106 – –
EN 50083 115 113 – –
10 CH DVB-T 94 – – –
2 CH DVB-T – 90 – –
Output level regulation margin dB ? 0…12 ? 0…12 – –
Noise figure dB 2 3 – –
Power supply V /mA 12-24 / 50
Max current through inputs OFF mA 0
ON 40 – –
DC OUT -> DC SAT – – – 300
Protection Level IP 23
Temperature operat. limits ?C -5 … +45
