![Amplifier Mast NanoKom 3e/1s EasyF UHF/UHF[dc]/FImix[dc]...](https://adishnetservices.com/wp-content/uploads/2025/04/amplifier-mast-nanokom-3e1s-easyf-uhfuhf-dc-fimix-dc-1224v-lte700-televes.jpg)

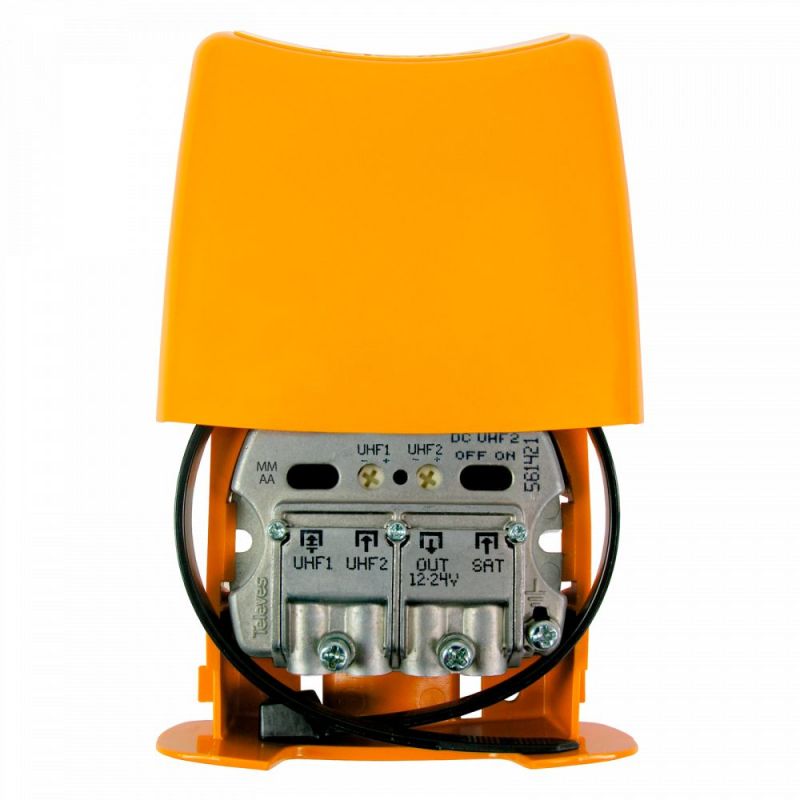

Amplifier Mast NanoKom 3e/1s EasyF UHF/UHF[dc]/FImix[dc]…
KSh10,094.00
Masthead amplifier for the amplification and combination of terrestrial and satellite television signals coming from several antennas. LTE700. Equipped with 3 inputs: the signals on both UHF inputs are amplified, whereas the SAT signal is only combined.
Allows DC pass towards the satellite input to power the LNB.?Televes 561421
Masthead amplifier for the amplification and combination of terrestrial and satellite television signals coming from several antennas.
LTE700.
Equipped with 3 inputs: the signals on both UHF inputs are amplified, whereas the SAT signal is only combined.
Allows DC pass towards the satellite input to power the LNB.
Highlights
Separate amplification and very low noise figure, thus respecting signal quality
Ultra-small ergonomic design
EasyF connection system
Can be powered in the 12 V-to-24 V range
Fully automated manufacturing, subject to the most stringent quality controls
High-screening Zamak chassis
Features
LTE/5G filter to remove mobile phone interference.?LTE700.
ON/OFF switch to allow DC pass towards one of the UHF inputs for the powering of a BOSS system
Easy mounting. Equipped with a clamp for mast mounting
Resistant ABS-plastic orange case for outdoor installation
Specifiactions
Bands UHF 1 UHF 2 SAT
Frequency margin MHz 470…694 470…694 950…2150
Gain dB 28 -2.5
Gain adjustment range dB MANUAL
0 … 20 –
Max. output level DIN 45004B dB 108 –
EN 50083 115 –
10 CH DVB-T – –
Noise level dB 6.5 –
DC Pass DC UHF OFF mA 0
ON – 40 –
DC SAT – – 300
Power supply Vdc/mA 12-24 / 50
Protection index IP 23
Operating temperature ?C -5 … +45
