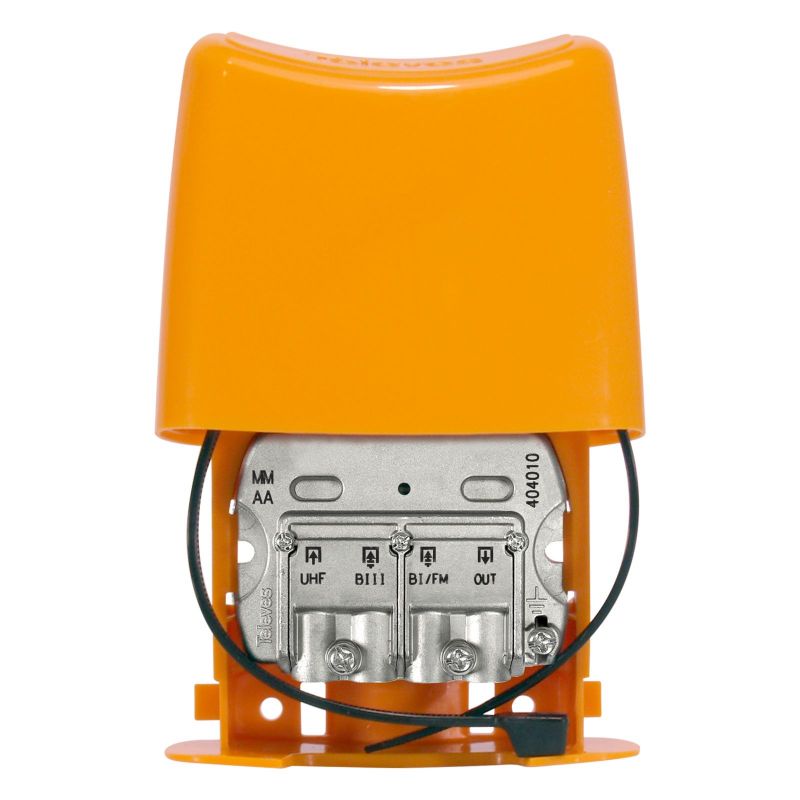

Mast mixer 3e/1s EasyF BI/FM-BIII/DAB-UHF[dc] Televes

Share On:

3-input combiner for several terrestrial bands. Includes mast-mount case for outdoor installation.?Allows current pass from output to UHF input to power a mast amplifier or a BOSS system.?Orange colour. Televes 404010

Terrestrial signal combiner
3 inputs: BI/FM-BIII/DAB-UHF

3-input combiner for several terrestrial bands. Includes mast-mount case for outdoor installation. Allows current pass from output to UHF input to power a mast amplifier or a BOSS system.

Highlights
EasyF system: easy, quick and safe connectorization
High-screening Zamak chassis
Features
DC pass
Resistant ABS-plastic case for outdoor installation
Orange colour
?

EasyF connection system: simplicity and savings
EasyF is an innovative connection concept where the inner conductor of the coaxial cable is directly inserted in the device, thus improving connection reliability. Thanks to the absence of F connectors, the chassis can be reduced and the connection of two cables secured with a a single screw.

Real time savings: speeding the installation is possible without the need for coaxial cable termination. Furthermore, there is no need for screwing the connectors on the device, which is sometimes difficult when there is little room
Connection reliability: the clamp holding the cables prevents the coaxial cable to come off
Cost savings: no additional connectors are required (neither F nor IEC)
Space optimization: inputs and outputs are always on the same side of the device to prevent coaxial cables from bending, and to make working inside cabinets and register boxes easier
Very easy three-step mounting: only screwing and unscrewing the covers is required to connect both cables:
1. Unscrew the device’s cover to access the connection

2. Insert the previously stripped coaxial cables

3. Close the cover and screw to ensure connection

Learn more about EasyF system reliability
With EasyF, the connection between the coaxial cable and the device is carried out using an automated system for contact insertion of the inner conductor, without any soldering.?

Always as new: the device’s operating life increases when the factor of solder wearing out with time is removed
Failure rate reduction: usually produced as a result of cold soldering joints
Electromagnetic behaviour optimization: for high frequencies
Our commitment with environment is reinforced: pollution caused by the welding process is eliminated and production power consumption is reduced
Specifications
Bands n? BI BIII UHF
Frequency margin MHz 47 … 108 174 … 254 470 … 790
Attenuation IN BI+FM => OUT dB 1.5 > 20 > 40
IN BIII => OUT
IN VHF => OUT > 20 2 > 40
IN UHF => OUT > 40 > 40 2.5
In-Out return losses dB 10 10 10
Max current through inputs mA – – 300
Protection Level IP 23
Temperature operat. limits ?C -5 … +45


https://adishnetservices.com/wp-content/uploads/2023/11/mast-mixer-3e1s-easyf-bifm-biiidab-uhf-dc-televes-300×300.jpg?wpId=83163

Brand

Manufacturer

TELEVES
