Amplifier system for T12 Televes

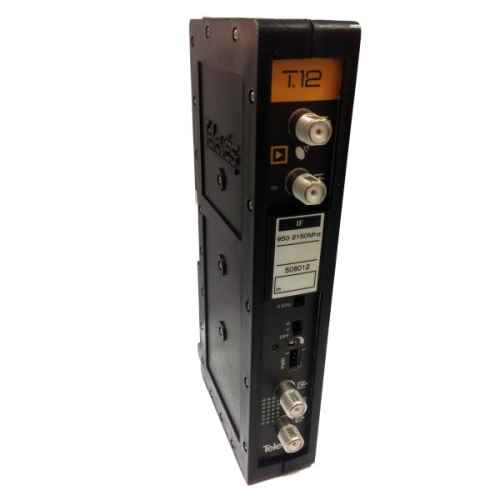

Amplifier. Ref. 508012 Televes.
With the launch of the single-channel amplifiers T.12 model, Televes has achieved a product that provides excellent performance at the time of processing the signal received, with some adjustments easy and precise frequency. These modules carry the LTE Ready hallmark of Televes, which are fully adapted to the Digital Dividend.
Features:
???? Modular and expandable system.
???? High reliability, thanks to its fully robotic manufacturing.
???? Configurable power preamplifiers via ON / OFF switch.
???? Possibility power up to 24 modules by their ref.549812 switching power supply.
???? Specific module for FI.
???? Gain control.
???? Considerable improvement in the shield design.
???? Include the elements necessary for its implementation (bridges, power hoses …)
???? Allow installation both rail and rack.
???? Zamak chassis.
???? Total backward compatibility.
