Threaded Connector “F” 5mm Coaxial Cable

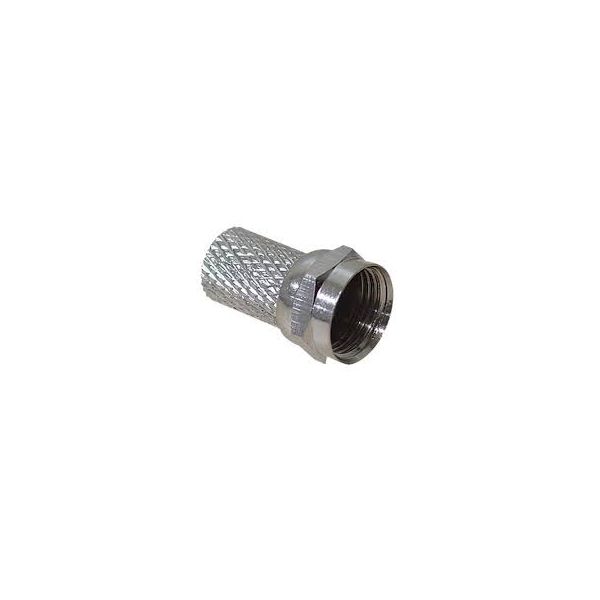

Televes 4127 F Connector for 5mm Coaxial Cable (CXT5, SK0837plus or similar)
75** screw-in F connector for 5mm RG59 coaxial cable, a cable commonly used for CCTV systems or Terrestrial TV distribution. It is a thinner than the usual 6.6mm cable that makes it easier to handle and has a worse shielding.
This F connector is made from nickel plated brass for a great finish and very low losses. It is characterized by its easy insertion on the coaxial cable and a manual threading.
Compatible connector with Televes CXT-5 and SK0837plus coaxial cables, among others…
**If you are an installer, save money by buying the bag of 100 units.
Thread Connector “F” for Coaxial Cable 5mm RG59
What technical specifications does the Televes 4127 F Connector have?
With grounded screw.
With a screening equal to or greater than Class A.
Quick and easy to install.
Made of nickel-plated brass
The electromagnetic behavior optimizes it at high frequencies.
75 ? impedance
Frequency range from 0.3 to 3000 MHz
Insertion loss of -0.12dB (0.3 – 1000 MHz), -0.16dB (1000-2150 MHz), -0.20dB (2150-3000 MHz)
