Product Name: PulsON EXP8/2 Expansion Module

>
Number of Supervision Lines: 8

>
Compliance Standard: Yes, Grade 2

>
Communication Type: Wired

>
Compatibility with Control Panels: PulsON Alarm Control Panel

>
Power Supply Voltage (+/- 15%): 12 V DC

>
Operating Temperature Range: -10°C to 55°C

>
Accessories: Mounting plugs

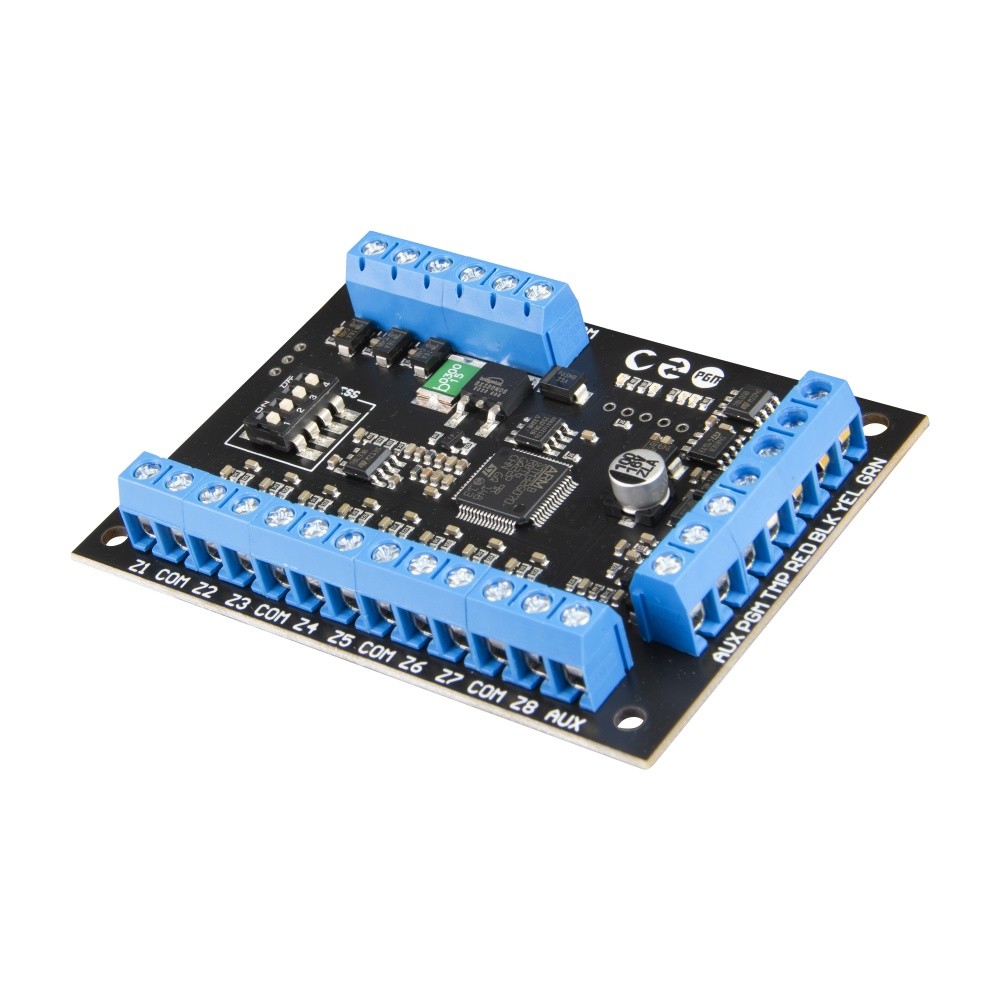

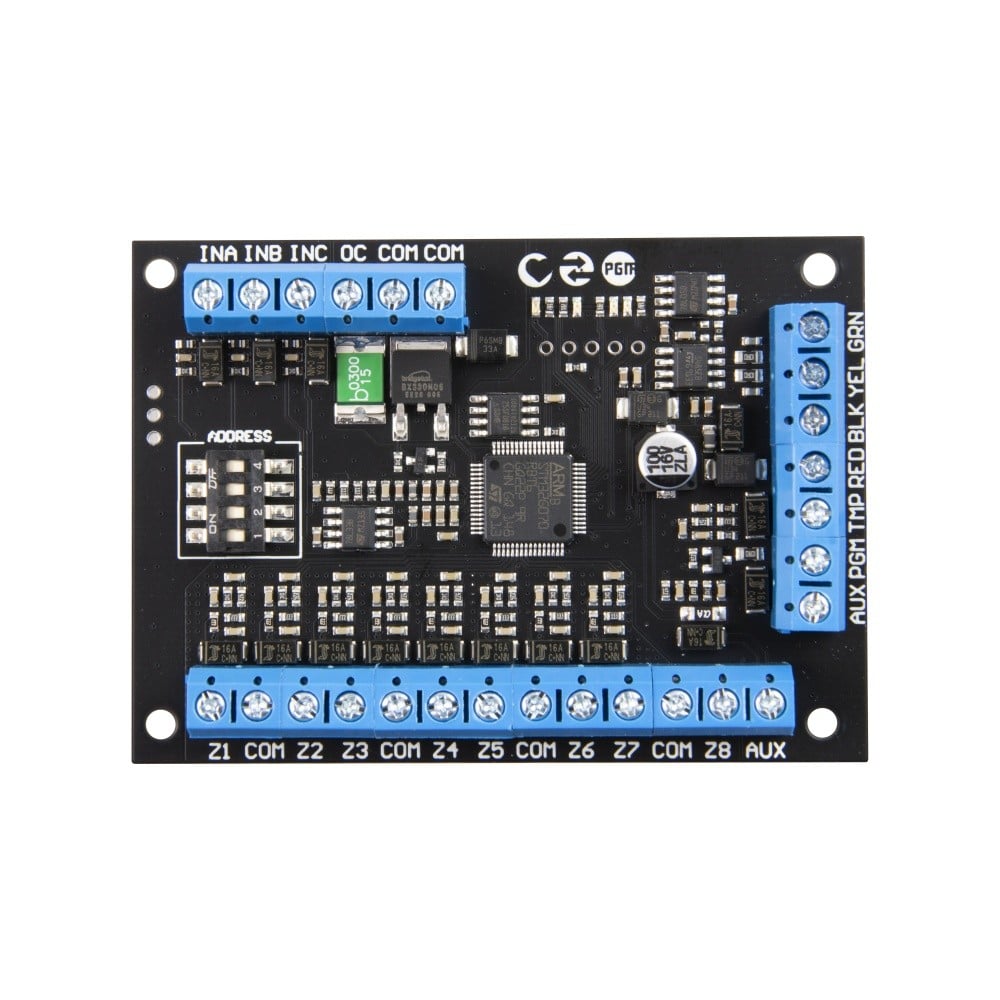

The PulsON
EXP8/2 Expansion Module is a state-of-the-art device designed by BCS for
enhancing security systems through increased input capacity. This module
allows the addition of up to 8 alarm input lines, facilitating the connection
of various sensors. It features 3 technical inputs for monitoring additional
power supplies, 2 programmable OC outputs (capable of handling 50 mA and 1A),
and 2 AUX power supply outputs, as well as a sabotage input that detects the
opening of the enclosure. The EXP8/2 ensures high-security standards as it
complies with EN-50131 Grade 2 requirements, which makes it a reliable choice
for sophisticated alarm systems.

This expansion module operates using a wired communication method and is
designed specifically for seamless integration with the PulsON Alarm Central.
It operates effectively within a voltage range of 12 V DC (+/- 15%) and is
optimized for a wide temperature range, from -10°C to 55°C. The inclusion of
mounting pins in the package ensures simple installation, making it
accessible for both professional and DIY setups.
