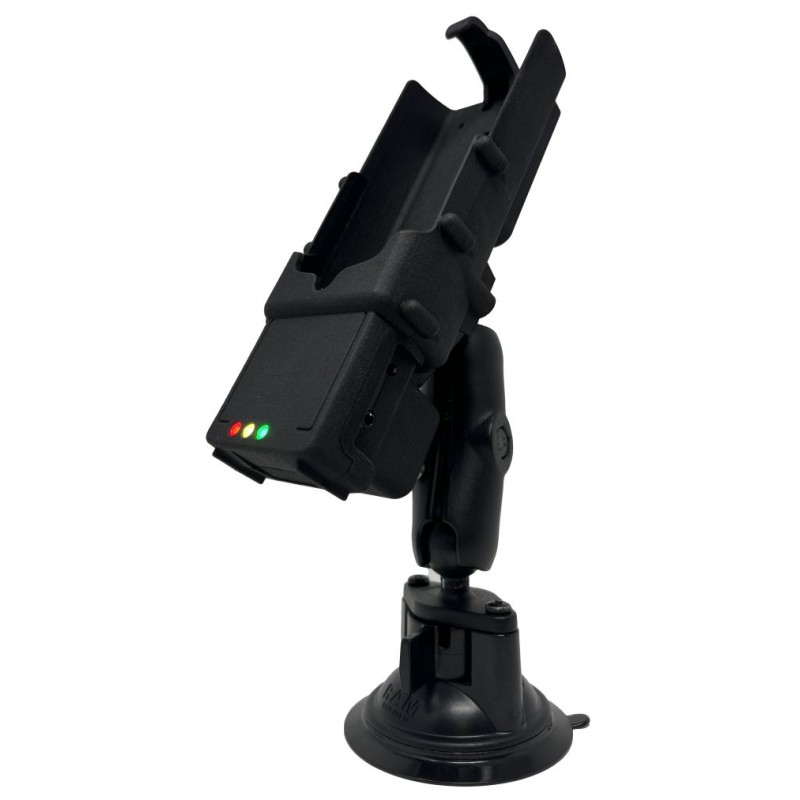

BSG E-Dock for the E-Clip

Capabilities

Docking Station: Includes a TNC connector for connecting an external
antenna.

AES-256 Encryption: Provides user-managed encryption for secure
point-to-point voice telephony and position location information (PLI).

User-Friendly Key Management: Manage encryption keys via an intuitive
graphical user interface (GUI).

Headset/Microphone Compatibility: 3.5 mm jack for flexible headset and
microphone options.

Flexible Charging Options:

USB-C Port
Iridium Extreme OEM Charger
Charge the 9575 while connected to the E-Dock

Visual Indicators: Displays status for power, encryption, and call.

Advanced Audio Processing: Includes audio gain control, echo/noise
cancellation, and silence detection.

Secure Updates: Supports secure firmware updating and boot-loading.

Design

USB-C Connectivity:

Battery recharging
Encryption key loading
Firmware updates

Weight: 90.72 grams

Power Requirements: 5V, 9V / 1A

Management: Software-based

Dimensions (W x H x D): 2.43 x 2.05 x 0.84 inches

Headphone Jack: 3.5 mm TRRS

DC Barrel Connector: For 9575

Encryption: AES-256

Encryption Key: 64 Hex Characters

Casing: Injection-molded ABS plastic with solid locking tabs for attachment
to the bottom of the phone.

Design: Rugged and fully integrated, compatible with the Iridium 9575
PTT.

Additional Features:

Multi-function buttons for power and call management
LED indicators for power, encryption, and call status

Manufacturing: Designed and produced in the U.S.
