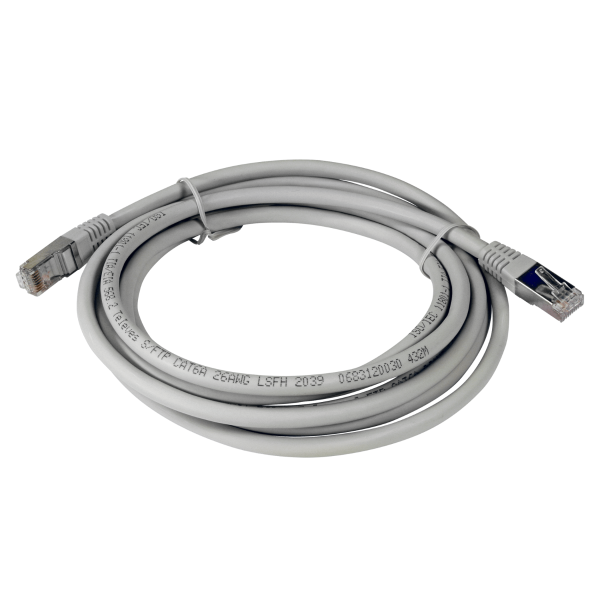

Cat.6A RJ45 S/FTP Patch Cord Copper LSFH Gray 3 Meters
3-meter RJ45 Patch Cord S/FTP Category 6A LSFH Gray Televes 209104
3 meter network patch cord with RJ-45 connector at both ends, type S/FTP Category 6A, with flexible Copper (Cu) conductors and gray LSFH halogen-free cover for indoor use.
The S/FTP cable is characterized by its great immunity to interference, by incorporating individual shielding meshes for each pair and another globally. Being Category 6A, it is a cable that supports 5 Gbps speeds and a 500 MHz bandwidth.
Compatible with PoE/PoE+ technology to power network equipment through the cable itself. Superior quality cable, designed to make connections in high-speed networks.
**
3 Meters LAN Patch Cord S/FTP Category 6A LSFH Indoor Gray
What technical specifications does the Televes 209104 Patch cord have?
Type
S/FTP
Class
Cat 6A
Conductor Material Flexible copper
? (mm) 0.16 ? 0.008
Conductor type AWG 26
Conductor isolation Material Polyethylene
? (mm) 1.1 ? 0.03
Shielding foil Material Aluminium + Polyester
Outer shielding braid Material Aluminium
Outer sheath Material Low Smoke Free of Halogen (LSFH)
? (mm) 6.2 ? 0.2
Thickness (mm) 0.59 ? 0.05
Color Grey
Nominal impedance ? 100 ? 5
Max. conductor resistence ?/Km < 100
Nominal velocity % 79
Working voltage V 300
?
FREQUENCY ATTENUATION NEXT PS-NEXT ELFEXT PS-ELFEXT RETURN LOSS
(MHz) (dB/100m)
1 4.0 65.0 62.0 63.3 60.3 19.0
4 4.2 63.0 60.5 51.2 48.2 19.0
8 5.8 58.2 55.6 45.2 42.2 19.0
10 6.5 56.6 54.0 43.3 40.3 19.0
16 8.2 53.2 50.6 39.2 36.2 18.0
20 9.2 51.6 49.0 37.2 34.2 17.5
25 10.4 50.0 47.3 35.3 32.3 17.0
31,25 11.5 48.4 45.7 33.4 30.4 16.5
62,5 16.4 43.4 40.6 27.3 24.3 14.0
100 20.9 39.9 37.1 23.3 20.3 12.0
200 30.1 34.8 31.9 17.2 14.2 9.0
250 33.9 33.1 30.2 15.3 12.3 8.0
350 40.6 30.6 27.6 12,4 9.4 6.6
450 46.5 28.7 25.7 10.2 7.2 6.0
500 49.3 27.9 24.8 9.3 6.3 6.0
