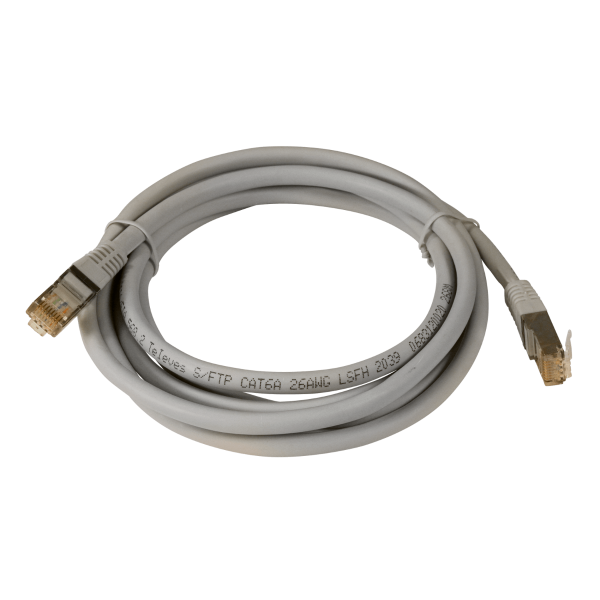

Cat.6A S/FTP Patch Cord RJ45 Copper LSFH Gray 2 Meters
RJ45 Patch Cord 2 Meters S/FTP Category 6A LSFH Gray Televes 209103
Pre-terminated RJ45 network cable of 2 meters, type S/FTP and Category 6A. Patch cord with flexible Copper (Cu) conductors and gray LSFH halogen-free cover.
The S/FTP patch cord is a high-shield cable with individual pair-wise and global cable shielding. In addition, it is Category 6A, so it supports high transmission speeds, up to 5 Gbps with bandwidth up to 500 MHz.
RJ45 patch cord with excellent performance, for use in high-speed data networks. It also supports PoE/PoE+ technology to power network equipment through the cable itself.
**
2 Meters Network Patch Cord S/FTP Category 6A LSFH Indoor Gray
What technical specifications does the Televes 209103?Patch cord have?
Type
S/FTP
Class
Cat 6A
Conductor Material Flexible copper
? (mm) 0.16 ? 0.008
Conductor type AWG 26
Conductor isolation Material Polyethylene
? (mm) 1.1 ? 0.03
Shielding foil Material Aluminium + Polyester
Outer shielding braid Material Aluminium
Outer sheath Material Low Smoke Free of Halogen (LSFH)
? (mm) 6.2 ? 0.2
Thickness (mm) 0.59 ? 0.05
Color Grey
Nominal impedance ? 100 ? 5
Max. conductor resistence ?/Km < 100
Nominal velocity % 79
Working voltage V 300
?
FREQUENCY ATTENUATION NEXT PS-NEXT ELFEXT PS-ELFEXT RETURN LOSS
(MHz) (dB/100m)
1 4.0 65.0 62.0 63.3 60.3 19.0
4 4.2 63.0 60.5 51.2 48.2 19.0
8 5.8 58.2 55.6 45.2 42.2 19.0
10 6.5 56.6 54.0 43.3 40.3 19.0
16 8.2 53.2 50.6 39.2 36.2 18.0
20 9.2 51.6 49.0 37.2 34.2 17.5
25 10.4 50.0 47.3 35.3 32.3 17.0
31,25 11.5 48.4 45.7 33.4 30.4 16.5
62,5 16.4 43.4 40.6 27.3 24.3 14.0
100 20.9 39.9 37.1 23.3 20.3 12.0
200 30.1 34.8 31.9 17.2 14.2 9.0
250 33.9 33.1 30.2 15.3 12.3 8.0
350 40.6 30.6 27.6 12,4 9.4 6.6
450 46.5 28.7 25.7 10.2 7.2 6.0
500 49.3 27.9 24.8 9.3 6.3 6.0
