CATV T0X optical transmitter with automatic gain control 234811 from Televes

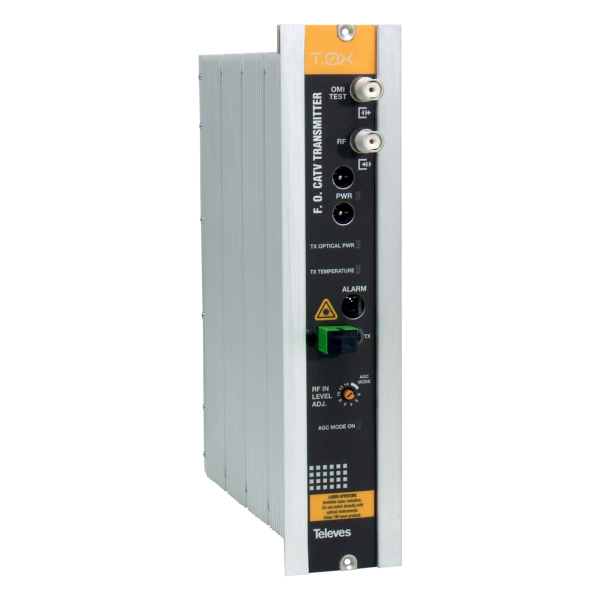

Televes T0X optical transmitter
The Televes optical transmitter T0X 234811 generates an optical signal, in the 1550nm window, modulated by the input RF signal (47 – 1100MHz).
The optical output power is 10dBm.
This transmitter incorporates automatic gain control (CAG).
In addition, it is stable in temperature thanks to its laser temperature control circuit.
The 234811 transmitter is suitable for RFoG solutions and also as an RF Overlay transmitter in GPON networks.
The transmitter 234811 of Televes generates an optical signal, in the 1550nm window, modulated by the input RF signal (47 – 1100MHz).
What technical characteristics does the 234811 transmitter have?
Compatible with MATV: bandwidth up to 1100MHz
OMI test point (Optical Modulation Index)
Leds indicators of optical power and laser temperature
MQW-DFB laser refrigerated
CAG with LED operating indicator
Wide range of input powers
Optical power drop alarm
Conversion of very low equivalent noise
Ease of installation and use
High energy efficiency
Optical connectors SC / APC and type F in RF
What technical specifications does the 234811 transmitter have?
RF parameters Input frequency
MHz 47-1100
Entry level max.
dB?V / dBmV 90/30
Manual gain adjustment dB 0 … 14 (steps 2 dB)
CAG dB control 15
Flatness dB ? 1
CSO (CENELEC 42) note 1 dB 60
CTB (CENELEC 42) note 1 dB 60
Optical Laser type MQW-DFB refrigerated
Wavelength nm 1550 ? 20
Output power dBm 10
General RF Type F female connectors
Optical connector SC / APC
Supply voltage Vdc 12-24
Power consumption mA 360-220
Operating temperature ?C -5 …… .45
