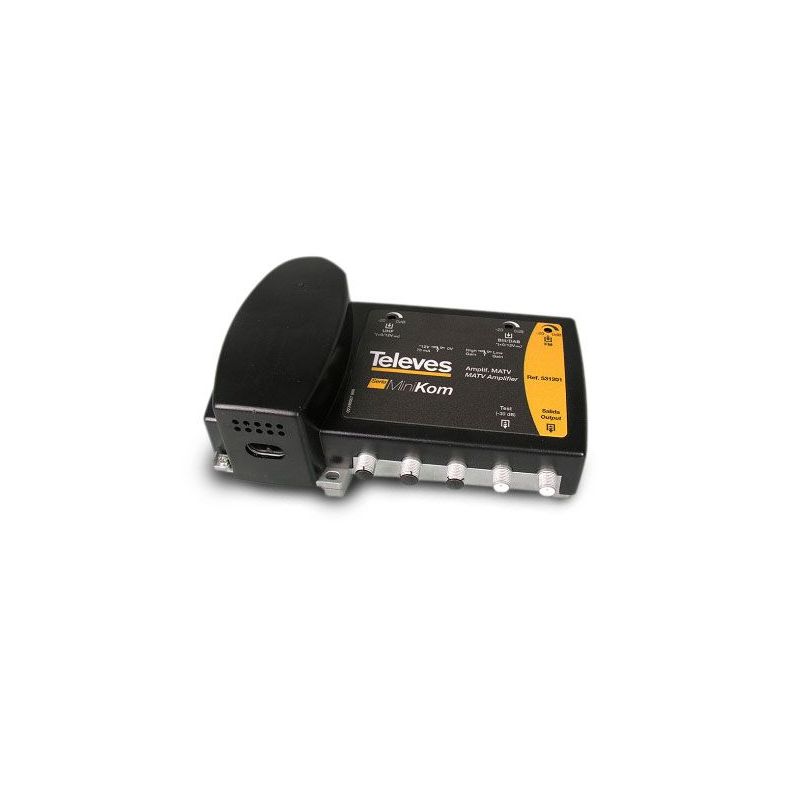

Name: Central amplificadora de l?nea MATV, Minikom BP 1in/1out...
SKU: TELEVES-537302
Availability: InStock

MATV launch amplifiers, designed for small and medium size distribution networks. To be used as MATV headend. Featuring a Low/High gain switch guaranteeing a wide dynamic margin with low noise figure.

Features
Split-band amplification.
20 dB independent attenuators (PIN diode) for each band.
Gain switch: high/low..
Automatic DC power through inputs (selectable).
Test output (-30 dB).
Low power consumption.
Specifications
Reference 537302?
?Inputs Band VHF/UHF ?
?Frequency range MHz 47-454 470-862
?Gain (low/high) dB ?20/30 27/37
?Gain adjustment range ?0-20 0-20
?Output level DIN45004B dB?V ?114 116
EN50083 IMD3 111 113
IMD2 103 –
?Noise figure dB ? 7
?Power on inputs Vdc ? 24
?Max current through inputs mA ? 70
?Max current available mA ? –
?AC Power consumption W ? 7
