Central Amplifier Minikom EasyF 3e/1s 30dB
Central Multiband Minikom EasyF 3e/1s 30dB LTE 5G Televes 562522
Minikom 3-input headend amplifier central (FM-VHF-UHF), for Terrestrial TV systems, with switchable 5G/4G LTE filter. This amplifier offers a gain of 36dB in UHF, 34dB in VHF and 15dB for FM, with a maximum output level of 116dB**V.
Configurable multiband central, with separate amplification. The VHF and UHF inputs have 2 gain ranges, while the FM input has a single amplifier stage. A switch has been incorporated to select the LTE filter (790/700) to eliminate telephone interference. Passage of DC current to the VHF and UHF inputs for feeding preamps or BOSS antennas.

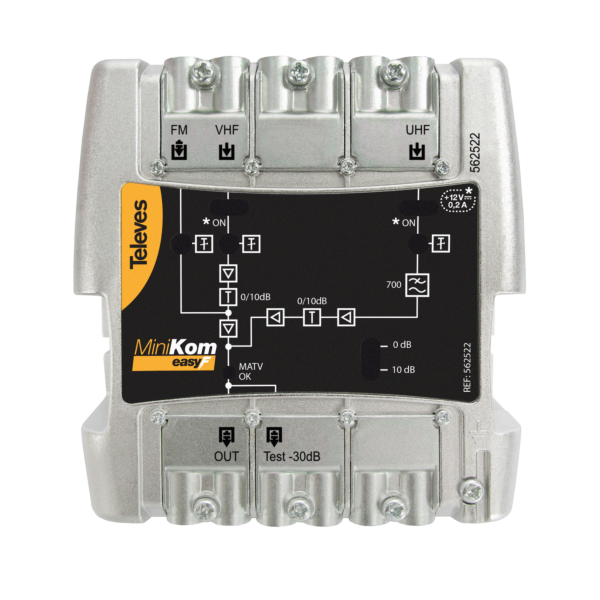

Very compact amplifier (103x103x50mm) with highly shielded chassis, made of Zamak. EasyF connection system: more reliable, simple and economical. Test output (-30dB) to perform checks without interrupting the service. LEDs indicating the existence of output signal and power supply. It can be screwed to the wall.
Minikom EasyF Broadband Amplifier Central for FM-VHF-UHF, 30dB, with LTE 5G 562522 from Televes
?
Bands UHF VHF FM
Frequency margin MHz 470…694 174…400 88…108
Gain 0 dB 36 34 15
10 26 24
Gain adjustment range Manual
0 … 20 Manual
0 … 20 Manual
0 … 20
Max. output level IMD3 (2ch, -35dB) dB?V 123 121 120
DIN 45004B 116 114 113
IMD3 (2ch, -60dB) 113 111 –
IMD2 (2ch, -60dB) – 103 –
Noise figure dB 7 5 6
Test -30
Power supply inputs V 12 12 –
Max. current through inputs mA 200 200 –
400 max.
Mains voltage / frequency V~ /Hz 220 – 230 / 50-60
Total AC consumption (without input powering) OFF W, mA 4.6 / 55
Total AC consumption (with input powering) ON W, mA 10.5 / 110
Protection index IP 20
Operating temperature range ?C -5 … +45
