Central Booster Minikon 2 FI + MATV

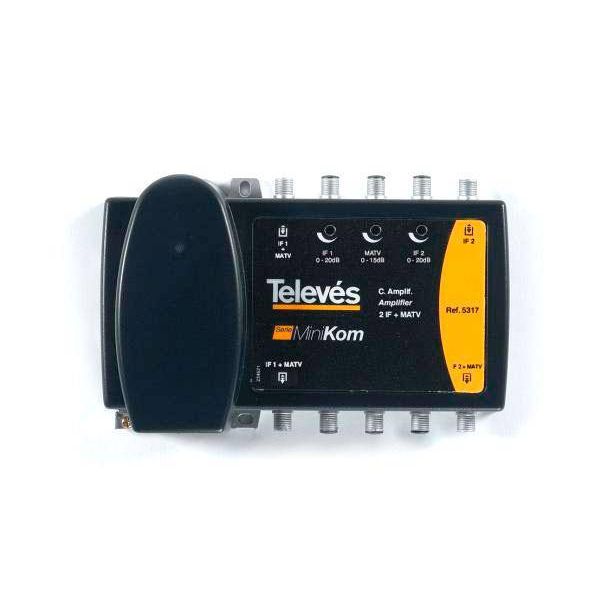

Televes Minikon 2 FI + MATV 5317 Amplifier Control Panel
Central ICT amplifier with two Minikon downcomers for SMATV/CATV systems. It has 2 inputs and two outputs. Its inputs are independent for each satellite downlink. Of the two inputs it has, one is used for VHF/UHF, IF and return channel bands and the other input allows a second IF.
This central has attenuation control and IF equalization in each of its inputs and also MATV. It is ideal for ICT installations where we want to re-amplify the signal and the terrestrial part is common in the two downcomers.
The central has a housing made of zamak, very resistant and provides a high shielding. Its connectors are type F. It also includes LEDs that indicate the output signal. It can be screwed to the wall.
Technical Specifications of the Televes Minikom 30 dB ICT TDT/SAT Dual Line Amplifier 2 Inputs/2 Outputs
Bands ?
RET TERR SAT
Frequency range MHz
5 … 30 47 … 862 950 … 2150
High gain dB
-5 33 38
Low gain dB
-5 30 33
Gain adjustment range dB
— 0 … 20 0 … 20
Noise figure dB
— 5 10
Output level EN50083 IMD3 2tones -60dB dB?V
— 122 124
Output level DIN45004B dB?V
— 118 —
Output level 42Ch Cenelec dB?V
— 99 —
Return losses dB
12 10 —
Equalizator dB
— 0 … 20 0 … 15
Max. power consumption W 9
Max. current mA 180
Input voltage Vac 110 … 230
Mains frequency ? 50 Hz / 60 Hz
Number of inputs ? 2
Number of outputs ? 1
Connectors ? “F” type
Operating temperature ?C -5 … 45
Protection index (IP) ? 20
