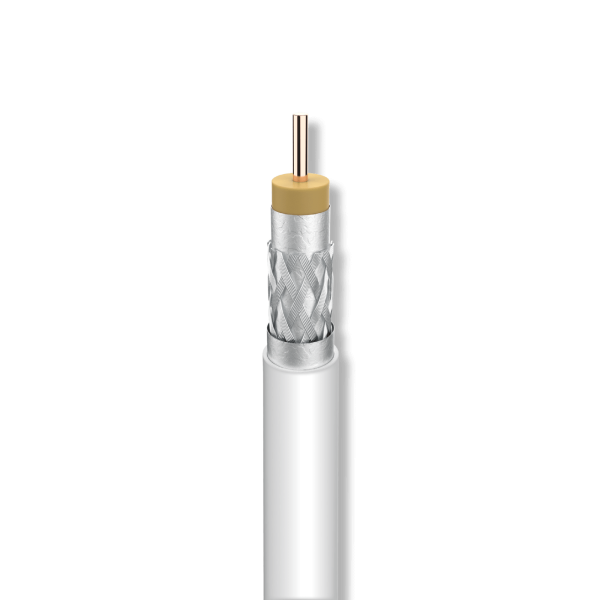

Coaxial Cable SK100 Plus Cu / Inside PVC White 100M (Coaxial Cable)
What are the main characteristics of the SK100 Plus Televes 413601B Coaxial Cable?

Internal conductor made of copper and aluminum mesh
Class A + shielding
Euroclass Eca
PVC outer covering in white
Characteristic impedance of 75 ohm
Available on reels of different footage

What technical specifications does the SK100 Plus Televes 413601B Coaxial Cable have?
Type SK100plus
Standard EN 50117-2-4
EuroClass Eca
Class A+
Inner conductor ? mm 1,02
Material CU
Res. Ohm/Km <22 Dielectric ? mm 4,6 Material PEE Overlapped foil Aluminium + Polyester Braid Material Al Dimensions (Ncx Nsx ?) 16 x 6 x 0.115 Res. Ohm/Km <22 Coverage % 60 2-nd foil Yes Petrol-Jelly No Outer sheath ? mm 6,7 Material PVC Minimum bending radius mm 33,5 Screening attenuation @ 1GHz dB >95
Capacitance pF/m 53
Impedance Ohm 75
Transfer impedance (5-30MHz) mOhm/m ?2,5
Velocity ratio % 82
Attenuations (dB/m)
Frequency (MHz)
5 0,02
47 0,05
90 0,06
200 0,09
500 0,14
800 0,18
1000 0,21
1350 0,24
1750 0,28
2050 0,3
2300 0,32
