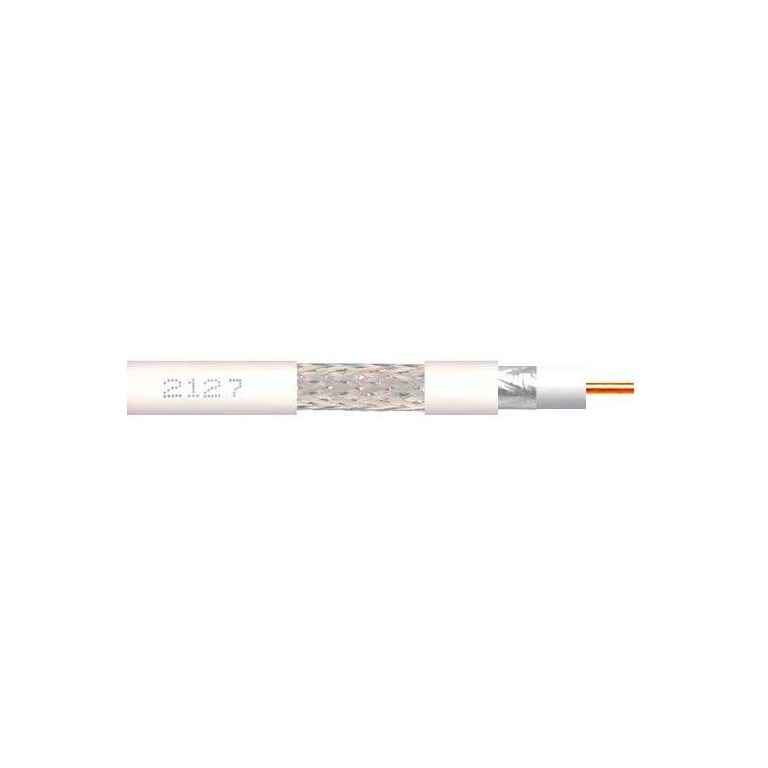

Coaxial Cable CXT1 Cu + Ac / Al PVC Class A BL.100m
KSh13,310.00
CABLE COAX.CXT1 Cu+Ac/Al PVC A BL.100m
?Reference 2127

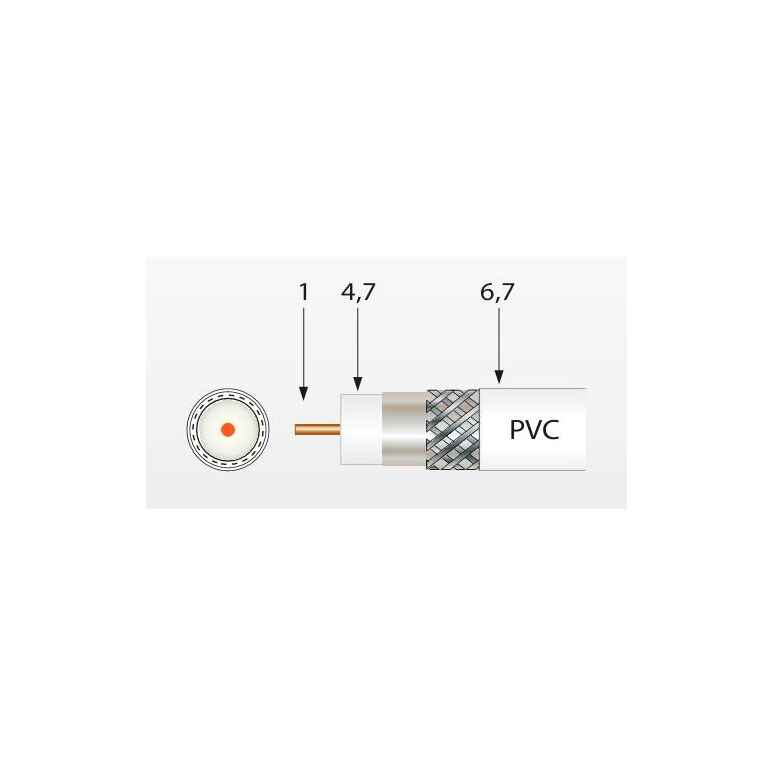

INNER CONDUCTOR – BRAID COMPOSITION CCS (copper-clad steel) – ALUMINIUM
?Televes Model CXT-1
?Inner conductor ? mm ?1
material – CCS (copper-clad steel)
resistance ?/Km <120
?Dielectric ? mm 4,7
material - Foam Polyethylene
?Overlapping shielding foil composition Aluminium +Polyester+Aluminium
?Braid resistance ?/Km <30
material - Aluminium
?Antimigrating film No
?Petrol jelly No
?Outer sheath ? mm 6,7
color - White
material - PVC
?Minimum bending radius mm 33,5
?Screening efficiency dB >75
?Capacitance pF/m 54
?Environmental use Indoor
?Packaging meters/reel m 100
?
Frequency
Attenuation (MHz) 200 dB/m 0,09
500 0,15
800 0,20
1000 0,23
1350 0,27
1750 0,32
2050 0,35
2300 0,37
