Coaxial Cable indoor 0,23 dB, cu 100 meters

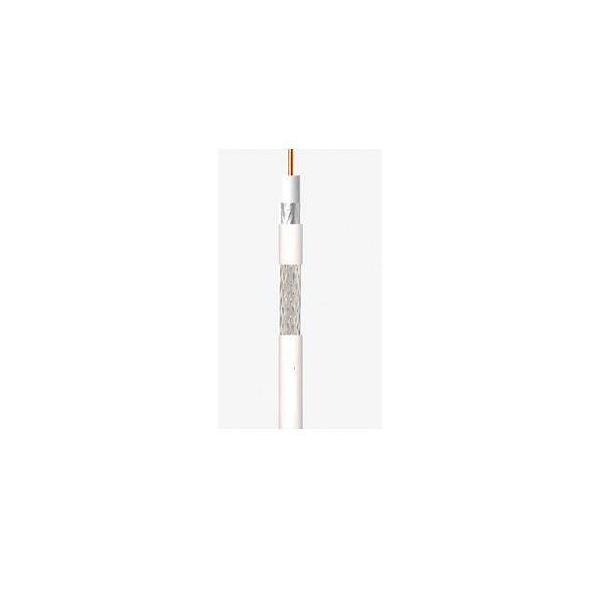

CU/CUSN CXT coaxial cable 5 mm White PVC. 100 meter coil. Ref. 2106 of Televes.
Televes RG-59 coaxial cable, manufactured with high-purity copper and tinned copper mesh, guarantees exceptional signal transmission thanks to its excellent braid coverage. The PVC jacket not only provides durability and strength, but also ensures safe and reliable installation in various conditions. With an outer diameter of only 5mm, this cable is perfect for surface installations, especially in tight spaces where most common 7mm cables are too large. It is recommended for use with 5mm connectors.
This coaxial cable is presented in a 100 meter reel, which facilitates its handling and storage, allowing installers to work with greater comfort and speed. Its white color blends easily into any environment, offering an aesthetic and functional solution for residential and commercial installations. In addition, its Euroclass Eca classification ensures that it meets the safety and performance standards required in the European Union.
With an impedance of 75 Ohms, this cable is ideal for cable TV, satellite and CCTV applications, providing superior picture and sound quality. The choice of high quality materials and its optimized design make this cable a reliable and durable choice for any installation project. Trust Televes for products that combine innovation, quality and performance.
Technical Specifications of the CU/AL CXT 5 mm White PVC coaxial cable. 100 meter coil. Ref. 2106 of Televes.
?
?
?
?
Model ? CXT-5
Type of cable ? RG-59
Standard ? EN 50117-9-2
euroclass ? Eca
Class ? B
Center Conductor Diameter mm 0,8
Center Conductor Material ? Copper (Cu)
Center Conductor Resistance ?/km < 37
dielectric diameter mm 3,4
dielectric material ? Expanded Polyethylene (PEE)
Dielectric Color ? White RAL 9003
inner foil ? Aluminum + Polyester + Aluminum
Mesh material ? Tinned copper with Aluminum+Magnesium (TCCAM)
Mesh dimensions: no. groups of wires (Nc) ? 16
Mesh dimensions: number of threads per group (Ns) ? 4
Mesh dimensions: wire diameter (?) mm 0,115
Mesh Resistance ?/km < 35
Mesh Coverage % 55
2nd sheet of armor ? No
2nd shielding sheet glued to the dielectric ? No
Petro Gel ? No
anti-migration sheet ? No
Outer Cover Diameter mm 5
Outer sheath material ? PVC
minimum bend radius mm 25
Transfer impedance (5-30MHz) m?/m < 15
Shielding at 1GHz dB > 75
spark test Vac 3000
Ability pF/m 53
Impedance ? 75
Propagation velocity min. % 82
Operating temperature ?C -30 … 70
frequencies ? 5 MHz 47 MHz 54 MHz 90 MHz 200 MHz 500 MHz 698 MHz 800 MHz 862 MHz 950 MHz 1000 MHz 1220 MHz 1350 MHz 1750 MHz 2050 MHz 2150 MHz 2200 MHz 2300 MHz 2400 MHz 3000 MHz
Attenuation (typ.) dB/m 0,02 0,06 0,06 0,07 0,11 0,18 0,22 0,23 0,24 0,25 0,25 0,29 0,3 0,34 0,37 0,38 0,4 0,4 0,4 0,45
