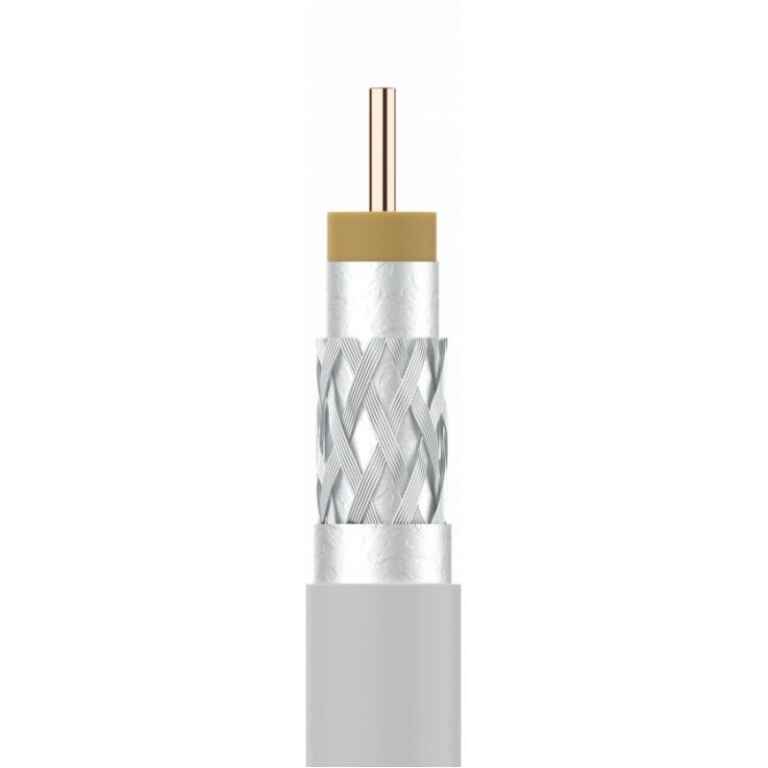

Coaxial cable SK100plus PVC 18VAtC Eca Class A+ 250m White…
KSh52,030.00
250m plastic coil Coaxial cable with live made of copper and aluminum mesh (Cu/Al) with good braiding coverage (60%). It is triple shielded (TSH) so it has a second extra sheet of extra armor. An 18VAtC cable, PVC cover. Televes 413602
Coaxial cable with live made of copper and aluminum mesh (Cu/Al) with good braiding coverage (60%). It is triple shielded (TSH) so it has a second extra sheet of extra armor. An 18VAtC cable, PVC cover.
Stands out for
Internal conductor made of copper and aluminum mesh
Class A + shielding
Euroclass Eca
Features
Plastic coil 250m.
Outer PVC cover in white
Characteristic impedance of 75 ohm
Available in reels of different footage
?
Coaxial trishield (TSH) Class A + cable
With 3 layers of shielding (trishield), these cables are those that provide greater immunity to interference, as they have a very high screening. Its use is recommended in routes with high levels of electromagnetic noise.
Their constructive properties make them Class A +, complying with the EN 50117 standard:
At 5 – 30 MHz => TI <2.5 m? / m
At 5 - 1000 MHz => SA> 95 dB
At 1000 – 2000 MHz => SA> 85 dB
At 2000 – 3000 MHz => SA> 75 dB
Where, the transfer impedance (TI) defines the effectiveness of the shielding at low frequencies, and the shielding attenuation (SA) defines it between 30 and 3000MHz.
Specifications
Type SK100plus
Standard EN 50117-2-4
EuroClase Eca
Class A+
Central conductor ? mm 1.02
Material Cu
Res. Ohm/Km <22
Dielectric ? mm 4.6
Material PEE
Inner sheet Aluminium + Polyester
Mesh Material Al
Dimensions (Ncx Nsx ?) 16 x 6 x 0.12
Res. Ohm/Km <22
% coverage 60
2nd Shield Shield Yes
Petro-Gel No
Outside coverage ? mm 6.7
Material PVC
Minimum bend radius mm 33.5
Shield at 1GHz dB >95 (100 typ.)
Capacity pF/m 54
Impedance Ohm 75
Transfer Impedance (5-30MHz) mOhm/m ?2.5
Propagation speed min. % 82
Attenuations (dB / m)
Frequency (MHz)
5 0.02
47 0.05
90 0.06
200 0.09
500 0.14
800 0.18
1000 0.21
1350 0.24
1750 0.28
2050 0.3
2300 0.31
