Coaxial Cable T100plus Class A Cu/Cu 214122 Bobine 250m Telev?s

Name: Coaxial Cable T100plus Class A Cu/Cu 214122 Bobine 250m Telev?s | +254720548999
SKU: TEL214122C

**

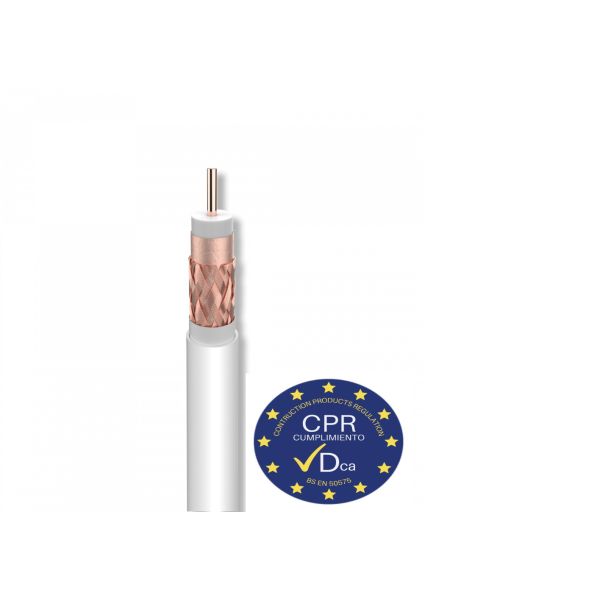

Bobine Coaxial Cable 250m Class A Cu/Cu

Coaxial cable with excellent braiding coverage (75%). Both the live and the mesh are made of copper. The shielding is double and incorporates an antimigration sheet, to avoid the migration of the cover additives and external humidity.

This cable is screened in class A. Euroclass Dca-s2, d2, a1.

They comply with the EN 50117 standard.

Technical Specifications Coaxial Cable Class A Cu / Cu bobine 250 meters 214122
Type ? T-100plus
Standard ? EN 50117-2-4
Euroclass ? Dca
Euroclass: Emission of opaque fumes ? s2
Euroclass: Falling Flammable Particles ? d2
Euroclass: Acidity ? a1
Class ? A
Central Conductor Diameter mm 1,13
Central Conductor Material ? copper (Cu)
Central conductor resistance ?/km < 20 Dielectric Diameter mm 4,8 Dielectric Material ? Expanded polyethylene (PEE) Dielectric Color ? White RAL 9003 Inner foil ? copper+Polyester Mesh Material ? copper Mesh dimensions: number of yarns groups (Nc) ? 16 Mesh Dimensions: number of threads per group (Ns) ? 8 Mesh dimensions: wire diameter (?) mm 0,11 Mesh resistance ?/km < 12 Mesh coverage % 73 2nd shielding sheet ? No 2nd shielding sheet glued to the dielectric ? No Petro-Gel ? No Anti-migration sheet ? Yes Outer cover diameter mm 6,6 Material Outer cover ? LSFH Thickness Outer Cover mm 0,3 Minimum bend radius mm 33 Transfer impedance (5-30MHz) m?/m < 5 1GHz shielding dB > 85
Spark Test Vac 3000
Capacity pF/m 55
Impedance ? 75
Propagation velocity min. % 82
Operating temperature ?C -25 … 70
Frequencies ?
5 MHz 47 MHz 54 MHz 90 MHz 200 MHz 500 MHz 698 MHz 800 MHz 862 MHz 950 MHz 1000 MHz 1220 MHz 1350 MHz 1750 MHz 2050 MHz 2150 MHz 2200 MHz 2300 MHz 2400 MHz 3000 MHz
